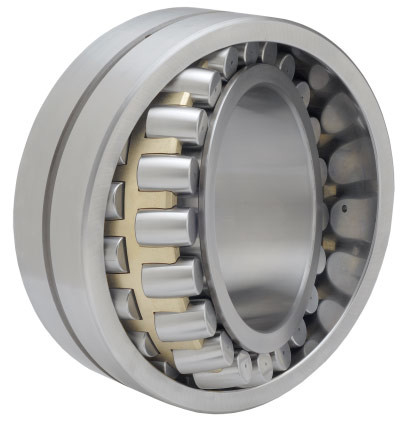

C4022 110*170*60mm Double Row Spherical Roller Bearing Self Aligning

1
MOQ
USD
Price
C4022 110*170*60mm Double Row Spherical Roller Bearing Self Aligning
Features Gallery Product Description Request A Quote
Features
Specifications
Material: GCr15SiMn
Accuracy: P5 Or P4
Market: Europe Or USA
Code: C4022
Application: Continuous Casters Fans And Blowers Crushers And Grinding Mills Industrial Transmissions Conveyors Hydraulic Motors And Pumps Wind Turbines Paper Machines
Structurer: Single Row Spherical Roller Bearing
Highlight:

radial roller bearing

,

brass cage bearings
Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: C4022
Payment & Shipping Terms
Packaging Details: Singlebox
Delivery Time: 7-35 days
Payment Terms: T/T
Supply Ability: 10000PCS/WEEK
Product Description

Carb Toroidal Roller Bearing



CARB toroidal roller bearings have one row of long, slightly barrel-shaped symmetrical rollers and torus-shaped raceway profiles (fig. 1). They are non-locating bearings and accommodate exclusively radial loads. CARB bearings are often used to replace the non-locating spherical roller bearing in a locating/non-locating bearing arrangement.

Bearing features

  • Accommodate misalignment
    CARB bearings are self-aligning like spherical roller bearings or self-aligning ball bearings (fig. 2).
  • Accommodate axial displacement
    CARB bearings compensate for thermal expansion of the shaft like cylindrical or needle roller bearings (fig. 3).
  • Wide assortment of dimension series
    CARB bearings are available with the same boundary dimensions as corresponding spherical roller bearings, self-aligning ball bearings, cylindrical roller bearings and needle roller bearings (fig. 4)
  • Long service life
    The special roller profile prevents stress peaks at the roller ends (fig. 5).
  • Low friction
    Self-guiding rollers keep friction and frictional heat at low levels (fig. 6).
  • Improved wear resistance
    The complete standard assortment is of the upgraded SKF Explorer class.
  • Low noise
    CARB bearings can reduce noise and vibration levels, for example, in paper machines and fans.

Long bearing system life

CARB bearings provide benefits in self-aligning bearing arrangements (fig. 7). With a CARB bearing in the non-locating position, there are no internally induced axial forces, which results in multiple benefits:
  • Less load extends the service life.
  • The bearings run cooler, the lubricant lasts longer and maintenance intervals can be extended.
  • Noise and vibration levels can be reduced.

More Part Number of CARB Bearing:

Explorer bearing d D B
C 3026 K * 130 200 52
C 3026 * 130 200 52
C 4026 * 130 200 69
C 4026 K30 * 130 200 69
C 4026 V * 130 200 69
C 4026 K30V * 130 200 69
C 4026-2CS5V/GEM9 * 130 200 69
C 4126 K30V/VE240 * 130 210 80
C 4126-2CS5V/GEM9 * 130 210 80
C 4126 V/VE240 * 130 210 80
C 2226 K * 130 230 64
C 2226 * 130 230 64
C 2326/VE240 * 130 280 93
C 2326 K/VE240 * 130 280 93
C 3028 * 140 210 53
C 3028 K * 140 210 53
C 4028 V * 140 210 69
C 4028 K30V * 140 210 69
C 4028-2CS5V/GEM9 * 140 210 69
C 4128-2CS5V/GEM9 * 140 225 85
C 4128 K30V/VE240 * 140 225 85
C 4128 V/VE240 * 140 225 85
C 2228 K * 140 250 68
C 2228 * 140 250 68
C 3030 KMB * 150 225 56
C 3030 MB * 150 225 56
C 3030 KV * 150 225 56
C 3030 V * 150 225 56
C 4030 K30V * 150 225 75
C 4030-2CS5V/GEM9 * 150 225 75
C 4030 V * 150 225 75
C 3130 * 150 250 80
C 3130 K * 150 250 80
C 4130 V * 150 250 100
C 4130-2CS5V/GEM9 * 150 250 100
C 4130 K30V * 150 250 100
C 2230 K * 150 270 73
C 2230 * 150 270 73
C 3032 * 160 240 60
C 3032 K * 160 240 60
dimensions Bearing No. Mass
mm cylindrical bore tapered bore
d D B Kg
200 310 82 C3040 C3040K 22
200 310 109 C4040V C4040VK30 30.5
200 340 112 C3140 C3140K 40
200 340 140 C4140V C4140K30V1 54
220 340 90 C3044 C3044K 29
220 340 118 C4044V C4044K30V1 40
220 370 120 C3144 C3144K 51
220 400 108 C2244 C2244K 56.5
240 360 92 C3048 C3048K 31.5
240 400 128 C3148 C3148K 63
260 400 104 C3052 C3052K 46
260 440 144 C3152 C3152K 87
280 420 106 C3056 C3056K 50
280 460 146 C3156 C3156K 93
300 460 118 C3060M C3060KM 71
300 460 160 C4060M C4060K30M 95
300 500 160 C3160 C3160K 120
320 480 121 C3064M C3064KM 76.5
320 540 176 C3164M C3164KM 160
340 520 133 C3068M C3068KM 100
340 580 190 C3168M C3168KM 205
360 480 90 C3972M C3972KM 44
360 540 134 C3072M C3072KM 105
360 600 192 C3172M C3172KM 215
380 520 106 C3976MB C3976KMB 65.5
380 560 135 C3076M C3076KM 110
380 620 194 C3176MB C3176KMB 230
400 540 106 C3980MB C3980KMB 69
400 600 148 C3080M C3080KM 140
400 650 200 C3180MB C3180KMB 275
420 560 106 C3984M C3984KM 71
420 60 150 C3084M C3084KM 150
420 700 224 C3184M C3184KM 340
440 600 118 C3988MB C3988KMB 98
440 650 157 C3088MB C3088KMB 185
440 720 226 C3188MB C3188KMB 360
460 620 118 C3992MB C3992KMB 100
460 680 163 C3092M C3092KM 200
460 760 240 C3192M C3192KM 430
460 760 300 C4192M C4192K30M 535
480 650 128 C3996M C3996KM 120
480 700 165 C3096M C3096KM 210
480 790 248 C3196MB C3196KMB 490
500 670 128 C39/500M C39/500KM 125
500 720 167 C30/500M C30/500KM 225
500 830 264 C31/500M C31/500KM 250
500 830 325 C41/500MB C41/500K30MB 720
530 710 136 C39/530M C39/530KM 150
530 780 185 C30/530KM C30/530KM 295
530 870 272 C31/530M C31/530KM 630
560 750 140 C39/560M C39/560KM 170
560 820 195 C30/560M C30/560KM 345
560 920 280 C31/560MB C31/560KMB 750
600 800 150 C39/600M C39/600KM 210
600 870 200 C30/600M C30/600KM 390
600 980 300 C31/600MB C31/600KMB 870
630 850 165 C39/630M C39/630KM 270
630 920 212 C30/630M C30/630KM 465
630 1030 315 C31/630MB C31/630KMB 1040
670 900 170 C39/670M C39/670KM 310
670 980 230 C30/670M C30/670KM 580
670 1090 336 C31/670MB C31/670LMB 1230
710 950 180 C39/710M C39/710KM 355
710 1030 236 C30/710M C30/710KM 645
710 1030 315 C40/710M C40/710K30M 860
710 1150 345 C31/710MB C31/710KMB 1410
750 1000 185 C39/750M C39/750KM 405
750 1090 250 C30/750MB C30/750KMB 770
750 1220 365 C31/750MB C31/750KMB 1700
800 1060 195 C39/800M C39/800KM 470
800 1150 258 C30/800MB C30/800KMB 860
800 1280 375 C31/800MB C31/800KMB 1870
850 1120 200 C39/850M C39/850KM 530
850 1220 272 C30/850MB C30/850KMB 1050
850 1360 400 C31/850MB C31/850KMB 2260
900 1180 206 C39/900MB C39/900KMB 580
900 1280 280 C30/900M C30/900KM 1150
950 1250 224 C39/950M C39/950KM 745
950 1360 300 C30/950MB C30/950KMB 1410
1000 1420 308 C30/1000MB C30/1000KMB 1570
1000 1580 462 C31/1000MB C31/1000KMB 3470
1060 1400 250 C39/1060MB C39/1060KMB 1040
1180 1540 272 C39/1180M C39/1180KM 1340
1250 1750 375 C30/1250MB C30/1250KMB 2740

Benefits

  • Improved machine reliability
  • Significantly longer bearing service life
  • On the non-locating side without major modifications
  • Eliminates stick-slip
  • Improved resistance to surface Upgraded self-aligning SKF Explorer bearings damage
  • Reduced noise and vibration levels
  • Reduced operating temperatures



Industry & Application

  • Continuous casters
  • Fans and blowers
  • Crushers and grinding mills
  • Industrial transmissions
  • Conveyors
  • Hydraulic motors and pumps
  • Wind turbines
  • Paper Machines
