6311-H-T35D Ultra-Low Temperature Bearing for Liquid Oxygen Pump

Minimum Order Quantity : 1 PCS Price : Ask
Packaging Details : Single box Delivery Time : 5-35 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 1000PCS/Week
Place of Origin: Luoyang Brand Name: MONTON
Certification: ISO9001 Model Number: 6311-H-T35D

Product Description

6311-H-T35D Ultra-Low Temperature Bearing for Liquid Oxygen Pump



Description Dimension Loading(KN) Speed
(r/min)
Bearing d D B rsmin Cr Cor
6311-H-T35D 55 120 29 2 76 47.5 10000

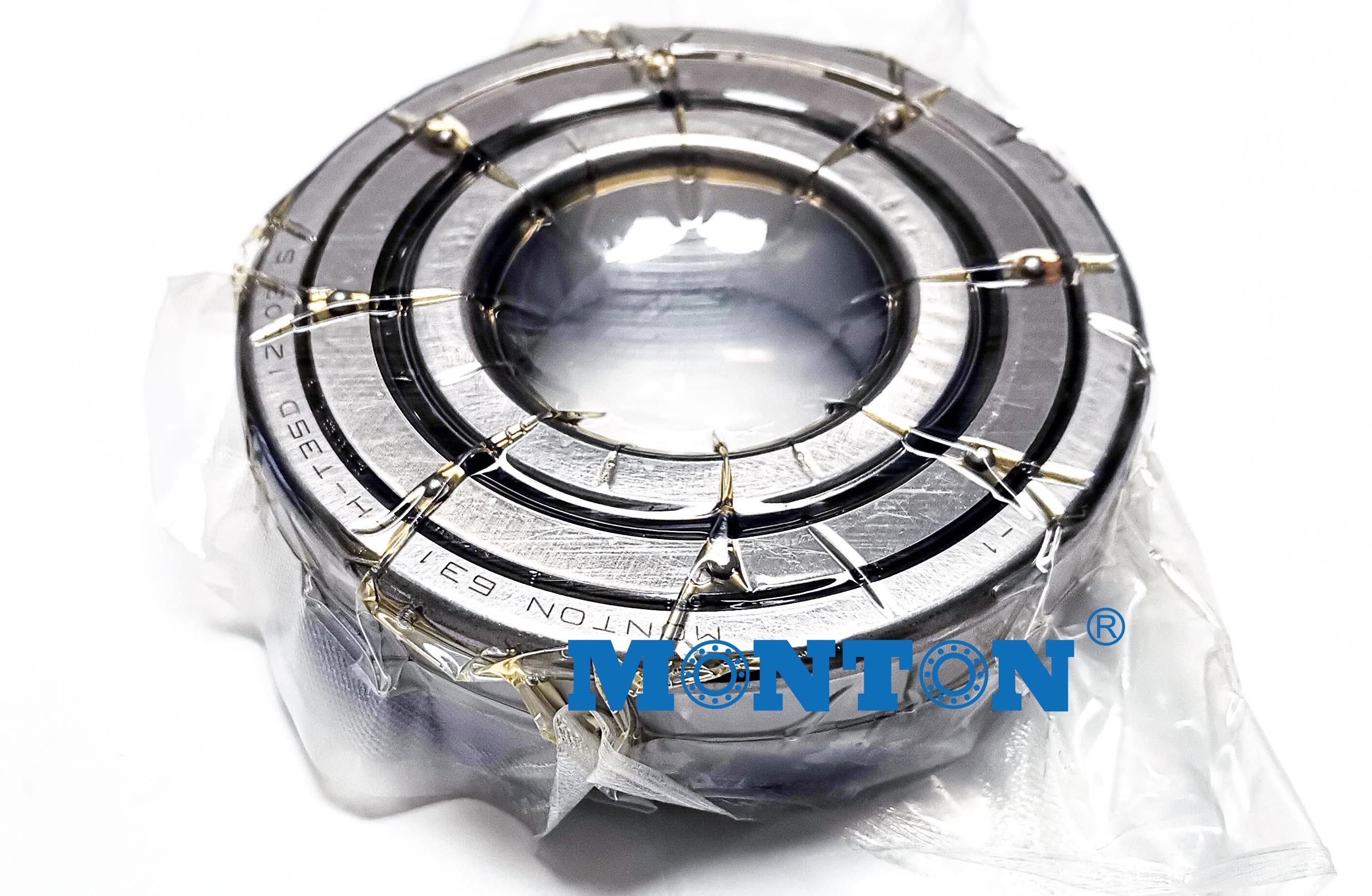

6311-H-T35D  Ultra-Low Temperature Bearing for Liquid Oxygen Pump 0

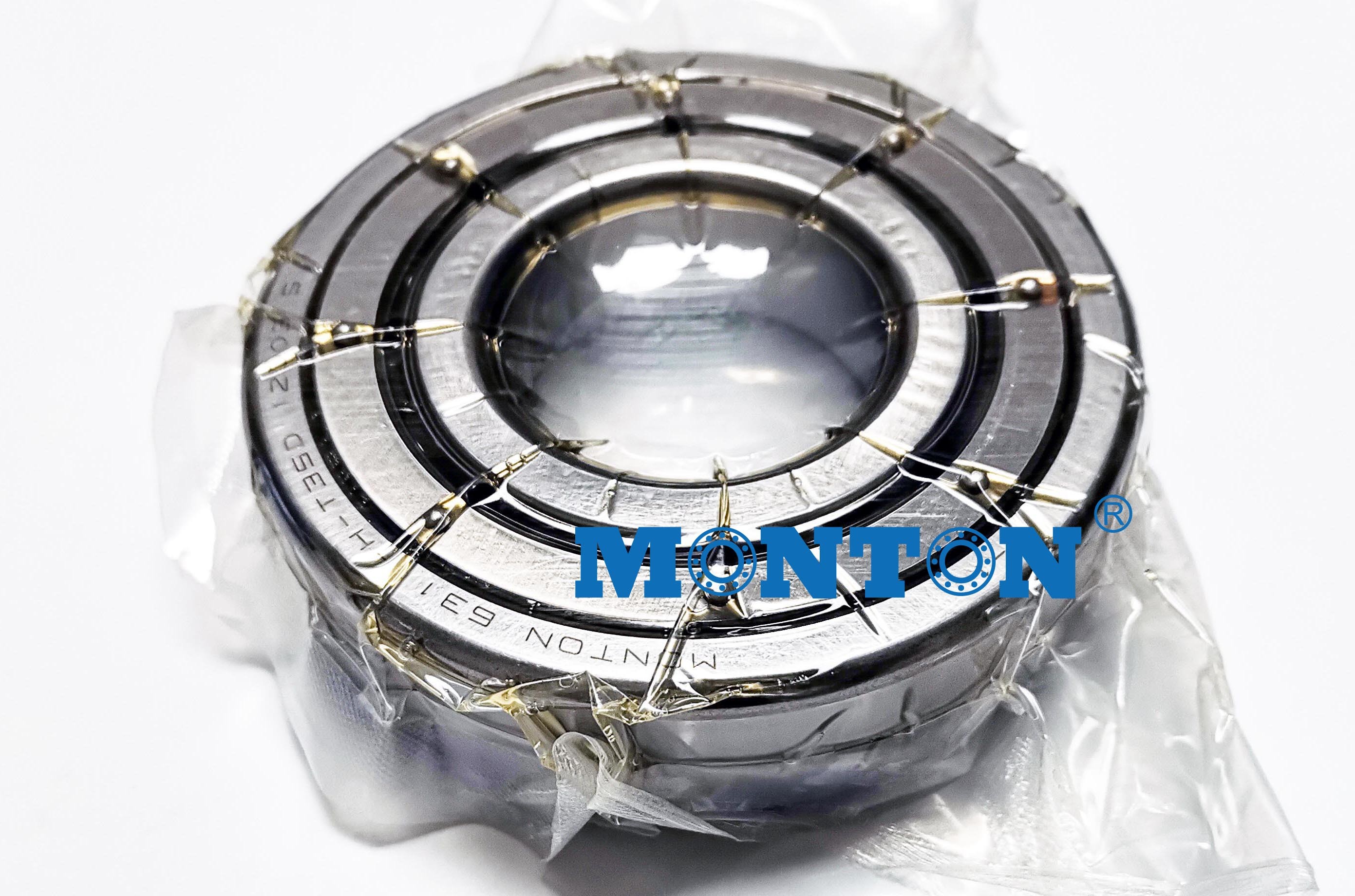

6311-H-T35D  Ultra-Low Temperature Bearing for Liquid Oxygen Pump 1

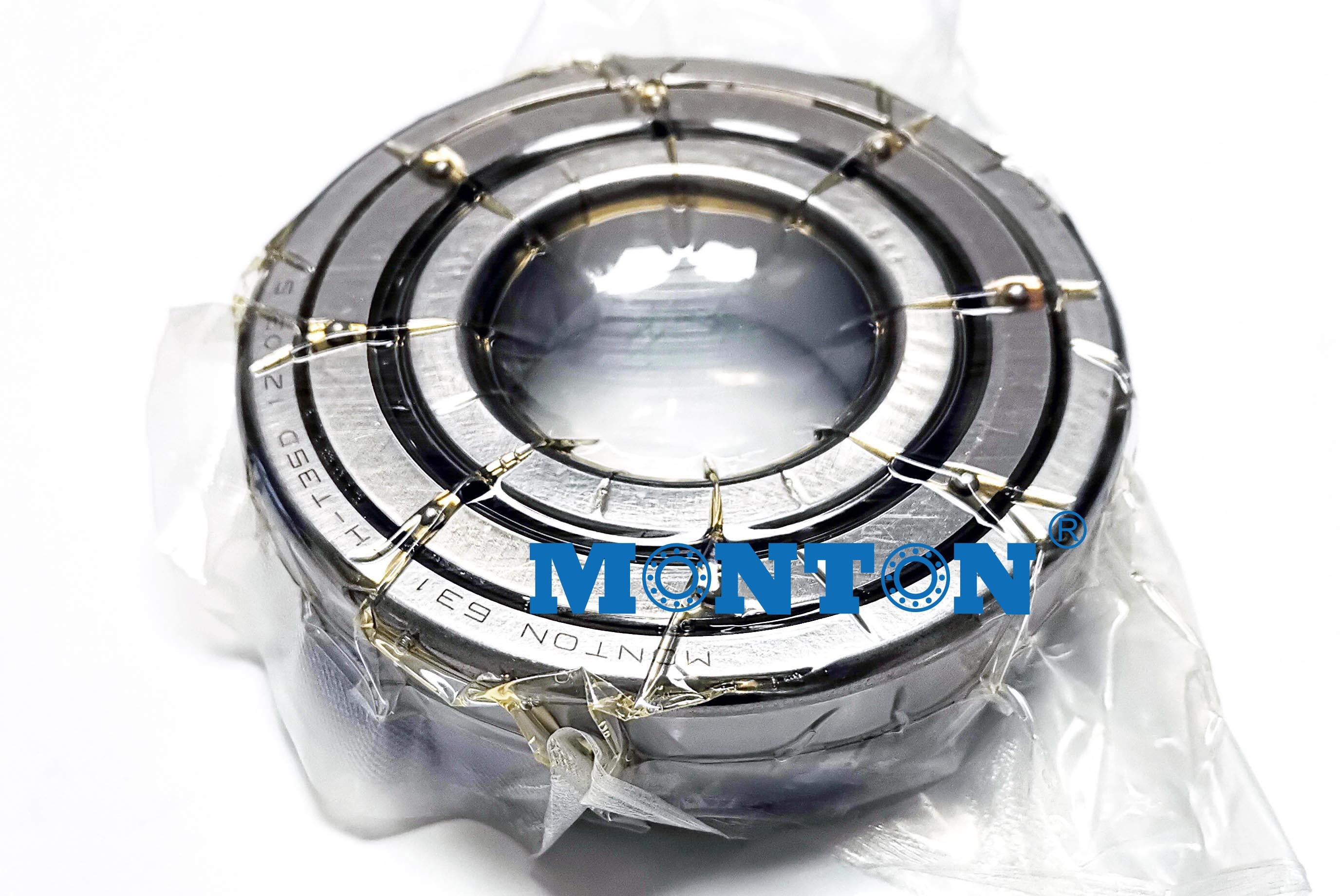

6311-H-T35D  Ultra-Low Temperature Bearing for Liquid Oxygen Pump 2





LNG (Liquefied Natural Gas) pumps are used for receiving and discharging LNG to road tankers and storage tanks. For these applications the bearing operating conditions are very tough, as the temperature can reach -162°C, and the bearing must run without external lubrication. MONTON has designed a new bearing, LNG Pump Bearings, to cope with these demanding performance requirements.



LNG pump bearings including:

1.Angular contact ball bearings

2.Deep groove ball bearings

3.Cylindrical roller bearings





Operating Conditions:
› Speed: 1160 rpm – 3600 rpm
› Gas temperature: –196° C up to 0° C
› Mainly axial load
› Very poor lubrication



Condition Description

Arduous Environments

Corrosive Environment

High Speed

Low temperature

Industry

Chemical and Pharmaceutical

Petrochemical



Features

Stainless steel inner and outer rings

Stainless steel rolling elements

2 pieces riveted fluororesin cage



Benefits

Corrosion resistant

Self-lubricating cage

High speed (up to 3600 rpm)

Extended life
