LL686947 / LL686910D Precise Sealed Roller Bearings With Custom Material
Contact Person : Dave-Lee
Phone Number : +86 13213639372
|D:||447.675||Keywords:||China Precision Tapered Roller Bearings Suppliers|
tapered ball bearing,
anti friction bearing
Cone Part Number
Cup Part Number
|187.44 lb85.02 Kg|
Ab - Cage-Cone Frontface Clearance
|0.21 in5.3 mm|
d - Bore
|12.5000 in317.500 mm|
D - Cup Outer Diameter
|17.6250 in447.675 mm|
B - Cone Width
|3.3750 in85.725 mm|
C - Double Cup Width
|5.7500 in146.050 mm|
T - Bearing Width across Cones
|7.1249 in180.972 mm|
|R - Cone Backface "To Clear" Radius1||0.14 in3.600 mm|
|r - Cup Frontface "To Clear" Radius2||0.06 in1.5 mm|
db - Cone Backface Backing Diameter
|13.43 in341.10 mm|
Da - Cup Frontface Backing Diameter
|16.87 in428.50 mm|
Aa - Cage-Cone Backface Clearance
|0.19 in4.8 mm|
|C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)3||97800 lbf435000 N|
|C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)4||656000 lbf2920000 N|
|C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)5||170000 lbf757000 N|
|Ca90 - Dynamic Thrust Rating (90 million revolutions)6||56000 lbf249000 N|
|K - Factor7||1.74|
|e - ISO Factor8||0.7|
|Y1 - ISO Factor9||0.961.43|
|Y2 - ISO Factor10||1.43|
|Cg - Geometry Factor11||0.186|

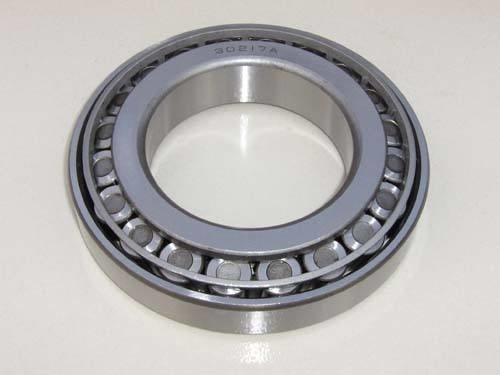

Tapered roller bearings have tapered inner and outer ring raceways as well as tapered rollers. They are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads. The projection lines of the raceways meet at a common point on the bearing axis to provide a true rolling action and therefore low frictional moments during operation. The axial load carrying capacity of tapered roller bearings increases with increasing contact angle α. The size of the contact angle, which is usually between 10° and 30°, is related to the calculation factor : the larger the value of e, the larger the contact angle.
Tapered roller bearings are uniquely designed to manage both thrust and radial loads. Consisting of a "tapered cup" and a "tapered cone", this design is one of the most basic and common styles in the bearing industry. Found in everything from cars to conveyor lines, tapered roller bearings are more versatile than any other bearing series. Our taper bearings are sold in sets with both the cup and the cone together.
Find everything you're looking for in one place. Our massive inventory at The Big Bearing Store has almost everything in stock and ready to ship. Our friendly and knowledgeable staff is ready to assist you in finding
whatever you need.
The optimized roller end design and surface finish on the flange promote lubricant film formation, resulting in lower friction. This also reduces frictional heat and flange wear. In addition, the bearings can better maintain preload and run at reduced noise levels.
Long service life
The crowned raceway profiles of basic design bearings and the logarithmic raceway profiles of Explorer bearings optimize the load distribution along the contact surfaces, reduce stress peaks at the roller ends , and reduce the sensitivity to misalignment and shaft deflection compared with conventional straight raceway profiles.
Enhanced operational reliability
Optimized surface finish on the contact surfaces of the rollers and raceways supports the formation of a hydrodynamic lubricant film.
Consistency of roller profiles and sizes
The rollers incorporated in tapered roller bearings are manufactured to such close dimensional and geometrical tolerances that they are practically identical. This provides optimal load distribution, reduces noise and vibration, and enables preload to be set more accurately.
Rigid bearing application
A single row tapered roller bearing is typically adjusted against a second tapered roller bearing. By applying a preload, a rigid bearing application can be achieved.
Running-in period with reduced temperature peaks
Tapered roller bearings typically have a running-in period, during which a conventional design tapered roller bearing experiences a significant amount of friction, resulting in wear. This effect is noticed as a temperature spike (diagram 1). With tapered roller bearing designs, friction, frictional heat and wear are significantly reduced, provided the bearings are mounted and lubricated correctly.
Separable and interchangeable
Depending on the design, tapered roller bearings are separable and components of same-sized bearings are fully interchangeable. For example, single row tapered roller bearings are separable , i.e. the inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup). This facilitates mounting, dismounting and also maintenance inspection routines.
