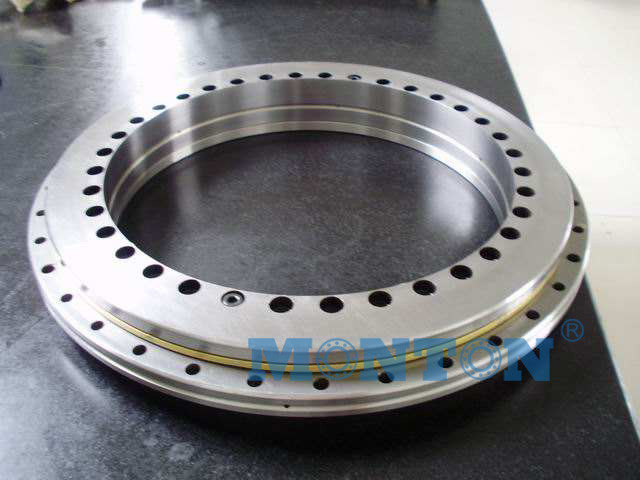

YRTS325 325*450*60mm High Speed Turntable Bearings Small Frictional Torque

Minimum Order Quantity : 1PCS Price : USD
Packaging Details : Single box/Wooden case Delivery Time : 7-35 days
Payment Terms : MoneyGram, Western Union, T/T, D/P, D/A, L/C Supply Ability : 1000PCS/WEEK
Place of Origin: Luoyang Brand Name: Monton
Model Number: YRTS325

Detail Information

High Light:

industrial turntable bearings

,

skf turntable bearings

Product Description

YRTS325  yrts high speed turntable bearings price

YRTS rotary table bearing
bearing type boundary dimensions fixing holes
d D T H C d1 dn dm inner ring outer ring
unit: mm d0 ds TS quantity dL quantity
mm mm
YRTS325 325 450 60 40 20 415 342 430 9.3 15 8.2 34 9.3 33



bearing type Number of retaining screws Extraction thread hole Number of pitches X angle of pitches Screw tightening torque Basic load rating Limiting speed weight
axial radial
dynamic load static load dynamic load static load
MA2) Ca Coa Cr Cor grease
G quantity qty×t Nm KN r/min Kg
YRTS325 2 M12 3 36×10° 34 191 1260 109 320 760 25

YRTS High speed turntable BearingsFeatures:YRTS turntable bearing is that YRT bearings radial rollers adopt nylon retainer. YRTM turntable bearing is YRT combination bearing installed with steel encoder,Website:http://www.bearinglbr.com, achieving real-time monitor and adjustment of two directions cylindrical roller combination bearings rotation accuracy, to ensure high-precision operation of the machine.Applications:Used in construction crane, high-precision CNC turntable, dividing head, aerospace, other high-precision field in measurement and testing.ModelNameFeaturesYRTSHigh speed turntable BearingsHaving features of high speed compared with YRT type.

YRTS325  yrts high speed turntable bearings price
