NN3007KW33/ P5 Super Precision Cylindrical Roller Bearings Machine Tool Spindle Bearings

China NN3007KW33/ P5 Super Precision Cylindrical Roller Bearings Machine Tool Spindle Bearings supplier

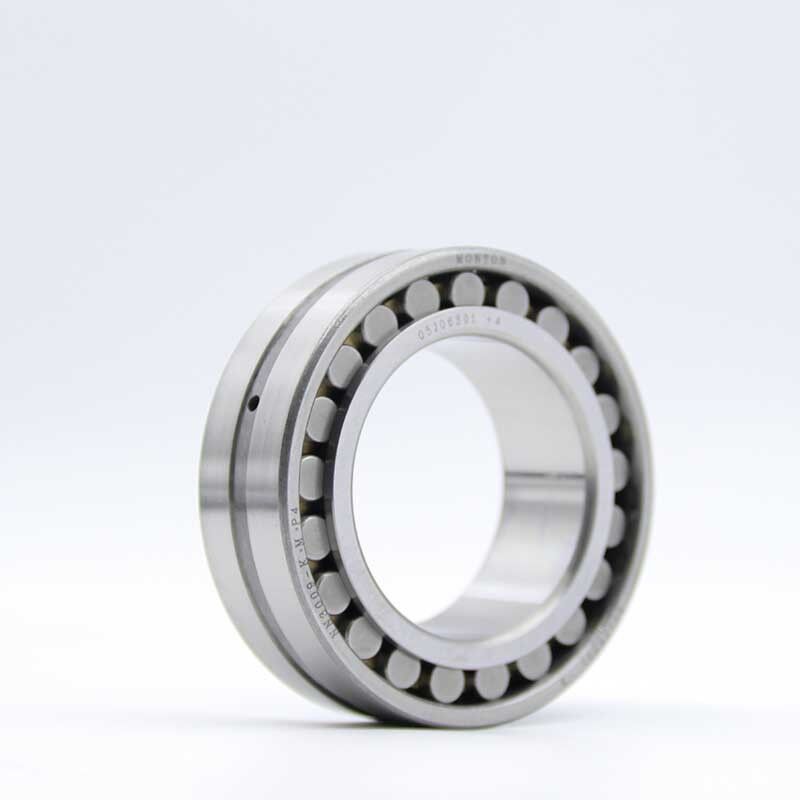

Large Image :  NN3007KW33/ P5 Super Precision Cylindrical Roller Bearings Machine Tool Spindle Bearings

Product Details:

Place of Origin: Luoyang
Brand Name: Monton
Model Number: NN3007KW33/P5

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: USD100-500/PCS
Packaging Details: Single box
Delivery Time: 5-8 days
Supply Ability: 1000PCS/WEEK
Contact Now
Detailed Product Description

Cylindrical Roller Bearings are bearing in which cylinders are used as the rolling elements as opposed to balls in ball bearings. As such, the rollers have a greater (linear) contact area with the outer ring and are distribute loads across a broader surface. Subsequently, they have a relatively high radial load capacity and are suitable for high speeds. Double-row cylindrical roller bearings have high radial rigidity and are used primarily for precision machine tools.

Depending on the series as defined below a number of cylindrical roller bearings have no ribs on either the inner or outer ring, so the rings can move axially relative to each other which can be used as free-end bearings.

Pressed steel (with or without tins or fins) or machined brass cages are generally used, but sometimes molded polyamide cages are also available depending on the application. Cylindrical Roller Bearings are also available without cages with a full complement of rollers. This allows even higher loads but at the expense of speed.

Single row cylindrical roller bearings are also manufactured with snap ring grooves on the outer rings. This design simplifies the bearing joint as the bearings are located into the housing by means of the snap rings.

There are different types designated NU, NJ, NUP, N, NF for single-row bearings, and NNU, NN for double-row bearings depending on the design or absence of side ribs. AST’s cylindrical roller bearings come in the following series with various cage designs and Metric dimensions:

N Series - Bearings of N design are single row cylindrical roller bearing and have two fixed ribs on the inner ring that retain the rollers and cage and one smooth outer ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, N Series rolling bearings are used in non-locating bearing units. Also, the N Series bearings have virtually no thrust capacity.
NU Series - Are single row cylindrical roller bearings and have two fixed ribs on the outer ring and one smooth inner ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, NU Series rolling bearings are used in non-locating bearing units. Also, the NU Series bearings have no virtually thrust capacity.
NJ Series - Are single row cylindrical roller bearings and have two fixed ribs on the outer ring and a fixed rib on the inner ring which can guide the shaft in a single direction (axially).
NUP Series - Are single row cylindrical roller bearings and have two fixed ribs on the outer ring and, on the inner ring, a fixed rib and a support washer. This way they can be used as locating bearings, guiding the shaft axially in both directions.
RNU Series - Are single row cylindrical roller bearings and have two fixed ribs on the outer ring and has no inner ring. Instead, it uses the shaft as the opposing raceway.
NF Series - Also able to carry incidental thrust loads, this bearing type features two integral ribs on the inner ring and a single rib on the outer ring.
NN Series - Bearings of NN design are double row cylindrical roller bearing and have three fixed ribs on the inner ring that retain the rollers and cage and one smooth outer ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, N Series rolling bearings are used in non-locating bearing units. Also, the NN Series bearings have no virtually thrust capacity.
NNU Series - Are double row cylindrical roller bearings and have three fixed ribs on the outer ring and one smooth inner ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, NU Series rolling bearings are used in non-locating bearing units. Also, the NNU Series bearings have no virtually thrust capacity.



NN Series Super Precision Cylindrical Roller Bearings are designed specifically to handle large radial loads in high-speed spindle applications that demand high running accuracy (runout) of bearing-spindle arrangements.
Features
This lineup of bearing includes a basic series that meets ISO standards and a specified series targeting machine tools.
A double-row cylindrical roller bearing series is available for applications requiring high rigidity. A single-row cylindrical roller bearing series is available for applications requiring high-speed performance.
A Robust series of high performance bearings is available for applications requiring both high-speed and high-rigidity performance.



Bearings Demensions RPM stiffness Weight
d D b Rmin E n s Oil Lub. Rr Ra
Mm KN r/min Kg
NN3006K 30 55 19 1 48.5 4.8 1.4 29 34 16000 19000 0.19
NN3007K 35 62 20 1 55 4.8 1.4 35.5 44 14000 17000 0.25
NN3008K 40 68 21 1 61 4.8 1.4 45 58.5 12000 15000 0.31
NN3009K 45 75 23 1 67.5 4.8 1.7 54 72 11000 14000 0.4
NN3010K 50 80 23 1 72.5 4.8 1.7 57 80 10000 13000 0.41
NN3011K 55 90 26 1.1 81 4.8 1.9 72 100 9000 11000 0.65
NN3012K 60 95 26 1.1 86.1 4.8 1.9 75 110 8500 10000 0.67
NN3013K 65 100 26 1.1 91 4.8 1.9 76.5 116 8000 9500 0.74
NN3014K 70 110 30 1.1 100 6.5 2.3 98 150 7000 8500 1.07
NN3015K 75 115 30 1.1 105 6.5 2.3 100 156 6700 8000 1.13
NN3016K 80 125 34 1.1 113 6.5 2.5 120 186 6300 7500 1.56
NN3017K 85 130 34 1.1 118 6.5 2.5 125 200 6000 7000 1.64
NN3018K 90 140 37 1.5 127 6.5 2.5 140 225 5600 6700 2.13
NN3019K 95 145 37 1.5 132 6.5 2.5 143 236 5300 6300 2.23
NN3020K 100 150 37 1.5 137 6.5 2.5 146 245 5300 6300 2.32
NN3021K 105 160 41 2 146 6.5 2.6 190 310 4800 5600 2.96
NN3022K 110 170 45 2 155 6.5 2.8 220 360 4500 5300 3.76
NN3024K 120 180 46 2 165 6.5 3.1 232 390 4300 5000 4.1
NN3026K 130 200 52 2 182 9.5 3.3 290 500 3800 4500 6.04
NN3028K 140 210 53 2 192 9.5 3.3 300 520 3600 4300 6.48
NN3030K 150 225 56 2.1 206 9.5 3.7 335 585 3400 4000 7.88
NN3032K 160 240 60 2.1 219 9.5 4.2 375 670 3200 3800 9.57
NN3034K 170 260 67 2.1 236 9.5 4.5 450 800 3000 3600 13
NN3036K 180 280 74 2.1 255 12.2 4.8 570 1000 2800 3400 17
NN3038K 190 290 75 2.1 265 12.2 4.8 585 1040 2600 3200 18
NN3040K 200 310 82 2.1 282 12.2 5.3 655 1200 2400 3000 23
NN3044K 220 340 90 3 310 15 5.5 800 1460 2200 2800 32.9
NN3048K 240 360 92 3 330 15 6 850 1560 2000 2600 36
NN3052K 260 400 104 4 364 15 6.5 1060 2000 1900 2400 48



NN3007KW33/ P5 Super Precision Cylindrical Roller Bearings Machine Tool Spindle Bearings
