JU065XP0 thin section angular contact bearings
Features Gallery Product Description Request A Quote
Features
Specifications
Material: 9Cr18 Or GCr15
Accuracy: P0/P6/P5
Type: Angular Contact Ball Bearing/Deep Groove Ball Bearing
Seal Type: 2RS Or ZZ Or Open
Samples: Available
Market: Korean,Japan,China
Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: JU065XP0
Payment & Shipping Terms
Packaging Details: Singlebox
Delivery Time: 7-35 days
Payment Terms: T/T
Supply Ability: 10000PCS/WEEK
Product Description
Bearing Type Ball
For Load Direction Four Point
Construction Single Row
Seal Type Sealed
Cross Section 1/2″ x 3/8″
Part Number JU065XP0
For Shaft Diameter 6.500"
Bore Dia (d) 6.500"
Bore Dia Tolerance -0.0010"– 0"
For Housing ID 7.250"
Outer Dia (D) 7.250"
Outer Dia Tolerance -0.0010"– 0"
Width (B) 0.5"
Width Tolerance +.000 –.005"
Land dia.L1 6.650"
Land dia.L2 7.037"
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material Brass
Dynamic (lbs) Radial 1,851
Thrust 2,990
Moment 4,775
Static (lbs) Radial 3,310
Thrust 8,270
Moment 11,370
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30° to 110 ℃
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight (lbs) 0.870

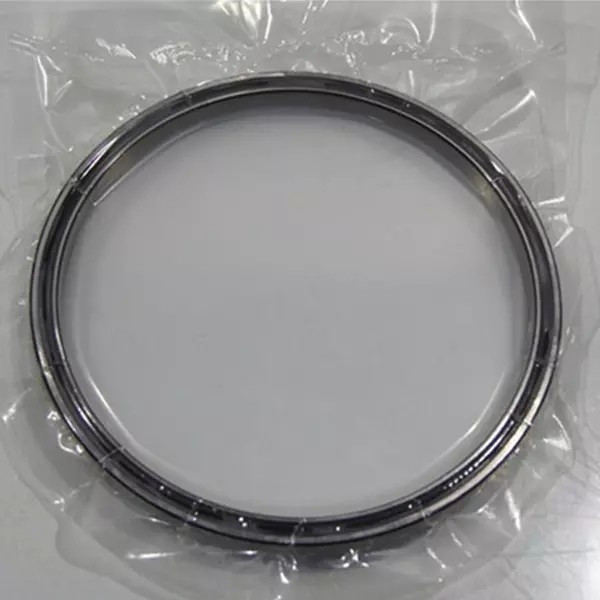

JU065XP0 thin section angular contact bearings 0

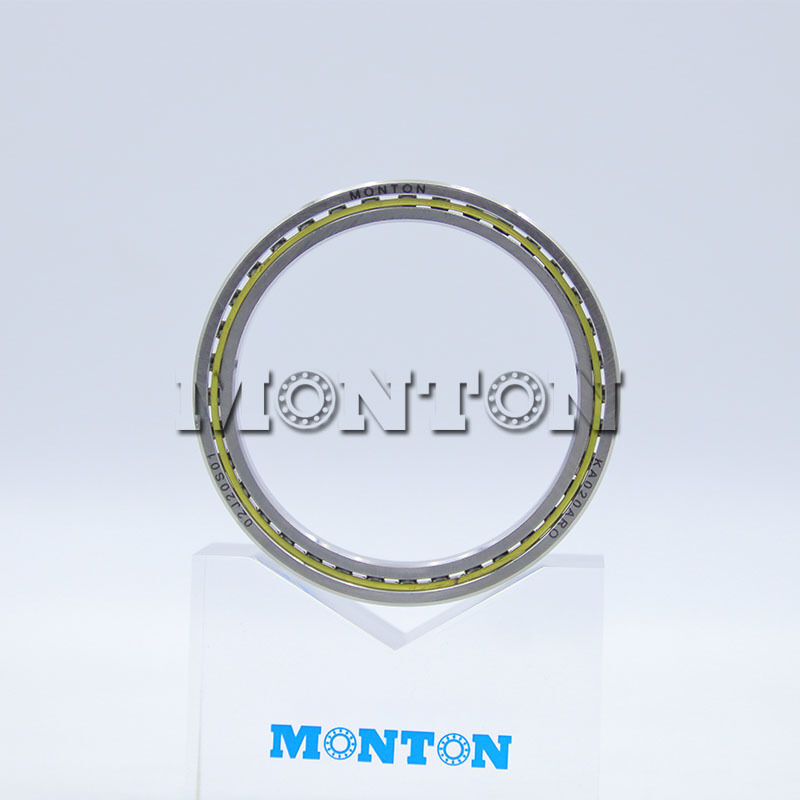

JU065XP0 thin section angular contact bearings 1

Product Description



Thin section bearings have high precision, are very quiet and have high load carrying capacity . These ball bearings are available in three different designs and have an extremely small, predominantly square cross-section. Within each series, the cross-section remains constant even for larger shaft diameters and housing bores.

Details of thin section bearing

The bearings are therefore also described as Constant Section (CS). This special feature distinguishes thin section bearings from conventional bearings as standardised in ISO series.

It is therefore possible to select a larger cross-section and thus use a bearing with

higher load carrying capacity without the need to change the shaft diameter as well.

Thin section bearings allow designs to be achieved that are extremely light and require little space.

Thin section bearings are available as deep groove ball bearings (C), four point contact

bearings (X) and angular contact ball bearings (E). Each of these designs is available in

various series. The series correspond to the crosssection sizes.




Thin Section Bearing


Thin
Section
Bearings
Structure Type A
Angular Contact Ball
Type C
Radial contact Ball
(Deep Groove Ball)
Type X
Four Point Contact Ball
REALI-SLIM Open Type
Bearings
KAA Type A-KAA Type C-KAA Type X-KAA
KA Type A-KA Type C-KA Type X-KA
KB Type A-KB Type C-KB Type X-KB
KC Type A-KC Type C-KC Type X-KC
KD Type A-KD Type C-KD Type X-KD
KF Type A-KF Type C-KF Type X-KF
KG Type A-KG Type C-KG Type X-KG
Sealed Bearings JHA / Type C-JHA Type X-JHA
JA / Type C-JA Type X-JA
JB / Type C-JB Type X-JB
JU / Type C-JU Type X-JU
JG / Type C-JG Type X-JG
Stainless Steel SAA Type A-SAA Type C-SAA Type X-SAA
SA Type A-SA Type C-SA Type X-SA
SB Type A-SB Type C-SB Type X-SB
Metric Series 8mm Type A-8mm Type C-8mm Type X-8mm
13mm Type A-13mm Type C-13mm Type X-13mm
20mm Type A-20mm Type C-20mm Type X-20mm
Ultra-Slim Ultra-Slim Type A-Ultra-Slim Type C-Ultra-Slim Type X-Ultra-Slim



china thin section bearings suppliers thin section bearings manufacturers KA020CP0 2x2.5x0.25

Application

The thin-section ball bearings series Monton are always used in the circumstances, such as requiring small space, heavy load ,light weight or limiting some special forms .At the same time ,we also provide some special services ,for example ,we produce bearings according to the customers' blueprint re.At present ,our thin section bearings meet the most demanding specifications in a broad range of applications including:

Aircraft
Aerospace and astronomy instrumentation
Fixing and work holding equipment
Food processing equipment
Glass working equipment
Index and rotary tables
Packing equipment
Machine tools
Medical devices
Optical scanning equipment
Radar
Satellite and communications equipment
Robotics
Textile machinery
Tube and pipe cutting machines
Semiconductor manufacturing equipment
Sorting equipment

We have the below types for your reference:

Open Radial Contact Ball Bearings (KA, KB, KC, KD, KF, KG series)
Open Angular Contact Ball Bearings (KA, KB, KC, KD, KF, KG series)
Open Four Point Contact Ball Bearings (KA, KB, KC, KD, KF, KG series)
Sealed Radial Contact Ball Bearings (JHA, JA, JB, JU. JG series)
Sealed Four Point Contact Ball Bearings ( JHA, JA, JB, JU, JG series)

Specifications for standard Monton thin section bearing



Item Description
  Material analysis
Races & balls AISI 52100 Type Steel Vacuum Degassed
AISI 440C Stainless Steel
Separators Brass or non-metallic composite
C,X bearings Nylon, fiberglass reinforced
A bearings Brass or non-metallic composite
  Nylon, fiberglass reinforced
Seals Rubber
  Heat treatment
Races Through hardened and dimensionally stabilized for use
Balls from -65°F to +250°F (-54°C to +121°C)
  AISI 52100-Hardened to Rc 62-66, AISI 440C-to Rc 58-65
  Precision
Race dimensions P0-P4
Race runouts P0-P4
Balls G5-G10
  Diametral clearance and contact angle
Type C bearing Sufficient diametral clearance to provide small amount of running clearance
after installation with recommended fits.
Type X bearing Gothic Arch Form for two 30° contact angles under light radial gaging load.
Sufficient diametral clearance to provide clearance after installation with recommended fits.
Type A bearing Diametral clearance for 30° contact angle in single
  unmounted bearing under light axial gaging load. Wide
  range of preload or running clearance for matched sets
  Separator design
P&L types
C,X bearings Circular Ring, Snapped Over Balls for Retention
R&G types
A bearings Circular Ring, Circular Pockets, Self Retained
Quality control ISO
Identification Monton and bearing number
Cleaning Multiple cycle immersion and agitation in solvents and/or aqueous cleaners
Preservative Preservative Oil
Package Heat Sealed in Plastic Bag & Boxed
