CSF20-5016 14*70*16.5mm harmonic drive bearing manufacturers for robotics

Minimum Order Quantity : 1PCS Price : Ask
Packaging Details : Single box Delivery Time : 7-35 days
Payment Terms : L/C, D/A, D/P, T/T, MoneyGram, Western Union Supply Ability : 1000PCS/WEEK
Place of Origin: Luoyang Brand Name: MONTON
Certification: ISO9001 Model Number: CSF20-5016

Product Description

CSF20-5016

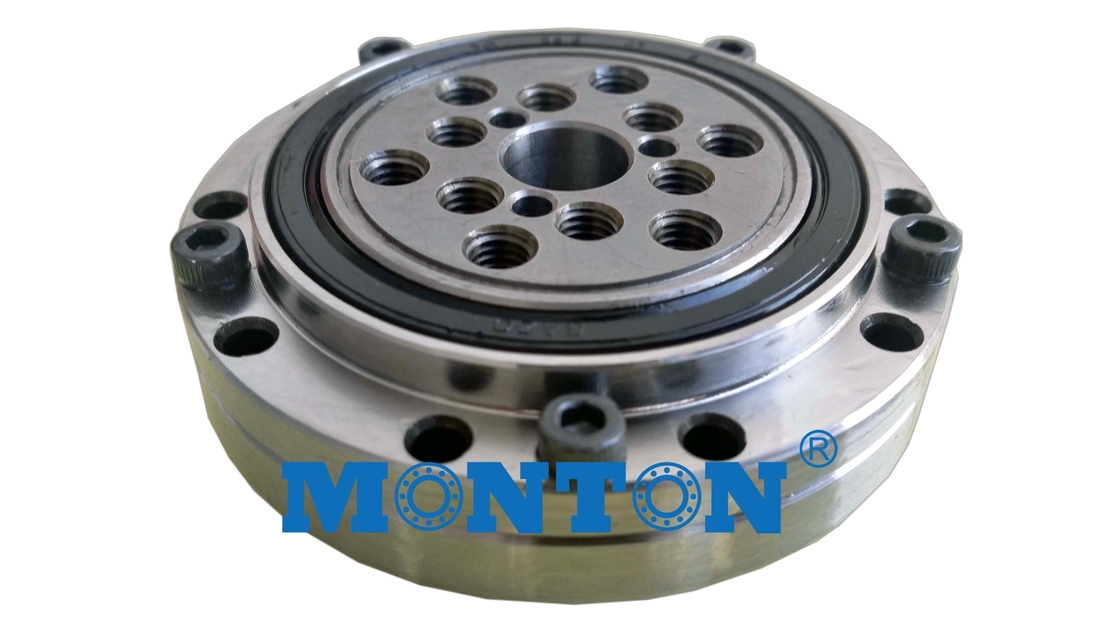

CSF20-5016 14*70*16.5mm harmonic drive bearing manufacturers  for robotics 0



Designation Dimensions (h/li) Basic Load ratings(KN) Weight
Bearing d D T D1 D2 D21 D3 n1-d1 n2-d2 n21-d21 n3-d3 d31 t31 rsmin Cr Cor kg
CSF20-5016 14 70 16.5 64 32 24 19 12-φ3.5 8-M6 8-M5 4-φ3 4-φ2.8 7 0.3 x 45 ° 6.1 8.4 0.36













































Harmonic Drive Bearing

High Load Capactity And High Rigidity Crossed Roller Bearing For Harmonic Drive Gear Reducer.

Harmonic gear bearings Cross cylindrical roller structure, divided according to their use case split outer ring, the inner ring and the outer and inner rings integral whole two categories. Rolling element is a cylindrical roller, 90 ° to each other vertically aligned in a V-raceway. This configuration enables a single bearing can withstand the load axial load, radial load and overturning moment, etc. in all directions, has high bearing stiffness and rotation accuracy complex carrying capacity; these bearings are compact, comes with bearing mounting holes for easy installation directly to the customer, suitable for a variety of different types of harmonic reducer.

Monton series bearings designed for this robot manipulator with R & D and harmonic reducer cross roller bearings, and precision cross roller bearing the same internal structure, have high rigidity, high precision turning, colleagues and can withstand the joint in all directions load. Harmonic gear during operation, these bearings have a crucial role, bearing directly determine the accuracy of gear teeth in the wrong resistance movement, and therefore PRS harmonic gear bearings ensure accuracy of the overall state of the harmonic gear It played a crucial role.



CSF (CSG) type (split outer ring, the inner ring as a whole) is divided into two outer ring, the inner ring structure as a whole, does not require the installation flange and housing for CSG (CSF) series of all types of gear .

Standards of High Load Capactity And High Higidity Crossed Roller Bearing For Harmonic Drive Gear Reducer.



Specifications of High Load Capactity And High Higidity Crossed Roller Bearing For Harmonic Drive Gear Reducer.



Designation Dimensions (h/li) Basic Load ratings(KN) Weight
Bearing d D T D1 D2 D21 D3 n1-d1 n2-d2 Cr Cor kg
CSF14-3516 9 55 16.5 49 23 14.5 15.5 8-φ3.5 6-M4 4.6 5.1 0.25
CSF17-4216 10 62 16.5 56 27 17.5 17.5 10-φ3.5 6-M5 5.2 6.4 0.27
CSF20-5016 14 70 16.5 64 32 24 19 12-φ3.5 8-M6 6.1 8.4 0.36
CSF25-6218 20 85 18.5 79 42 30 26 16-φ3.5 8-M8 11.2 16 0.65
CSF32-8022 26 112 22.5 104 55 40 34 16-φ4.5 8-M10 18.5 28.3 1.1
CSF40-9524 24 126 24 117 68 50 42 20-φ5 8-M10 18.9 30.7 1.6
CSF50-12031 32 157 31 147 84 60 50 16-φ5.5 8-M14 42.8 67.7 3.6
CSF65-16039 44 210 39 198 110 80 64 20-φ6.5 8-M16 67.7 114.9 7.8
SHF14-3516A 38 70 15.1 64 64 --- 44 8-φ3.5 2-M3 5.4 7.1 0.28
SHF17-4216A 47 80 17 74 74 --- 54 12-φ3.5 4-M3 10.4 14.2 0.39
SHF20-5016A 54 90 18.5 84 84 --- 62 12-φ3.5 4-M3 16.1 22.4 0.5
SHF25-6218A 68 110 20.7 102 102 --- 77 12-φ4.5 4-M3 17.8 27.4 0.81
SHF32-8022A 88 142 24.4 132 132 --- 100 12-φ5.5 4-M4 25.6 42 1.7
SHF40-9524A 108 170 30 158 158 --- 122 12-φ6.6 6-M4 42.1 68.4 2.79
SHF50-12031A 135 214 36 200 200 --- 154 12-θ 6-M5 69.8 121.6 5.19
