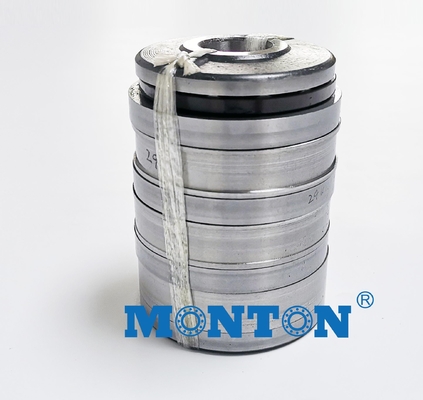

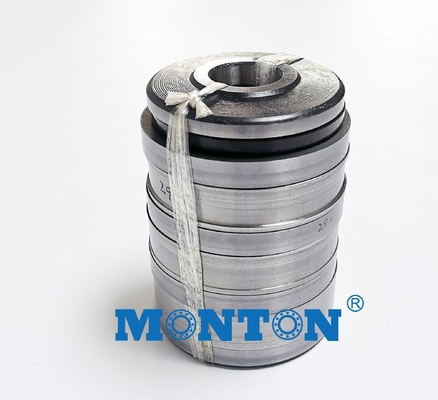

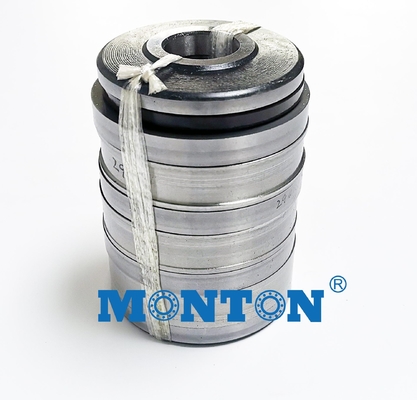

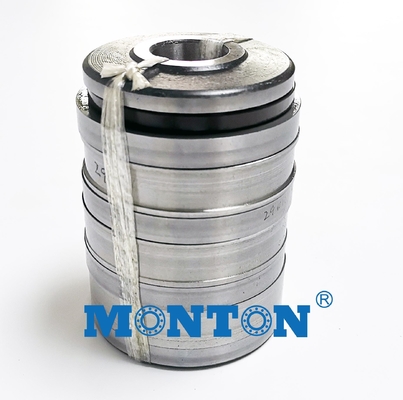

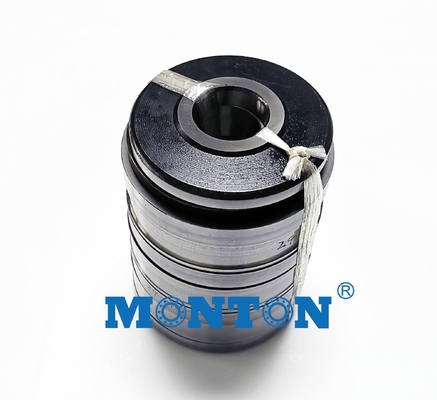

Zambello BC180-XPS-P ST16050413/C.100.038. Twin screw extruder gearbox Tandem thrust bearing

Minimum Order Quantity : 1PCS Price : ask
Packaging Details : Single box Delivery Time : 5-35 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 1000PCS/WEEK
Place of Origin: Luoyang Brand Name: MONTON
Model Number: ST16050413/C.100.038.

Product Description

Zambello  BC180-XPS-P  ST16050413/C.100.038. Twin screw extruder gearbox Tandem thrust bearing

Tandem Thrust bearings are also known as “multi-stage thrust” bearings. Tandem Thrust bearings are comprised of "stages" which include precision ground and matched thrust plates. These bearings also include compression sleeves separated by cylindrical roller assemblies. This design enables the Tandem Thrust bearings to provide a solution in a radial restricted envelope. The bearings are available in multiple stages, 2-8 to accommodate your design requirements. Depending on your preference, these bearings are available in a wide variety of sizes and options.

Tandem Thrust Bearings can receive heavy load in a limited space and support firmly in the direction of axis and last long with low frictional power. In addition, these bearings are moved by oil lubrication. Also these tandem thrust bearings are used principally in gear boxes for single & twin screw extruders in the rubber and plastic industries.



Tandem thrust cylindrical roller bearings with small radial cross section size, compact structure, large axial load capacity, each column roller uniform load, wear resistance, small vibration noise and long life and other characteristics, is the ideal of parallel twin screw extruder screw spindle bearing. Users according to screw center distance, space and load size in our company to choose two, three, four, five, six, seven or eight columns tandem bearings.

Tandem Bearings Type



1.Multi-stage cylindrical roller thrust bearing (basic type) adopts elastic spacer to connect the shaft washer, housing washer, roller and cage assembly.

The components of this Thrust Bearings are demountable. The user should assemble or dismount the bearing meticulously according to numeral order we provide.



2. Multi-stage cylindrical roller thrust bearing (shaft type) is made by penetrating an axis through the inner bore of basic type multi-stage cylindrical roller thrust bearing and fastening the bearing to the axis by locking collar.

The components of this type of cylindrical roller thrust bearing are inseparable.



3. Multi-stage cylindrical roller thrust bearing (sleeve type) locking collar is made by covering a sleeve to the external of the basic type multi-stage cylindrical roller thrust bearing. It is also inseparable, and is assembled and disassembled as a whole.



As the tandem thrust bearings have the characteristics of limiting radial cross section, excellent axial loading capacity, long working life and low friction loss, they have been successfully used in the reduction gearbox for the parallel twin screw extruder in the plastic and rubber industry. Tandem thrust bearings are highly recommended to be used in other machines and equipment.



Applications:



1.Twin screw Extruder gearbox



2.Deep hole drilling machine



3.Friction welding machines



4.parellel Twin screw extruder



5.Pipe laying machines



6.Oil pressing machine



7. polystyrene foam plates extruder





Zambello Gearboxes for co-rotating twin-screw extruders



Gearboxes for single-screw extruders



The ZPE series for single-screw extruders confirms Zambello’s position on the world top level as to the transmissible torque as referred to weight and dimension of the gearbox. The series of this range are absolutely complete and go from the smallest gearbox, of size 90 (for extruders with 25/30 mm screw diameter) up to gearboxes of size 630 (for big extruders with 300/400 mm screw diameter).



Gearboxes for co-rotating twin-screw extruders



ZT Range – With a transmissible torque density up to 14 Nm/cm3 per per shaft, the gearboxes of the ZT RANGE are designed for a wide range of applications and requirements, starting from the typical applications for revolutions of 300 to max. 900 rpm. to where lower revolution rates from 25 to max 200 rpm (ZT2, ZT3 series).The range is available for center distances from 24 mm to 200 mm. On request, also bigger versions can be provided.



Gearboxes for counter-rotating conical twin-screw extruders

As a completion of the range of gearboxes for counter-rotating extruders, Zambello proposes the new ZC3 gearboxes for conical twin-screw extruders.

This new series is available in entire range both in vertical and horizontal versions, as shown in the catalogue B1-14.

The essential feature of these gearboxes consists in also having grinded conical gears in class AGMA 2015 – DIN 4. Like the entire range of Zambello, also the gearboxes for twin-screw conical extruders of series ZC3 are distinguished by an extremely high transmissible torque.



twin-screw extruders Gearbox Applications

The strong specialization, wide range of products, huge investments of the property and continuous improvements aimed at obtaining a reliable, competitive and very high quality product are some of the reasons that have led the major world manufacturers of extrusion lines to be partners of Zambello Group. Through them, Zambello single screw and twin screw gearboxes are used in the most varied applications of the plastics industry, and not only. These applications are used both in traditional fields (automotive, construction, agriculture, medical and pharmaceutical sectors, etc.) with extrusion lines blow film, cast film, blow moulding, pipe and profile, sheet, thermoforming, compounding, master batch, recycling and in order to support the most recent productions in the fields of feed and bio fuel and chemical and petrochemical industries.

Zambello  BC180-XPS-P  ST16050413/C.100.038. Twin screw extruder gearbox Tandem thrust bearing
