Home /Products/Angular Contact Ball Bearing/719/8 CE/HCP4A VEB8/NS7CE1 Angular Contact Ball Bearing

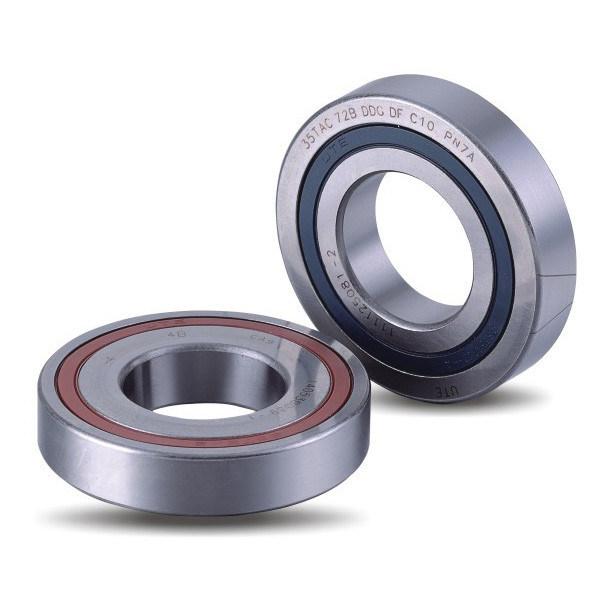

719/8 CE/HCP4A VEB8/NS7CE1 Angular Contact Ball Bearing

1
MOQ
Ask
Price
719/8 CE/HCP4A VEB8/NS7CE1 Angular Contact Ball Bearing
Features Gallery Product Description Request A Quote
Features
Specifications
Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: 719/8 CE/HCP4A VEB8/NS7CE1
Payment & Shipping Terms
Packaging Details: Singlebox
Delivery Time: 7-35 days
Payment Terms: T/T
Supply Ability: 10000PCS/WEEK
Product Description
Part Number :719/8 CE/HCP4A
NSK Code :798CSN24TRP4
719/8 CE/HCP4A VEB8/NS7CE1 Angular Contact Ball Bearing 0
Arrangement DB Set of two bearings arranged back-to-back <>

DF Set of two bearings arranged face-to-face ><

DT Set of two bearings arranged in tandem <<

DG Set of two bearings for universal matching

Bore Dia (d) 8 mm
Bore Dia Tolerance -0.004mm to 0

Outer Dia (D) 19 mm
Outer Dia Tolerance -0.005mm to 0

Width (B) 6 mm
Width Tolerance -0.04mm to 0

Ring Material 52100 Chrome steel

Ball Material Ceramic Ball Si3N4

Cage Material Polyamide
Dynamic Load Rating (Cr) (KN) 1.74
Static Load Rating (Cor) (KN) 0.63
Max Speed (Grease) (RPM) 145000
Max Speed (Oil) (RPM) 220000

Preload Extra Light Preload
Light Preload
Medium Preload
Heavy Preload
Special Preload
Special Axial Clearance

Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -40 to 120 ºC

Weight (grams) 6
