751120MSP/5 100*110*126mm Single direction angular contact thrust ball bearings

Minimum Order Quantity : 1 PCS Price : Ask
Packaging Details : Single box Delivery Time : 5-35 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 1000PCS/Day
Place of Origin: Luoyang Brand Name: MONTON
Certification: ISO9001-2008 Model Number: 751120MSP/5

Detail Information

Bearing: 751120MSP/5 D: 100mm
D: 110mm B: 26mm
Weight: 1.99KG Material: Gcr15

Product Description



Bearing Dimension(Metric) Weight
Dw Dg Dw Dg H Wgt. lbs
751120MSP/5 100 110 126 135 25 1.99

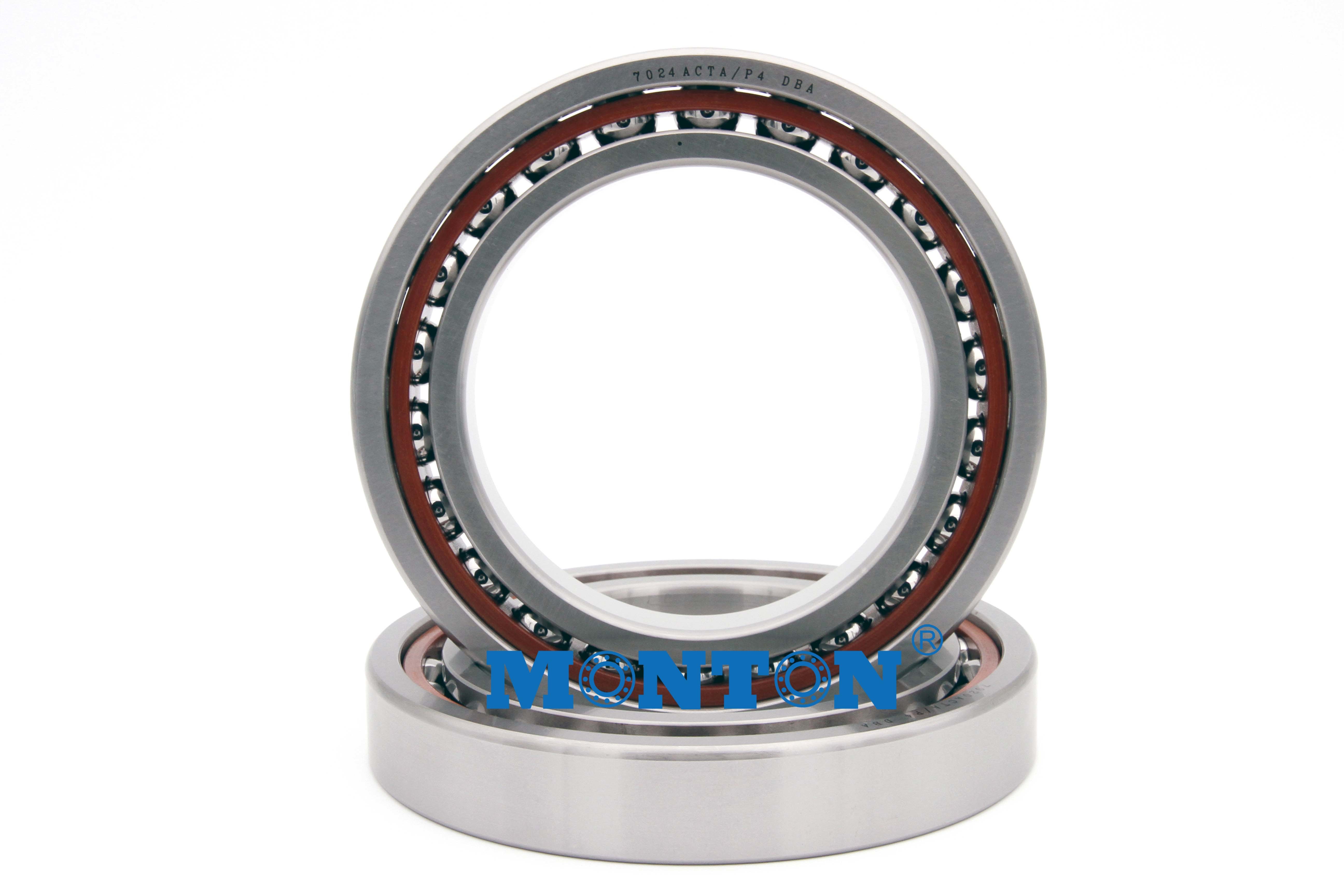

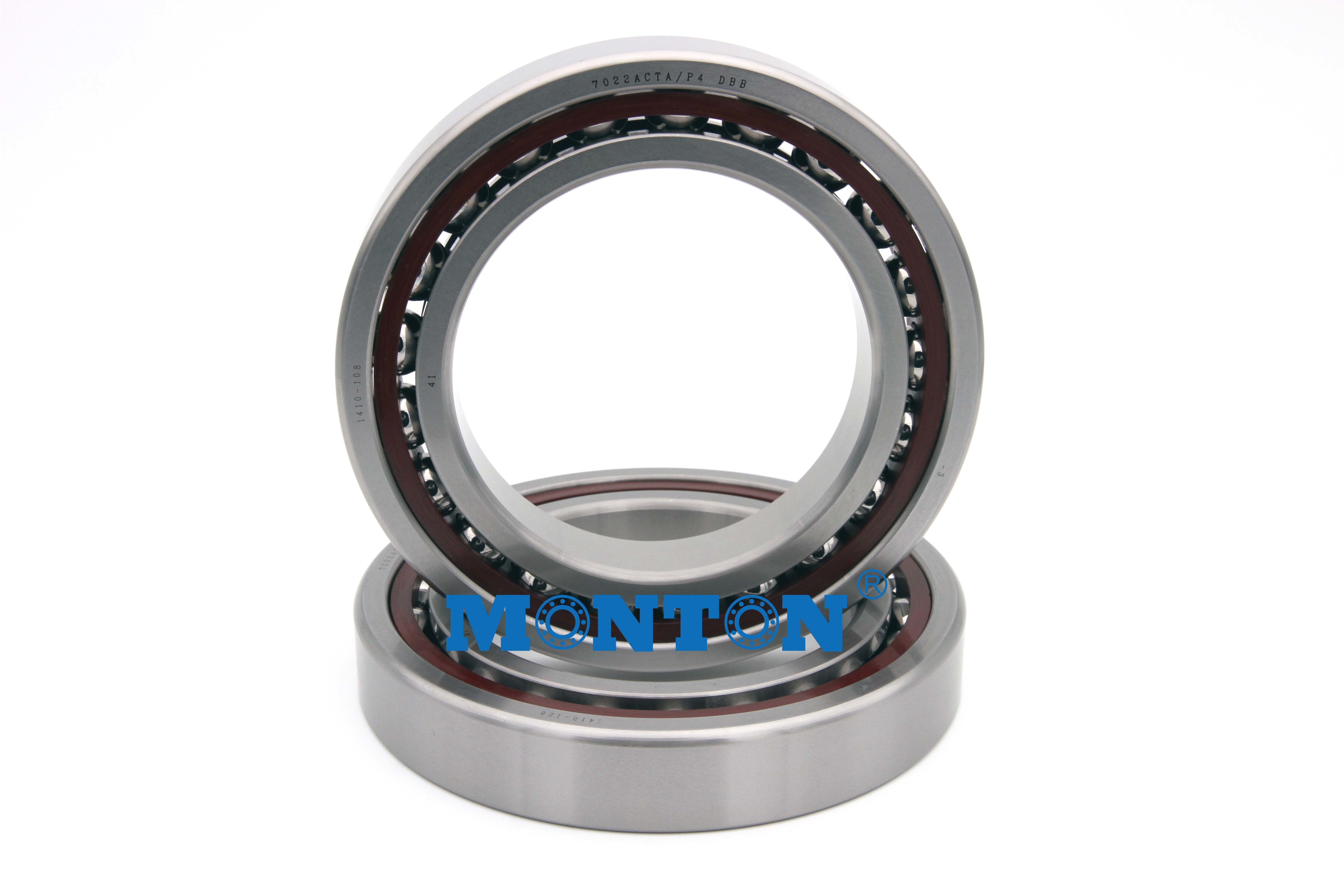

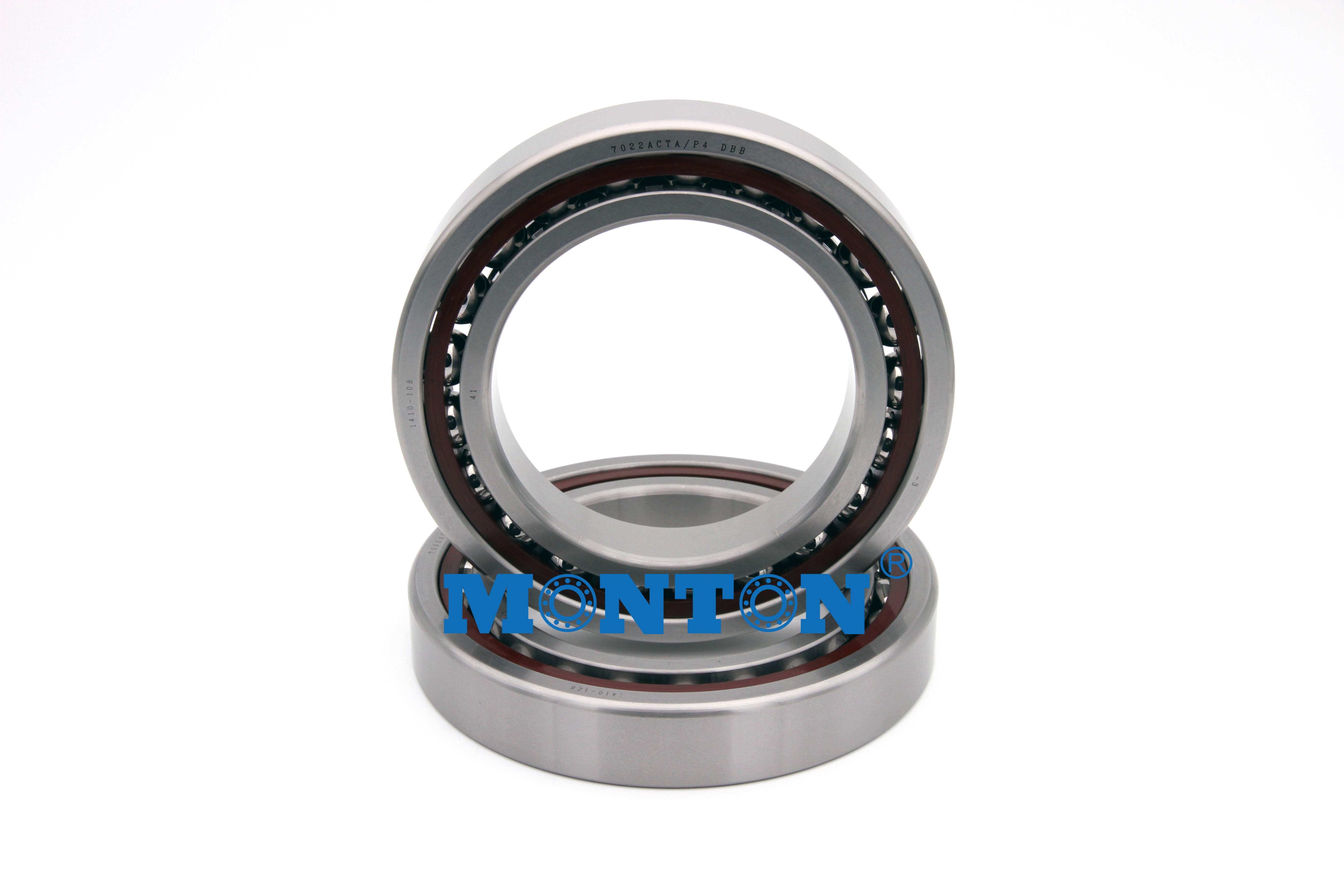

Single direction angular contact thrust ball bearings

Single direction angular contact thrust ball bearings have been developed specially for the support of ball and roller screws in machine tools, and they also can be used successfully for other applications. These non-separable design bearings, which have a ball-centred cage of the polyamide 6,6 incorporating a large number of balls, stands particularly close conformity between the balls and raceways with 60º contact angle. These design characteristics contribute to:


(1) High axial stiffness of the bearing


(2) Suitable for the accommodation of radial load in addition to axial load


(3) High running accuracy especial for axial running


(4) High speed and acceleration performance


(5) Low friction torque

Angular Contact Thrust Ball Bearing.jpg

MONTON single direction angular contact thrust ball bearings can be supplied in matched sets of two, three or four bearings.
