BS2 2208-2CS Sealed Bearing Spherical Roller , Nylon Cage Concrete Mixer Bearings

China BS2 2208-2CS Sealed Bearing Spherical Roller , Nylon Cage Concrete Mixer Bearings supplier
BS2 2208-2CS Sealed Bearing Spherical Roller , Nylon Cage Concrete Mixer Bearings supplier BS2 2208-2CS Sealed Bearing Spherical Roller , Nylon Cage Concrete Mixer Bearings supplier BS2 2208-2CS Sealed Bearing Spherical Roller , Nylon Cage Concrete Mixer Bearings supplier

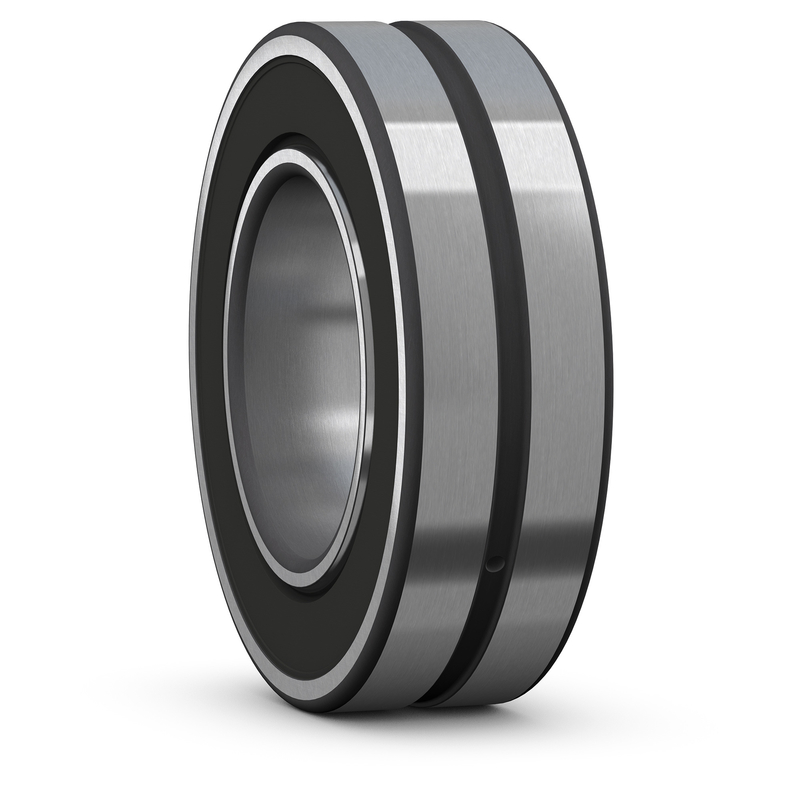

Large Image :  BS2 2208-2CS Sealed Bearing Spherical Roller , Nylon Cage Concrete Mixer Bearings

Product Details:

Place of Origin: LUOYANG
Brand Name: MONTON
Certification: ISO9001
Model Number: BS2 2208-2CS

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 20USD/pc
Packaging Details: single box
Delivery Time: 15days
Payment Terms: TT
Supply Ability: 1000/pcs/week
Contact Now
Detailed Product Description
Material: GCr15SiMn Or GCr15 Accuracy: P6 Or P5
Market: Europe Or USA Or Russia Cage Material: Nylon Cage
Samples: Available Types: Sealed

Sealed Double Row  Spherical Roller Bearing















Instruction of Spherical Roller Bearing:
Spherical roller bearings consist of two rows of rollers, one outer ring with spherical raceway, one inner ring with two raceways and one spacer.
They are self-aligning and consequently insensitive to misalignment of the shaft relative to the housing and to shaft deflection or bending. Spherical roller bearings can carry high radial loads or proper axial loads in both directions.

Structure Type:
We can supply many types of Spherical roller bearings. These bearings can be used in different situation

E: it is the latest design, using symmetric spherical roller, two piece of pressed steel cages, flangeless inner ring and guide ring centred on the cage. Guide ring around the outer can improve lubricating condition on roller face of end. It can also reduce friction, help guiding roller in the non-load region, and assist roller into the loading area, meanwhile, the length of roller is getting longer so that the load rated has been enhanced.


EAE4 type: it consists of symmetric spherical roller , two piece of pressed steel cages, flange less inner ring and guide ring cantered on the cage . In general, this kind of bearing has more roller quantities and higher dynamic loading rating. It has simple structure ,higher load capacity .lower friction moment, lower noise and longer life.

CC type: it consists of two pressed steel cage ,flange less inner ring and guide ring centered on the inner ring it adopts symmetrical spherical roller,which bear the larger load, longer life compared with CA type.

CA type: it consists of one piece of machined brass cage , one inner ring with double flanges and one guide ring centered on the inner ring, the limit speed is higher ,and have a relatively small noise.

MB type: it consists of two piece of machined brass cage ,one inner ring with double flanges and one guide ring centered on the inner ring ,its performance and characteristics are similar to CA, but load rating is lower .

Tapered bore :with some exceptions, all spherical roller bearings are produced with a tapered bore ,these bearings can be used together with the adapter or withdrawal sleeve so that its are easy to be fixed and dis-assembly the bearing .the bearing 240,241,248 and 249 series have a taper of 1:30 designation suffix K30, and the other series have a taper of 1:12,designation suffix K.

Annular groove and lubrication holes: spherical roller bearings often have one annular groove and three lubrication holes on the outer ring ,designation suffix W33


We can supply you of Spherical roller bearings:

























Spherical roller bearings





23022 series

23022 23024 23026 23028 23030 23032 23034 23036 23038 23040 23044 23048 23052 23056 23060 23064 23068 23072 23076 23080 23084 23088 23092 23096





24024 series

24024 24026 24028 24030 24032 24034 24036 24038 24040 24044 24048 24052 24056 24060 24064 24068 24072





23218 series

23218 23220 23222 23224 23226 23228 23230 23232 23234 23236 23238 23240 23244 23248 23252 23256 23260 23264 23280 23284 23296





22208 series

22208 22209 22210 22211 22212 22213 22214 22215 22216 22217 22218 22219 22220 22222 22224 22226 22228 22230 22232 22234 22236 22238 22240 22244 22248 22252 22256 22260





22308 series

22308 22309 22310 22311 22312 22313 22314 22315 22316 22317 22318 22319 22320 22322 22324 22326 22328 22330 22332 22334 22336 22338 22340 22344 22348 22352 22356 22372 22380





23121 series

23121 23122 23124 23126 23128 23130 23132 23134 23136 23138 23140 23144 23148 23152 23156 23160 23164 23168 23172 23176 23180 23184 23188 23192 23196 23936 23940 23948 23960 23972 23976 23996



24122 series

24122 24124 24126 24128 24130 24132 24134 24136 24138 24140 24144 24148 24152 24156 24160 24172
