KA045CP0 Thin Wall Bearing ,Robotics Thin Section Bearings

1
MOQ
USD
Price
KA045CP0 Thin Wall Bearing ,Robotics  Thin Section Bearings
Features Gallery Product Description Request A Quote
Features
Specifications
Material: 9Cr18Mo Or 440C Or Gcr15
Accuracy: P6/P5/P4
Type: Thin Section Bearing
Seal Type: 2RS Or ZZ Or Open
Samples: Available
No. Of Row: Single Row
Highlight:

thin section ball bearings

,

slim section bearings

Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: KA045CP0
Payment & Shipping Terms
Packaging Details: Singlebox
Delivery Time: 7-35 days
Payment Terms: T/T
Supply Ability: 10000PCS/WEEK
Product Description



Single Row KA045CP0 Kaydon Bearing , Thin Section Bearings 4.5x5x0.25 For Robot



Information:

Product KA045CP0 Bearing 4.5x5x0.25 inch Super Precision Thin Section Bearing For Robot KA045CP0
Precision Rating ABEC1,ABEC3,ABEC5
Clearance C0,C2,C3,C4,C5 is available
Sealed Cap Rubber or Metal
Paypal Acceptable
OEM Accept
Vibration Level code V1,V2.V3
Material Gcr15
Seals Type ZZ/ZRS.RZ/RS. Open
Width 0.25 in.
Bore Size 4.5 in.
Outside Diameter 5 in.
Number of Row Single
Regular export packing Plastic drum+White box+ carton
  industrial packaging or as your requiremen.
MOQ 1 pcs
Delivery Time 3-5 days after receiving your payment
Payment Terms L/C,T/T,Western Union,MoneyGram,Paypal
Port of shippment by sea Shanghai,guangzhou,qingdao
Place of Origin Anhui, China
Samples Available







Model Dimension BasiK Kap. Weight
d D Width L1 L2 Cor Cr
inch Pounds
KA020CP0 2 2.5 0.25 2.186 2.134 3020 1420 0.048
KA025CP0 2.5 3 0.25 2.686 2.814 3690 1600 0.059
KA030CP0 3 3.5 0.25 3.186 3.314 4400 1820 0.068
KA035CP0 3.5 4 0.25 3.686 3.814 5070 2000 0.082
KA040CP0 4 4.5 0.25 4.186 4.314 5730 2130 0.09
KA042CP0 4.25 4.75 0.25 4.436 4.564 6090 2220 0.095
KA045CP0 4.5 5 0.25 4.686 4.814 6400 2310 0.1
KA047CP0 4.75 5.25 0.25 4.936 5.064 6760 2400 0.104
KA050CP0 5 5.5 0.25 5.816 5.314 7070 2490 0.109
KA055CP0 5.5 6 0.25 5.686 5.814 7780 2620 0.118
KA060CP0 6 6.5 0.25 6.186 6.314 8450 2800 0.13
KA065CP0 6.5 7 0.25 6.686 6.814 9110 2930 0.14
KA070CP0 7 7.5 0.25 7.186 7.314 9780 3070 0.15
KA075CP0 7.5 8 0.25 7.686 7.814 10450 3200 0.16
KA080CP0 8 8.5 0.25 8.186 8.314 11110 3330 0.172
KA090CP0 9 9.5 0.25 9.186 9.314 12490 3600 0.2
KA100CP0 10 10.5 0.25 10.186 10.314 13820 3870 0.227
KA110CP0 11 11.5 0.25 11.186 11.314 15160 4130 0.236
KA120CP0 12 12.5 0.25 12.186 12.314 16540 4360 0.254
KB020CP0 2 2.625 0.3125 2.231 2.393 4130 2000 0.073
KB025CP0 2.5 3.125 0.3125 2.731 2.893 5070 2310 0.091
KB030CP0 3 3.625 0.3125 3.231 3.393 5960 2580 0.109
KB035CP0 3.5 4.125 0.3125 3.731 3.893 6850 2800 0.125
KB040CP0 4 4.625 0.3125 4.23 1 4.393 7780 3070 0.14
KB042CP0 4.25 4.875 0.3125 4.481 4.643 8130 3160 0.147
KB045CP0 4.5 5.125 0.3125 4.731 4.893 8670 3290 0.16
KB047CP0 4.75 5.375 0.3125 4.981 5.143 9020 3380 0.163
KB050CP0 5 5.625 0.3125 5.231 5.393 9560 3510 0.172
KB055CP0 5.5 6.125 0.3125 5.731 5.893 10490 3730 0.186
KB060CP0 6 6.625 0.3125 6.231 6.393 11380 3960 0.205
KB065CP0 6.5 7.125 0.3125 6.731 6.893 12270 4130 0.216
KB070CP0 7 7.625 0.3125 7.231 7.393 13200 4360 0.232





Thin-section bearings Details:



Product Features To support various load scenarios,Reail-SlIM Thin section ball bearings are

available in three basic types: radial contact (type C), angular contact (type A), and fourpoint

contact (type X) and in a variety of sizes ,or series (e.g., KA, KB, KC, etc.). Reail-SlIM Thin

section ball bearings are available with various separator options to space the rolling elements

uniformly and prevent contact between them.



Series Introduction "A Conrad assembled bearing designed primarily for application of radial

load—deep ball grooves also permit application of thrust load in

either direction – often used in conjunction with another bearing."





Applications: Applications in Robotics, inspection equipment, satellites, cameras…

anywhere precise positioning and lightweight designs are critical.

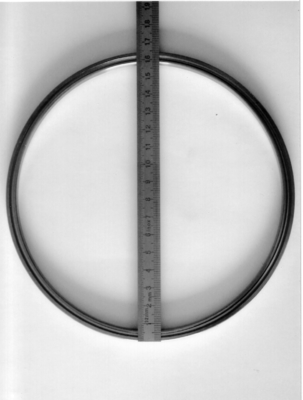

Picture Show:

KA045CP0 Kaydon Bearing 4.5x5x0.25 Thin Section Bearing For Robot KA045CP0KA045CP0 Kaydon Bearing 4.5x5x0.25 Thin Section Bearing For Robot KA045CP0KA045CP0 Kaydon Bearing 4.5x5x0.25 Thin Section Bearing For Robot KA045CP0

KA045CP0 Thin Wall Bearing ,Robotics  Thin Section Bearings 3

Our Advantages:



1. Manufacturer,the most competive price and good quality



2. Perfect group of technical engineers give you the best support



3.Well-trained group of international sales provide the best service



4.OEM brand aviliable



5.Rich stock and quick delivery



main product:



1. Deep groove ball bearing

2. Angular contact ball bearing

3. Ceramic bearing

4. Cylidrical roller bearing

5. Self-aligning ball bearing

6. Spherical roller bearing

7. Tapered roller bearing

8. Pillow block ball bearing

9. Wheel bearing

10. Other famous brand and OEM/ODM



FAQ





1. Q:Are you a factory or trading company?

A:We have own factory and Warehouse located in Luoyang





2. Q.What is the warranty for your bearings?

A: Bearings from our company come with six months limited warranty under this condition:

proper installation, operation and maintenance. If the malfunctions under warranty,

you could contact us for replacement.The warranty dated from the date of the shipment.





3. Q:Can I get some samples and do you offer the sample free?

A:Yes, sure, we are honored to offer you samples.If we have stock, we can send you free

sample. And you just need to pay freight. If there have no stock, you need to pay sample

fee and freight.



4. Q: Can i customize the bearings?

A: Yes,sure .we provide customize made service.

You need to send us the drawings for our further handing.





5. Does the sample fee can be return back?

A: If you place an order, we can return part of sample fee even all of fee to you.

It also depends on the Quantity of order and the type of sample.



6. Q:What is the MOQ for bearing?

A: Our MOQ is 1 pc.



Our Services
  • Your inquiry related to our product & price will be replied within 24hours
  • Well-trained & experienced staff are to answer all your inquiries.
  • OEM & ODM projects are highly welcomed. We have strong R&M team here to help.
  • Free samples available
  • The professional Logistic Center service
  • Technical support after sale
  • Any other reasonable requirements.
