ZKLF2575 Angular Contact Ball Bearings , Machines Tools ABEC 2RS ball bearing

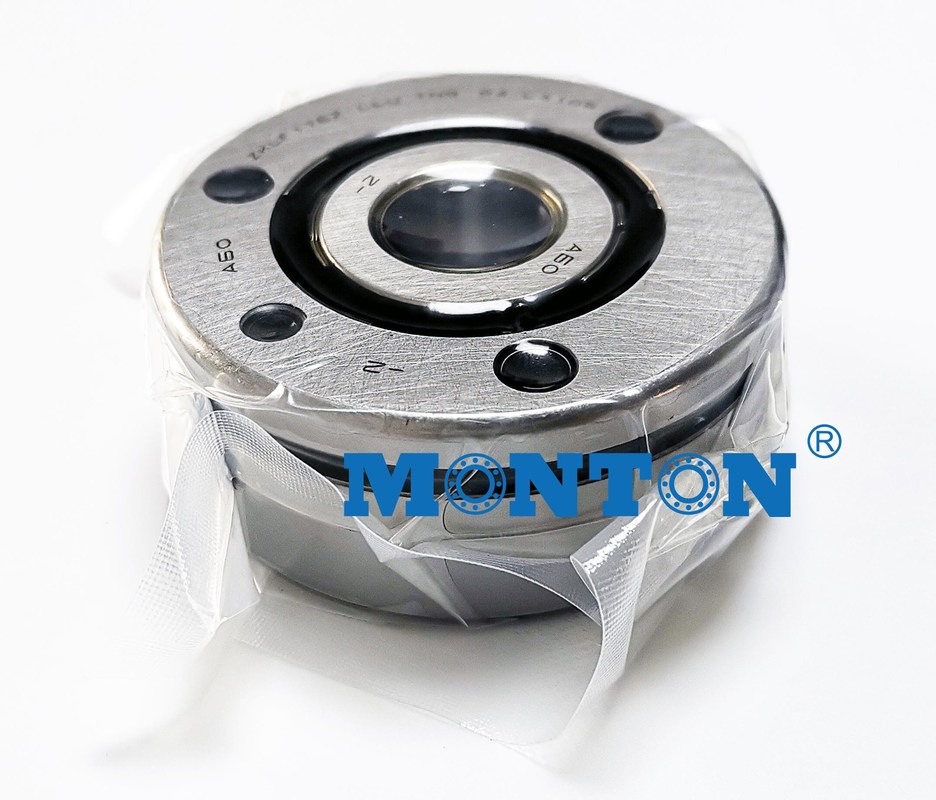

Axial angular contact ball bearing ZKLF 2575.2RS/2Z
Angular contact ball bearings have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis, which means that they are designed to accommodate combined loads, i.e. simultaneously supporting radial and axial loads.The axial load carrying capacity of angular contact ball bearings increases with increasing contact angle. The contact angle α is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.Retainers are made of brass ,synthetic resin of others subject to individual bearing features and application conditions.
Prducts | Thrust Angular Contact ball bearing |
Brand | Monton |
Model |
ZKLF2575-2Z ZKLF2575-2RS ZKLF2575-2RS-PE ZKLF2575-2RS-2AP |
Precision | P4 P5 |
Clearance | C3 C4 |
Quality standard | ISO9001:2000 standard |
Service | OEM service such as DMG,FFG,etc |
Delivery date | Normally ready goods and stock |
Payment terms |
A:100% L/C at sight B:30% T/T in advance .70% against copy of B/L C:Western Union D:Paypal |
Application | Auto, tractor ,machine tool, electric machine, water pump, agricultural machinery and textile machinery |
Package |
1.Industrial packing:Plastic tubes/Outer cartons/Pallets 2.Single box packing:Single box/Outer cartons/Pallets 3.According to your request |
Here below is the exact bearing codes information:
Designation | Mass | Dimensions | Dimensions | t | Setscrew | Basic Load Ratings | Limiting | |||||||||||
d | D | B | d1 | D1 | r | r1 | J | d2 | b | l | Cr | Cor | Speed | |||||
-0.25 | min. | min. | min. | min. | min. | spec | amount | Dynamic | Static | grease | ||||||||
Kg | mm | mm | Q'ty×t | kN | Rpm | |||||||||||||
ZKLF 1255.2RS | 0.37 | 12 | 55 | 25 | 25 | 33.5 | 0.3 | 0.6 | 42 | 6.5 | 3 | 17 | 3×120° | M6 | 3 | 17 | 24.7 | 3800 |
ZKLF 1255.2Z | 0.37 | 12 | 55 | 25 | 25 | 33.5 | 0.3 | 0.6 | 42 | 6.5 | 3 | 17 | 3×120° | M6 | 3 | 17 | 24.7 | 7600 |
ZKLF 1560.2RS | 0.43 | 15 | 60 | 25 | 28 | 36 | 0.3 | 0.6 | 46 | 6.5 | 3 | 17 | 3×120° | M6 | 3 | 17.9 | 28 | 3500 |
ZKLF 1560.2Z | 0.43 | 15 | 60 | 25 | 23 | 12 | 0.3 | 0.6 | 46 | 6.5 | 3 | 17 | 3×120° | M6 | 3 | 17.9 | 28 | 7000 |
ZKLF 1762.2RS | 0.45 | 17 | 62 | 25 | 23 | 12 | 0.3 | 0.6 | 48 | 6.5 | 3 | 17 | 3×120° | M6 | 3 | 18.8 | 31 | 3300 |
ZKLF 1762.2Z | 0.45 | 17 | 62 | 25 | 25 | 14 | 0.3 | 0.6 | 48 | 6.5 | 3 | 17 | 3×120° | M6 | 3 | 18.8 | 31 | 6600 |
ZKLF 2068.2RS | 0.61 | 20 | 68 | 28 | 25 | 14 | 0.3 | 0.6 | 53 | 6.5 | 3 | 19 | 4×90° | M6 | 4 | 26 | 47 | 3000 |
ZKLF 2068.2Z | 0.61 | 20 | 68 | 28 | 30 | 16 | 0.3 | 0.6 | 53 | 6.5 | 3 | 19 | 4×90° | M6 | 4 | 26 | 47 | 5400 |
ZKLF 2575.2RS | 0.72 | 25 | 75 | 28 | 30 | 16 | 0.3 | 0.6 | 58 | 6.5 | 3 | 19 | 4×90° | M6 | 4 | 27.5 | 55 | 2600 |
ZKLF 2575.2Z | 0.72 | 25 | 75 | 28 | 32 | 20 | 0.3 | 0.6 | 58 | 6.5 | 3 | 19 | 4×90° | M6 | 4 | 27.5 | 55 | 4700 |
ZKLF 3080.2RS | 0.78 | 30 | 80 | 28 | 32 | 20 | 0.3 | 0.6 | 63 | 6.5 | 3 | 19 | 6×60° | M6 | 6 | 29 | 64 | 2200 |
ZKLF 3080.2Z | 0.78 | 30 | 80 | 28 | 34 | 23 | 0.3 | 0.6 | 63 | 6.5 | 3 | 19 | 6×60° | M6 | 6 | 29 | 64 | 4300 |
ZKLF 3590.2RS | 1.13 | 35 | 90 | 34 | 34 | 23 | 0.3 | 0.6 | 75 | 8.5 | 3 | 25 | 4×90° | M8 | 4 | 41 | 89 | 2000 |
ZKLF 3590.2Z | 1.13 | 35 | 90 | 34 | 40 | 25 | 0.3 | 0.6 | 75 | 8.5 | 3 | 25 | 4×90° | M8 | 4 | 41 | 89 | 3800 |
ZKLF 40100.2RS | 1.46 | 40 | 100 | 34 | 40 | 25 | 0.3 | 0.6 | 80 | 8.5 | 3 | 25 | 4×90° | M8 | 4 | 43 | 101 | 1800 |
ZKLF 40100.2Z | 1.46 | 40 | 100 | 34 | 45 | 32 | 0.3 | 0.6 | 80 | 8.5 | 3 | 25 | 4×90° | M8 | 4 | 43 | 101 | 3300 |
ZKLF 50115.2RS | 1.86 | 50 | 115 | 34 | 45 | 32 | 0.3 | 0.6 | 94 | 8.5 | 3 | 25 | 6×60° | M8 | 6 | 46.5 | 126 | 1500 |
ZKLF 50115.2Z | 1.86 | 50 | 115 | 34 | 50 | 40 | 0.3 | 0.6 | 94 | 8.5 | 3 | 25 | 6×60° | M8 | 6 | 46.5 | 126 | 3000 |
ZKLF 60145.2Z | 4.3 | 60 | 145 | 45 | 50 | 40 | 0.3 | 0.6 | 120 | 8.5 | 3 | 35 | 6×60° | M8 | 8 | 84 | 214 | 3000 |
ZKLF 70155.2Z | 4.9 | 70 | 155 | 45 | 59 | 45 | 0.3 | 0.6 | 130 | 8.5 | 3 | 35 | 8×45° | M8 | 8 | 88 | 241 | 2800 |
ZKLF 80165.2Z | 5.3 | 80 | 165 | 45 | 59 | 45 | 0.3 | 0.6 | 140 | 8.5 | 3 | 35 | 8×45° | M8 | 8 | 91 | 265 | 2700 |
ZKLF 90190.2Z | 8.7 | 90 | 190 | 55 | 64 | 50 | 0.3 | 0.6 | 165 | 10.5 | 3 | 45 | 8×45° | M10 | 8 | 135 | 395 | 2300 |
ZKLF 100200.2Z | 9.3 | 100 | 200 | 55 | 64 | 50 | 0.3 | 0.6 | 175 | 10.5 | 3 | 45 | 8×45° | M10 | 8 | 140 | 435 | 2150 |
