Home /Products/Angular Contact Ball Bearing/CPM2513 Anti Rust bearings For Concrete Mixer Truck

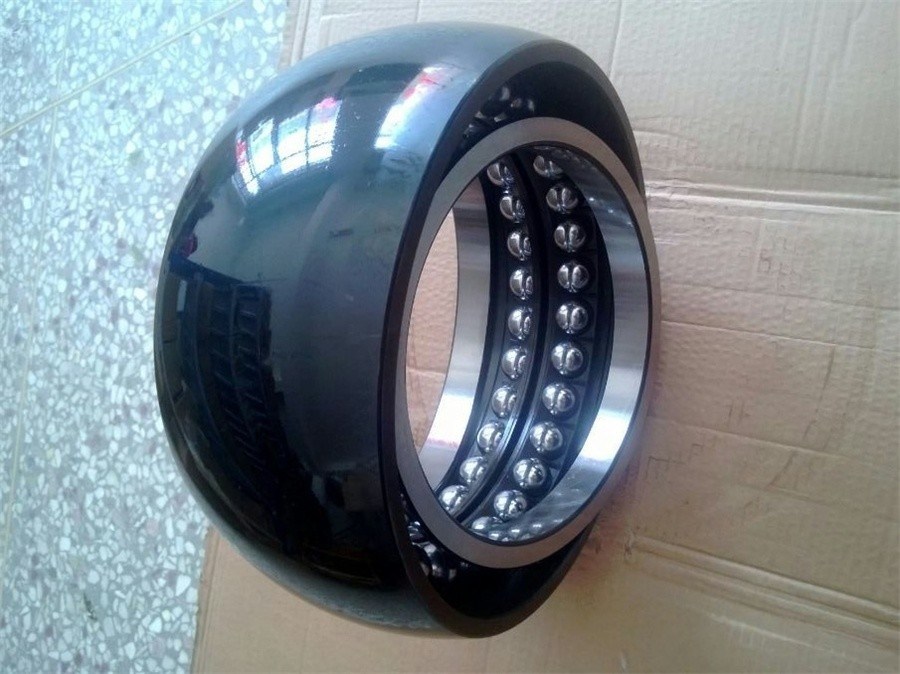

CPM2513 Anti Rust bearings For Concrete Mixer Truck

1
MOQ
USD
Price
CPM2513 Anti Rust bearings For Concrete Mixer Truck
Features Gallery Product Description Request A Quote
Features
Specifications
Material: GCr15 Or GCr15SiMn
Accuracy: P0 Or P6 Or P5
Market: Europe Or USA
Aplication: Concrete Mixer
Coating: Spercial Coating For Anti-rust
Types: Angular Contact Ball Bearings Or Spherical Roller Bearings
Highlight:

angular contact thrust bearing

,

thin section angular contact bearings
Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: CPM2513
Payment & Shipping Terms
Packaging Details: Singlebox
Delivery Time: 7-35 days
Payment Terms: T/T
Supply Ability: 10000PCS/WEEK
Product Description

Concrete Mixer Bearing CPM2513



Brand Monton
Name Concrete Mixer Bearing
Model CPM2513
Material Bearing steel Outside diameter ISO9001:2001
Precision ABEC-1,ABEC 3,ABEC5
Bore Size: 30mm-1000mm Outside diameter 50mm-1200mm
Clearance Co, C2, C3, C4
Cage Type peek
Seals Type open
Features They can sustain radial loads mainly and can also sustain some axial load in either direction. The bearings have low friction and very little noise or vibration, These characteristics make them to be available for situations of high speed, high precision, low friction and low noise operations.
Application Concrete mixer
Package pallet, wooden case,industrial package or as customers' requirement
Price FOB, CFR, CIF Delivery Time 5-10 days





Concrete Mixer Truck Reducer Bearing CPM2513 have two spherical rollers, the outer ring raceway is in spherical shape. This bearing has a function of automatic self-aligning, so can compensate the error caused by the axial deformation or housing units. The roller and raceway of the Concrete Mixer Truck Reducer Bearing CPM2513 are for line contact, then the bearing can stand a bigger radial load and axial load.



Item NO. ID OD Width Weight(kg)
CPM2513 200 300 70.12/118 20
40779 200 300 70.12/118 20
PLC110/190 110 190 - 8
8H312 110 190 - 8
540626AA 100 150 61/50 3.5
800730 100 160 66/61 4
400365 100 160 66/61 4
BS2B 248180 100 165 65/52 5
809280 100 165 65/52 5
11449 100 180 82/69 8
PLC59-5 100 180 82/69 8
801806 110 180 82/74 8
400903 110 180 82/74 8
534176 110 180 82/69 8
PLC59-10 110 180 82/69 8
804312A 120 215 80/58 10
809281 120 215 98/76 14
801215A 100 160 66/61 4
579905AA 110 180 82/74 8
579905A 110 180 82/69 8
H4832 100 165 65/52 5
TX1010 200 300 70.126 -
BS2-3046 120 215 80/58 10
801804
295493


CPM2513 concrete mixer bearing and spherical roller bearing CPM2513 are specially used in concrete mixer,and industrial area.



CPM2513 bearings


Here's some other bearing used for concrete mixer trucks, pls contact us if you interested in it:



PLC59-5 100*180*69/82
PLC59-10 110*180*69/82
801806 110*180*74/82
579905A 110*180*74/82
579905AA 110*180*69/82
534176 110*180*69/82
801215A 100*160*61/66
BS2B 248180 100*165*52/65
2P2206 110*180*69/82
809280 100*165*52/65
11449 100*180*69/82
400365 100*160*61/66
804312A 120*215*58/80
Z-534175.PRL 100*180*82
F-809280.PRL 100*165*52/65
PLC58-6 100*150*65/50
GB 40779 S01 200*300*118
540626AA.J30CNF 100*150*50/62
800730 100*160*61/66
F-800730.PRL 100*160*61/66
F-801806.PRL 110*180*74/82
2513D11 200*300*118
F-809281.PRL 120*215*98
8H312 110*190*82/86
801806 110*180*74/82
549176 185*220*118
PLC110/190 110*190*82



NEW MODEL OLD MODEL d D B Cr Cor kg
352226X2-2RZ 　 130 230 150 882 1590 30
352226X2D1-2RZ 　 129.5 230 150 882 1590 30
352226X2-2RZ 　 130 230 150 882 1590 30
352226X2D1-2RZ 　 129.5 230 150 882 1590 30
　 197726 130 230 150 400 600 30.2
353130X2-2RZ 　 150 250 160 962 1926 35.4
353130X2D1-2RZ 　 149.5 250 160 962 1926 35.4
NJ3226X1 　 130 250 80 604 807 18.3
NJP3226X1 　 130 250 80 604 807 18.3
NJ3226X1K1 　 129.5 250 80 604 807 18.3
NJP3226X1K1 　 129.5 250 80 604 807 18.3
NJ3226X1K2 　 129 250 80 604 807 18.3
NJP3226X1K2 　 129 250 80 604 807 18.3
　 42726QT 130 250 80 546.8 473.3 18.7
　 152726QT 130 250 80 546.8 473.3 18.7
　 42726KQT 129.5 250 80 546.8 473.3 18.7
　 152726KQT 129.5 250 80 546.8 473.3 18.7
　 42726K1QT 129 250 80 546.8 473.3 18.7
　 152726K1QT 129 250 80 546.8 473.3 18.7
　 42724QT 120 240 80 477.3 407.3 17.2
　 152724QT 120 240 80 477.3 407.3 17.2
　 42724KQT 119.5 240 80 477.3 407.3 17.2
　 152724KQT 119.5 240 80 477.3 407.3 17.2
　 42724K1QT 119 240 80 477.3 407.3 17.2
　 152724K1QT 119 240 80 477.3 407.3 17.2





The spherical roller bearings
Concrete Mixer Truck bearings including:
CPM2513

The double row angular contact ball bearings
The cylindrical roller bearings







Tag:

deep groove ball bearing

car ball bearing

ball bearing contact angle
