Bearing features
Low friction
The optimized roller end design and surface finish on the flange promote lubricant film formation, resulting in lower friction. This also reduces frictional heat and flange wear. In addition, the bearings can better maintain preload and run at reduced noise levels.
Long service life
The crowned raceway profiles of basic design bearings and the logarithmic raceway profiles of Explorer bearings optimize the load distribution along the contact surfaces, reduce stress peaks at the roller ends , and reduce the sensitivity to misalignment and shaft deflection compared with conventional straight raceway profiles.
Enhanced operational reliability
Optimized surface finish on the contact surfaces of the rollers and raceways supports the formation of a hydrodynamic lubricant film.
Consistency of roller profiles and sizes
The rollers incorporated in tapered roller bearings are manufactured to such close dimensional and geometrical tolerances that they are practically identical. This provides optimal load distribution, reduces noise and vibration, and enables preload to be set more accurately.
Rigid bearing application
A single row tapered roller bearing is typically adjusted against a second tapered roller bearing. By applying a preload, a rigid bearing application can be achieved.
Running-in period with reduced temperature peaks
Tapered roller bearings typically have a running-in period, during which a conventional design tapered roller bearing experiences a significant amount of friction, resulting in wear. This effect is noticed as a temperature spike (diagram 1). With tapered roller bearing designs, friction, frictional heat and wear are significantly reduced, provided the bearings are mounted and lubricated correctly.
Separable and interchangeable

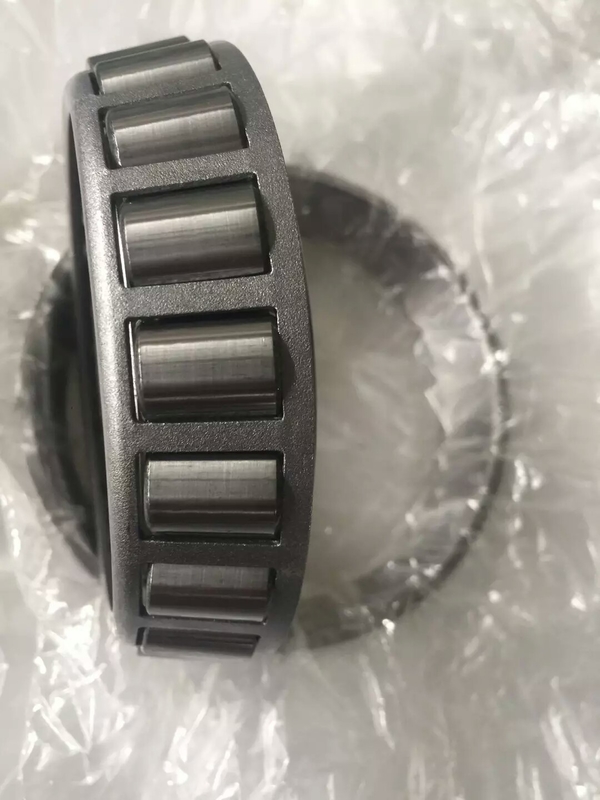

Depending on the design, tapered roller bearings are separable and components of same-sized bearings are fully interchangeable. For example, single row tapered roller bearings are separable , i.e. the inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup). This facilitates mounting, dismounting and also maintenance inspection routines.
As different row configurations for rollers are required, tapered roller bearings can also be divided to double row tapered roller bearings and four row tapered roller bearings. These bearings have the advantage of combined load capacity in both radial and axial environments. Compared to other bearings of the same size, these tapered roller bearings have a relatively longer working life.
Tapered roller bearings are widely used in heavy-duty gear drives, mining,gear reduction units, plastics machinery and a host of other industries.
We can help our customers meet their requirements for branded bearings. Please call us or email to check on our latest prices, stock availability and to request product data sheets.
Series |
126000 |
Cone Part Number |
EE126097 |
Cup Part Number |
126151CD |
Design Units |
Imperial |
Bearing Weight |
140.49 lb63.723 Kg |
Cage Type |
Stamped Steel |
Ab - Cage-Cone Frontface Clearance |
0.13 in3.3 mm |
d - Bore |
9.6250 in244.475 mm |
D - Cup Outer Diameter |
15.0000 in381.000 mm |
B - Cone Width |
3.0000 in76.200 mm |
C - Double Cup Width |
5.0000 in127.000 mm |
T - Bearing Width across Cones |
6.7500 in171.450 mm |
| R - Cone Backface "To Clear" Radius1 | 0.25 in6.400 mm |
| r - Cup Frontface "To Clear" Radius2 | 0.06 in1.5 mm |
db - Cone Backface Backing Diameter |
10.83 in275.10 mm |
Da - Cup Frontface Backing Diameter |
14.25 in361.95 mm |
Aa - Cage-Cone Backface Clearance |
0.49 in12.4 mm |
| C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)3 | 52900 lbf235000 N |
| C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)4 | 355000 lbf1580000 N |
| C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)5 | 92100 lbf410000 N |
| Ca90 - Dynamic Thrust Rating (90 million revolutions)6 | 46800 lbf208000 N |
| K - Factor7 | 1.13 |
| e - ISO Factor8 | 1.17 |
| Y1 - ISO Factor9 | 0.580.86 |
| Y2 - ISO Factor10 | 0.86 |
| G1 - Heat Generation Factor (Roller-Raceway)11 | 1320 |
G2 - Heat Generation Factor (Rib-Roller End) |
169 |
| Cg - Geometry Factor12 | 0.164 |
Tapered roller bearings have tapered inner and outer ring raceways as well as tapered rollers. They are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads. The projection lines of the raceways meet at a common point on the bearing axis to provide a true rolling action and therefore low frictional moments during operation. The axial load carrying capacity of tapered roller bearings increases with increasing contact angle α. The size of the contact angle, which is usually between 10° and 30°, is related to the calculation factor : the larger the value of e, the larger the contact angle.
Tapered roller bearings are uniquely designed to manage both thrust and radial loads. Consisting of a "tapered cup" and a "tapered cone", this design is one of the most basic and common styles in the bearing industry. Found in everything from cars to conveyor lines, tapered roller bearings are more versatile than any other bearing series. Our taper bearings are sold in sets with both the cup and the cone together.
