HH221449 - HH221410D

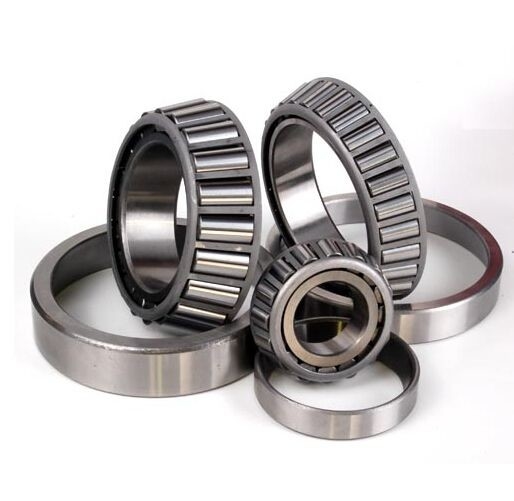

Tapered Roller Bearings precision machine tool bearing factory
67782 / 67720D+L
170KBE2501+L
170KBE30+L
170KBE030+L
170KBE31+L
170KBE031+L
170KBE2801+L
170KBE2803+L
170KBE2802+L
170KBE042+L
170KBE42+L
HR170KBE52X+L
170KBE3201+L
M235149 / M235113D+L
94675 / 94114D+L
94675 / 94118D+L
67787 / 67720D+L
HM237542 / HM237510D+L
HM237542 / HM237511D+L
175KBE3201+L
36990 / 36920D+L
67790 / 67720D+L
67791 / 67720D+L
M238840 / M238810D+L
EE91702 / 91113XD+L
HM237545 / HM237510D+L
94700 / 94114D+L
HM237545 / HM237511D+L
HM237545 / HM237511XD+L
94700 / 94118D+L
EE222070 / 222127D+L
H239640 / H239612D+L
177KBE3251+L
EE420701 / 421451D+L
93708 / 93127D+L
93708 / 93128XD+L
180KBE30+L
180KBE030+L
180KBE2902+L
180KBE31+L
180KBE031+L
180KBE42+L
HR180KBE52X+L
180KBE3401+L
LL537649 / LL537610D+L
67883 / 67820D+L
184KBE2851+L
184KBE2951+L
67884 / 67820D+L
M238849 / M238810D+L
H239649 / H239612D+L
190KBE2601+L
190KBE30+L
190KBE030+L
190KBE31+L
190KBE031+L
190KBE3201+L
190KBE42+L
HR190KBE52X+L
67885 / 67820D+L
87750 / 87112D+L
93750 / 93127D+L
L540049 / L540010D+L
93775 / 93127D+L
200KBE2901+L
200KBE30+L
200KBE030+L
HR200KBE3101+L
200KBE3201+L
200KBE3301+L
200KBE31+L
200KBE031+L
200KBE3401+L
200KBE3502+L
200KBE3501+L
200KBE42+L
HR200KBE52+L
EE130787 / 131401D+L
EE130787 / 131402D+L
H247535 / H247510D+L
EE420793 / 421451D+L
LM241149 / LM241110D+L
67983 / 67920D+L
M241547 / M241510D+L
EE132083 / 132126D+L
93800 / 93127D+L
93800 / 93128D+L
EE420801 / 421451D+L
206KBE2801+L
67985 / 67920D+L
EE132084 / 132126D+L
H242649 / H242610D+L
93825 / 93127D+L
HM743345 / HM743310D+L
96825 / 96140D+L
210KBE3001+L
210KBE31+L
210KBE3601+L
LM742745 / LM742710D+L
LM742749 / LM742710D+L
EE130851 / 131401D+L
EE820085 / 820161D+L
220KBE3001+L
220KBE30+L
220KBE030+L
220KBE31+L
220KBE031+L
220KBE042+L
220KBE42+L
M244249 / M244210D+L
EE130889 / 131401D+L
EE430888 / 431576D+L
8573 / 8520D+L
EE130902 / 131401D+L
96900 / 96140D+L
HM746646 / HM746610D+L
EE130902 / 131402D+L
EE430900 / 431576D+L
EE700091 / 700168D+L
230KBE3801+L
230KBE4002+L
230KBE4101+L
LM446349 / LM446310D+L
8575 / 8520D+L
96925 / 96140D+L
H247549 / H247510D+L
240KBE030+L
240KBE3601+L
240KBE31+L
240KBE031+L
240KBE4002+L
8578 / 8520D+L
EE127095 / 127136D+L
EE127095 / 127137D+L
EE127095 / 127139D+L
EE275095 / 275156D+L
EE275095 / 275161D+L
H249148 / H249111D+L
EE923095 / 923176D+L
EE295950 / 295192D+L
EE126097 / 126151D+L
EE126098 / 126151D+L
250KBE3801+L
29875 / 29820D+L
LM249748 / LM249710D+L
M249749 / M249710D+L
EE134100 / 134144D+L
EE275100 / 275156D+L
EE551002 / 551664D+L
HM252343 / HM252311D+L
HM252343 / HM252310D+L
EE551002 / 551701D+L
EE941002 / 941953D+L
260KBE30+L
260KBE030+L
260KBE4001+L
260KBE31+L
260KBE4401+L
260KBE031+L
260KBE4403+L
EE134102 / 134144D+L
EE221026 / 221576D+L
EE128102 / 128160D+L
HM252349 / HM252311D+L
HM252349 / HM252310D+L
EE551026 / 551663D+L
EE295102 / 295192D+L
76587 / 76520D+L
LM451349 / LM451310D+L
76590 / 76520D+L
LM451349 / LM451312D+L
EE275105 / 275156D+L
EE275105 / 275161D+L
EE551050 / 551663D+L
EE551050 / 551701D+L
M252349 / M252310D+L
270KBE3501+L
290KBE4001+L
290KBE4002+L
EE722115 / 722186D+L
EE224115 / 224205D+L
EE790114 / 790223D+L
EE291175 / 291751D+L
300KBE4202+L
300KBE30+L
300KBE030+L
300KBE31+L
300KBE031+L
300KBE5002+L
300KBE6001+L
HM256849 / HM256810D+L
L357049 / L357010D+L
EE109120 / 109163D+L
EE291201 / 291751D+L
EE941205 / 941953D+L
EE724120 / 724196D+L
EE790120-N1 / 790223D+L
310KBE4701+L
EE291250 / 291751D+L
HM259049 / HM259010D+L
320KBE30+L
320KBE030+L
320KBE4801+L
320KBE5401+L
320KBE31+L
320KBE031+L
EE971298 / 972102D+L
EE971298 / 972103D+L
EE971298 / 972151D+L
330KBE5001+L
EE161300 / 161901D+L
EE526130 / 526191D+L
330KBE5202B+L
HM261049 / HM261010D+L
340KBE5001+L
340KBE30+L
340KBE030A+L
340KBE31+L
340KBE031+L
340KBE5801+L
EE971354 / 972102D+L
EE971354 / 972103D+L
EE971354 / 972151D+L
EE161363 / 161901D+L
HM262749 / HM262710D+L
EE333137 / 333203D+L
355KBE5101+L
L163149 / L163110D+L
EE161400 / 161901D+L
EE231400 / 231976D+L
EE333140 / 333203D+L
360KBE30+L
360KBE030+L
360KBE5601A+L
360KBE31+L
360KBE031+L
360KBE6001+L
EE181453 / 182351D+L
EE231462 / 231976D+L
EE231462 / 232026D+L
380KBE30+L
380KBE030B+L
380KBE31+L
380KBE031A1+L
EE192150 / 192201D+L
HM266447 / HM266410D+L
HM266449-N3 / HM266410D+L
385KBE5501+L
390KBE6002+L
390KBE6001+L
390KBE6003+L
EE234154 / 234213D+L
EE234154 / 234216D+L
EE234154 / 234223D+L
EE234156 / 234213D+L
EE234156 / 234216D+L
400KBE5401+L
400KBE30+L
400KBE030+L
400KBE31D+L
400KBE031B+L
EE234160 / 234213D+L
EE234160 / 234216D+L
M667944 / M667910D+L
M667944 / M667911D+L
EE285160 / 285228D+L
EE736160-N1 / 736239D+L
EE911600 / 912401D+L
EE571602 / 572651D+L
EE285162 / 285228D+L
EE911618 / 912401D+L
M268749 / M268710D+L
420KBE6001A+L
420KBE30+L
420KBE030+L
420KBE31C+L
420KBE7001+L
420KBE031B1+L
EE328167-N1 / 328268D+L
150KF2502
150KF2501WA
NA81600 / 81963D
NA99600 / 99102D
152KF2551
165KF2201
165KF2951
NA46790 / 46720D
HM237536NA / HM237510D
NA94650 / 94114D
NA94650 / 94118D
NA46791 / 46720D
170KF2601
170KF3101
NA67787 / 67720D
NA67790 / 67720D
NA87700 / 87112D
HM237545NA / HM237510D
NA94700 / 94114D
NA94700 / 94118D
178KF2801
180KF2901
H239649NA / H239612D
NA222075 / 222127D
NA537075 / 537103D
LM241149NW / LM241110D
NA132083 / 132126D
NA93800 / 93127D
205KF3201
209KF3151
220KF3402
NA130902 / 131401D
230KF3501WA
LM446349NW / LM446310D
NA170950 / 171451D
NA127096 / 127136D
LM249747NW / LM249710D
HM252344NA / HM252311D
NA551002 / 551701D
HM252343NA / HM252315D
260KF3901X
260KF3901
NA221026 / 221576D
HM252349NA / HM252315D
LM251649NW / LM251610D
NA101103 / 101601D
NA329116 / 329173D
L357049NW / L357010D
NA329120 / 329173D
NA291201 / 291751D
NA231400 / 231976D
NA231400 / 232026D
NA285160 / 285228D
100KH1501A+K
868D / 854+K
868D / 854X+K
105KH1701+K
71426D / 71750+K
946D / 932+K
71450D / 71750+K
HH224346DD / HH224310+K
938D / 932+K
120KH1701A+K
120KH1851+K
95474D / 95925+K
48290D / 48220+K
95499D / 95925+K
EE153053D / 153100+K
130KH1901+K
130KH2603+K
74510D / 74850+K
74512D / 74850+K
67390D / 67322+K
133KH2151+K
135KH2301+K
H228649D / H228610+K
48680D / 48620+K
Series |
HH221400 |
Cone Part Number |
HH221449 |
Cup Part Number |
HH221410D |
Design Units |
Imperial |
Bearing Weight |
32.36 lb14.68 Kg |
Cage Type |
Stamped Steel |
Ab - Cage-Cone Frontface Clearance |
0.16 in4.1 mm |
d - Bore |
4.0000 in101.600 mm |
D - Cup Outer Diameter |
7.5 in190.5 mm |
B - Cone Width |
2.2650 in57.531 mm |
C - Double Cup Width |
4.1250 in104.775 mm |
T - Bearing Width across Cones |
4.9999 in126.997 mm |
| R - Cone Backface "To Clear" Radius1 | 0.310 in7.900 mm |
| r - Cup Frontface "To Clear" Radius2 | 0.06 in1.5 mm |
db - Cone Backface Backing Diameter |
5.16 in131.10 mm |
Da - Cup Frontface Backing Diameter |
7.06 in179.32 mm |
Aa - Cage-Cone Backface Clearance |
0.08 in2 mm |
| C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)3 | 31100 lbf138000 N |
| C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)4 | 209000 lbf929000 N |
| C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)5 | 54200 lbf241000 N |
| Ca90 - Dynamic Thrust Rating (90 million revolutions)6 | 17800 lbf79300 N |
| K - Factor7 | 1.74 |
| e - ISO Factor8 | 0.7 |
| Y1 - ISO Factor9 | 0.961.43 |
| Y2 - ISO Factor10 | 1.43 |
| G1 - Heat Generation Factor (Roller-Raceway)11 | 266 |
G2 - Heat Generation Factor (Rib-Roller End) |
28.4 |
| Cg - Geometry Factor12 | 0.107 |
