Name: GEG40ES-2RS Lubricated Precise Steel Spherical Plain Bearing For Motor
Brand: MONTON
SKU: GEG40ES-2RS
Rating: 5 (121 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Spherical Plain Bearing

Modle Number: GEG40ES-2RS

Design: Steel

High Light:

angular contact thrust bearing

thin section angular contact bearings

Basic Infomation

Place of Origin: CHINA

Brand Name: MONTON

Certification: ISO9001

Model Number: GEG40ES-2RS

Payment & Shipping Terms

Packaging Details: Singlebox

Delivery Time: 7-35 days

Payment Terms: T/T

Supply Ability: 10000PCS/WEEK

Gallery

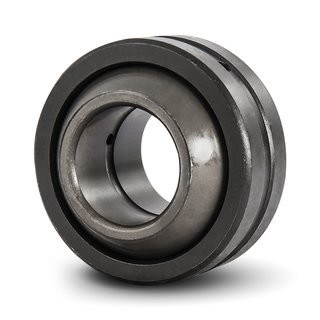

GEG40ES-2RS Lubricated Precise Steel Spherical Plain Bearing For Motor

Product Description

GEG40ES-2RS

Lubricant			Regular relubrication – grease
Design (sliding contact surface combination)			Steel/steel
Sealing solution			-

Dimensions

d		40	mm
D		62	mm
B		40	mm
C		22	mm
α		4	°
d_k		53	mm
d₁	≈	46	mm
b		3.9	mm
b₁		3.9	mm
M		2.5	mm
r₁	min.	0.6	mm
r₂	min.	1	mm

Abutment dimensions

d_a	min.	44.8	mm
d_a	max.	46	mm
D_a	min.	50.3	mm
D_a	max.	57.8	mm
r_a	max.	0.6	mm
r_b	max.	1	mm

Calculation data

Basic dynamic load rating	C	100	kN
Basic static load rating	C₀	500	kN
Specific dynamic load factor	K	100	N/mm²
Specific static load factor	K₀	500	N/mm²
Material constant	K_M	330

GEG40ES-2RS Lubricated Precise Steel Spherical Plain Bearing For Motor 2

Mass

Mass plain bearing

0.34

Bearing NO.		Dimenisions						Load ratings		Weight
		Dimenisions						Load ratings
		d	D	B	C	dk	α°
		d	D	B	C	dk	≈	Dynamic	Static
NJSKT		mm						KN		KG
GEG15ES	GEG15ES-2RS	15	30	16	10	25	16	21	106	0.048
GEG17ES	GEG17ES-2RS	17	35	20	12	29	19	30	146	0.08
GEG20ES	GEG20ES-2RS	20	42	25	16	35.5	17	48	240	0.152
GEG25ES	GEG25ES-2RS	25	47	28	18	40.7	17	62	310	0.199
GEG30ES	GEG30ES-2RS	30	55	32	20	47	17	79	399	0.296
GEG35ES	GEG35ES-2RS	35	62	35	22	53	16	99	495	0.402
GEG40ES	GEG40ES-2RS	40	68	40	25	60	17	127	637	0.535
GEG45ES	GEG45ES-2RS	45	75	43	28	66	15	156	780	0.698
GEG50ES	GEG50ES-2RS	50	90	56	36	80	17	245	1220	1.42
GEG60ES	GEG60ES-2RS	60	105	63	40	92	17	313	1560	2.09
GEG70ES	GEG70ES-2RS	70	120	70	45	105	16	400	2000	3.01
GEG80ES	GEG80ES-2RS	80	130	75	50	115	14	488	2440	3.61
GEG90ES	GEG90ES-2RS	90	150	85	55	130	15	607	3030	5.5
GEG100ES	GEG100ES-2RS	100	160	85	55	140	14	654	3270	6.04
GEG110ES	GEG110ES-2RS	110	180	100	70	160	12	950	4750	9.74
GEG120ES	GEG120ES-2RS	120	210	115	70	180	16	1070	5350	15.1
GEG140ES	GEG140ES-2RS	140	230	130	80	200	16	1360	6800	18.9
GEG160ES	GEG160ES-2RS	160	260	135	80	225	16	1530	7650	24.8
GEG180ES	GEG180ES-2RS	180	290	155	100	250	14	2120	10600	35.9
GEG200ES	GEG200ES-2RS	200	320	165	100	275	15	2320	11600	44.9
GEG220ES	GEG220ES-2RS	220	340	175	100	300	16	2550	12700	50.9
GEG240ES	GEG240ES-2RS	240	370	190	110	325	15	3030	15190	65.3
GEG260ES	GEG260ES-2RS	260	400	205	120	350	15	3570	17850	82
GEG280ES	GEG280ES-2RS	280	430	210	120	375	15	3800	19100	96.6

We can produce the following series of spherical plain bearing:
GE…E,GE…ES,GE…ES-2RS,GEC…XS,GEC…XS-2RS,GEEW…ES,GEZ…ES-2RS,GEGZ…ES-2RS,GEBJ…S,GEBK…S,GE…ET-2RS,GEG…XT-2RS,GE…XF/Q,GEC…XF/Q,GEH…XF/Q,GEH…HF/Q,GAC…,SI…E,SI…ES,SA…E,SA…ES,SIJ, SAJ,SIZJ,SAZJ,SI…C,SA…C,SI…ET-2RS,SA…ET-2RS,SIJK…C,SAJK…C,SIK…C,SAK…C etc.

ADVANTAGE

1.Excellent and high quality control,high speed,low noise,long life

2.Prompt delivery

3.Competitive price

4.Small order accepted

5.Customers' drawing or samples accepted

6.OEM service
7.Professional:12 years manufacturer
