B1-200-00502 High Performance Industrial Turntable Bearings  Ball Bearing Slewing Ring
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: luoyang
Brand Name: Monton
Model Number: B1-200-00502
High Light:

axial ball bearing

,

ball bearing slewing ring

Payment & Shipping Terms
Packaging Details: Single box/Wooden case
Delivery Time: 7-35 days
Supply Ability: 100
Specifications
Name: Industrial Turntable Bearings
Model: B1-200-00502
Product Description

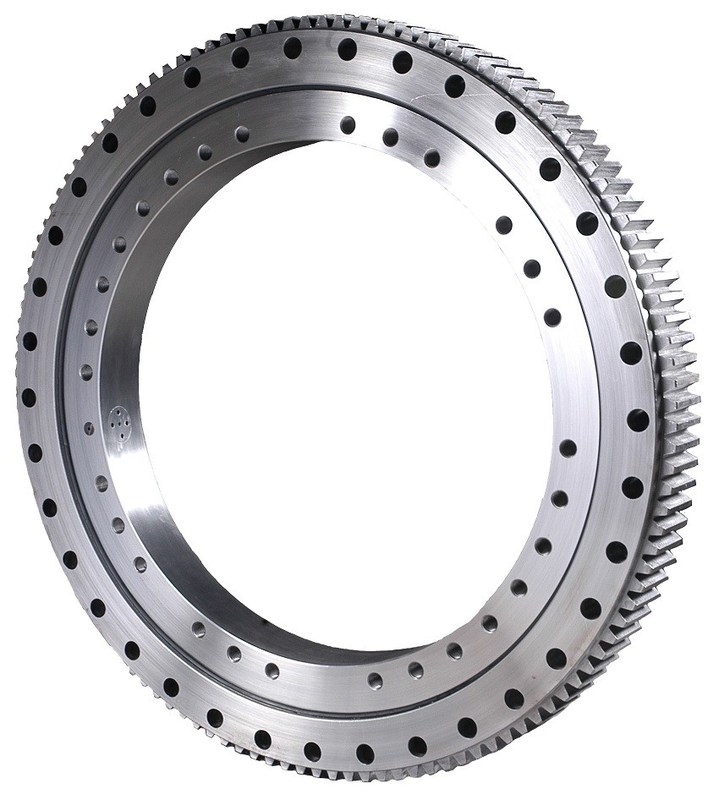

B1-200-00502 (205x335x30mm) Slewing Ring Bearings





Slewing bearing is a bearing that can accommodate large axial load, radial load and overturning moment. Slewing bearings generally have installation holes, inner teeth, outside teeth, lubricants holes and sealing devices, which enable the main frame structural compact, guide reliable, and easy to maintain. Slewing bearings are widely used for lifting machinery, excavating machinery, construction machinery, engineering crane, port machinery and ship machinery, electricity equipment, as well as other larger rotary devices, such as high-precision radar and missile launchers.



Structural features, performance, application scope



Single row four point contact ball slewing bearing two seat, compact structure, light weight, and the ball arc raceway of four point contact, can bear axial force, radial force and overturning moment. Rotary conveyer, welding operation machine, small cranes and excavators and other engineering machinery can be used.

B1-200-00502 High Performance Industrial Turntable Bearings  Ball Bearing Slewing Ring 0

Model DL D d H D1 D2 mm n mm dm L n1 D3 d1 H1 h b x M De z     kg
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm Z 104N T 104N
25 011.75.3150 3376 2922 174 3286 3014 56 45 M42 84 8 3152 3147 162 12 150 0.5 20 3476 171 37.7 52.2 2800
012.75.3150 22 3471.6 155 41.5 57.4
25’ 011.50.3150 3376 2922 174 3286 3014 56 45 M42 84 8 3152 3147 162 12 150 0.5 20 3476 171 37.7 52.2 2800
012.50.3150 22 3471.6 155 41.5 57.4

B1-200-00502 High Performance Industrial Turntable Bearings  Ball Bearing Slewing Ring 1
