ZKLDF180 Zkldf Series Turntable Bearings Manufacturers
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

axial ball bearing

,

ball bearing slewing ring

Basic Infomation
Place of Origin: Luoyang
Brand Name: Monton
Model Number: ZKLDF180
Payment & Shipping Terms
Packaging Details: Single box/Wooden case
Delivery Time: 7-35 days
Product Description

ZKLDF180

ZKLDF180

d 180 mm Sizes d > 460 mm available by agreement
D 280 mm
H 43 mm
  46 Number of fixing holes in inner ring Attention! For fixing holes in the adjacent construction. Note the pitch of the bearing holes.
  2 Number of retaining screws
  45 Number of fixing holes in outer ring Attention! For fixing holes in the adjacent construction. Note the pitch of the bearing holes.
  3 Number of extraction threads
a 6,2 mm Fixing holes in inner ring
D1 244 mm
D2 219 mm
D3 246 mm
d1 7 mm Fixing holes in inner ring
d2 11 mm Fixing holes in inner ring
d3 7 mm Fixing holes in outer ring
G M8 Extraction thread
H1 29 mm
J 194 mm Fixing holes in inner ring
J1 260 mm Fixing holes in outer ring
t 48 x 7,5° Pitch t Including retaining screws and extraction threads Quantity X t
m 7,7 kg ≈ Mass
MA 14 Nm Screw tightening torque Tightening torque for screws to DIN 912, grade 10.9.
Ca 85000 N Basic dynamic load rating, axial
C0a 440000 N Basic static load rating, axial
Cua 13100 N Fatigue limit load, axial
nG 3500 1/min Limiting speed The limiting speeds increased by a factor of two are valid for bearings of the current generation with the internal suffix -B.
caL 1900 N/µm Axial rigidity of bearing position Rigidity values taking account of the rolling element set, rigidity of the bearing rings and the screw connections.
crL 500 N/µm Radial rigidity of bearing position Rigidity values taking account of the rolling element set, rigidity of the bearing rings and the screw connections.
ckL 10700 Nm/mrad Tilting rigidity of the bearing position Rigidity values taking account of the rolling element set, rigidity of the bearing rings and the screw connections.
caL 2800 N/µm Axial rigidity of rolling element set
crL 500 N/µm Radial rigidity of rolling element set
ckL 16000 Nm/mrad Tilting rigidity of rolling element set

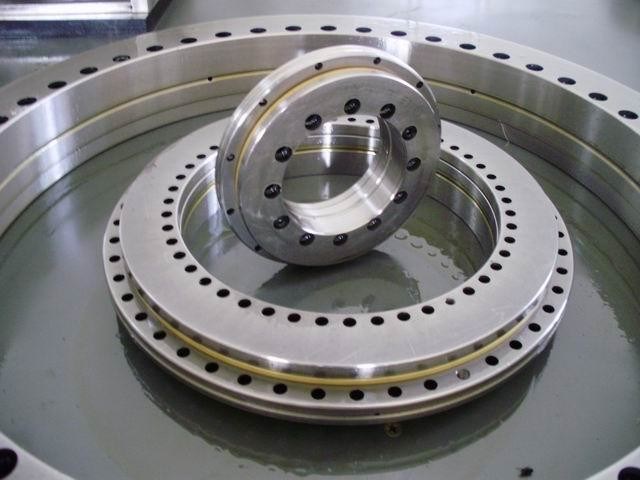

ZKLDF180 Zkldf Series Turntable Bearings Manufacturers 1
