Rotary Table Bearing
>

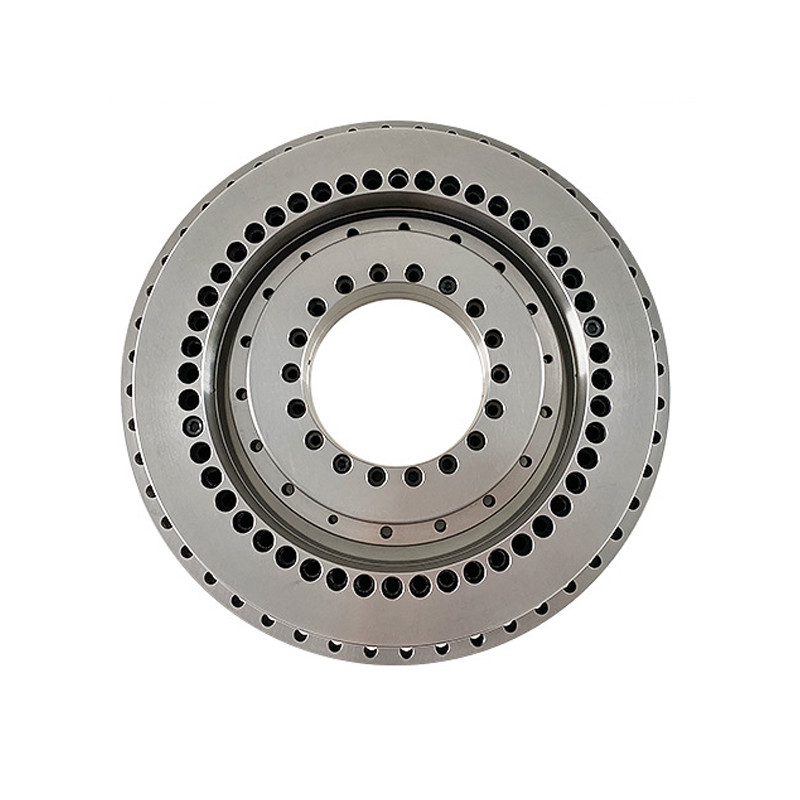

YRT80 yrt bearing made in china

YRT80 yrt bearing made in china

Product Details:
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: YRT80
Detail Information
Place of Origin:
CHINA
Brand Name:
MONTON
Certification:
ISO9001
Model Number:
YRT80
Highlight:

High Light

Highlight:

industrial turntable bearings

,

heavy duty turntable bearings

Trading Information
Minimum Order Quantity:
1
Price:
USD
Packaging Details:
Singlebox
Delivery Time:
7-35 days
Payment Terms:
T/T
Supply Ability:
10000PCS/WEEK
Product Description

YRT80 yrt bearing made in china 0

bearing type Dimensions fixing holes
d D H H1 C D1 J J1 inner ring outer ring
unit: mm d1 d2 a qty d3 qty
mm mm
YRT80 80 146 35 23.35 12 130 92 138 5.6 10 4 10 4.6 12



bearing type Number of retaining screws Extraction thread hole Number of pitches X angle of pitches Screw tightening torque Basic load rating Limiting speed Bearing frictional torque weight
axial radial
dynamic load static load dynamic load static load
MA2) Ca Coa Cr Cor grease
G qty qty×t Nm KN r/min Nm Kg
YRT80 2 12×30° 8.5 56 255 42.5 100 530 3 2.4



Machining tolerances for shafts
Bearings shaft diameter (mm) roundness(○) perpendicularity(⊥) parallelism(∥) roughness Ra
Nominal dimension upper lower t1(µm) t3(µm) t4(µm) Ra(µm)
YRT80 80 0 -0.013 5 3 3 0.4



Machining tolerances for housings
Bearings (mm)housing diameter roundness(○) perpendicularity(⊥) parallelism(∥) roughness Ra
Nominal dimension upper lower t1(µm) t3(µm) t4(µm) Ra(µm)
YRT80 146 +0.018 -0.007 8 5 5 0.8

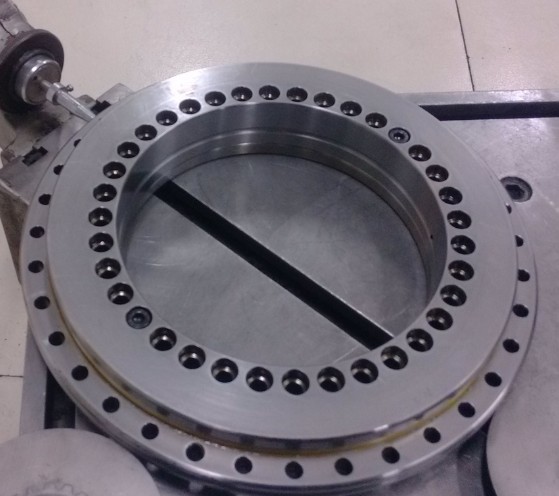

YRT80 yrt bearing made in china 1

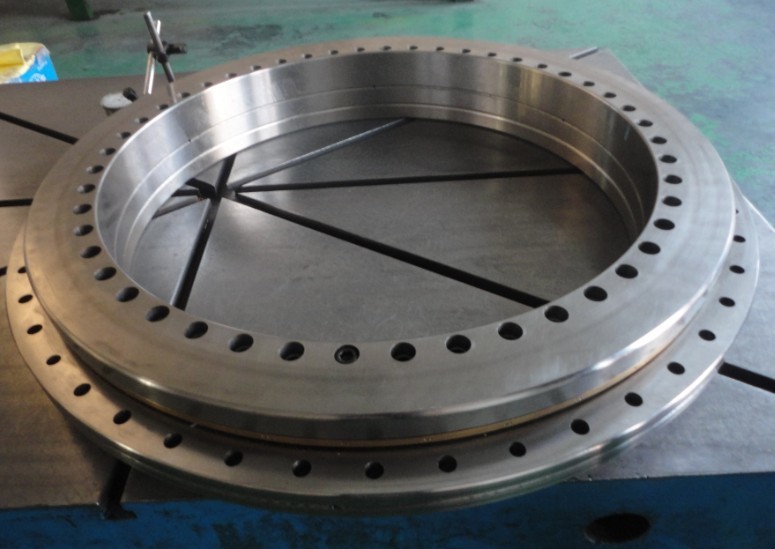

YRT80 yrt bearing made in china 2
