YRT325 yrt series rotary table bearing factory

1pcs
MOQ
USD
Price
YRT325 yrt series rotary table bearing factory
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

industrial turntable bearings

,

heavy duty turntable bearings

Basic Infomation
Place of Origin: luoyang
Brand Name: Monton
Model Number: YRT325
Payment & Shipping Terms
Packaging Details: Single box/Wooden case
Delivery Time: 7-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description

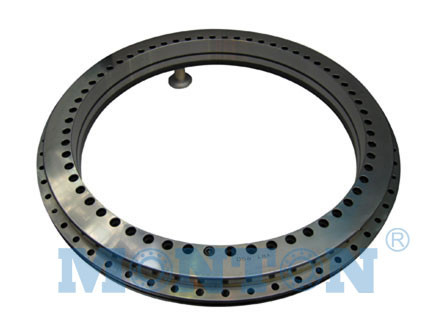

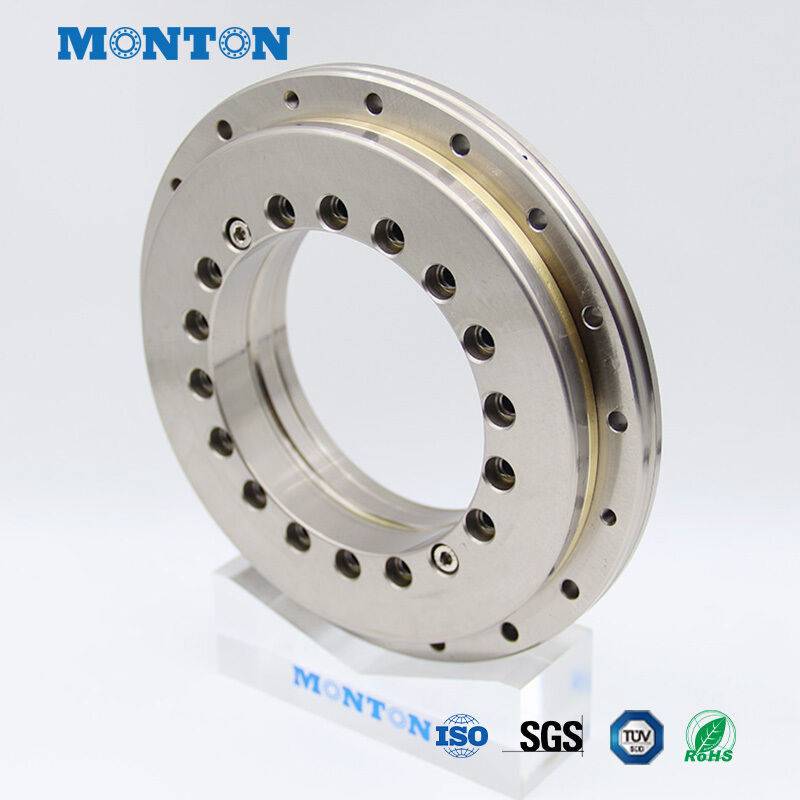

YRT325 yrt series rotary table bearing factory 0YRT325 yrt series rotary table bearing factory 1

bearing type Dimensions fixing holes
d D H H1 C D1 J J1 inner ring outer ring
unit: mm d1 d2 a qty d3 qty
mm mm
YRT325 325 450 60 40 20 415 342 430 9.3 15 8.2 34 9.3 33



bearing type Number of retaining screws Extraction thread hole Number of pitches X angle of pitches Screw tightening torque Basic load rating Limiting speed Bearing frictional torque weight
axial radial
dynamic load static load dynamic load static load
MA2) Ca Coa Cr Cor grease
G qty qty×t Nm KN r/min Nm Kg
YRT325 2 M12 3 36×10° 34 275 1930 120 345 170 40 25



Machining tolerances for shafts
Bearings shaft diameter (mm) roundness(○) perpendicularity(⊥) parallelism(∥) roughness Ra
Nominal dimension upper lower t1(µm) t3(µm) t4(µm) Ra(µm)
YRT325 325 0 -0.025 13 9 9 0.8



Machining tolerances for housings
Bearings (mm)housing diameter roundness(○) perpendicularity(⊥) parallelism(∥) roughness Ra
Nominal dimension upper lower t1(µm) t3(µm) t4(µm) Ra(µm)
YRT325 450 +0.033 -0.007 15 10 10 0.8



YRT325 yrt series rotary table bearing factory

YRT325 yrt series rotary table bearing factory
