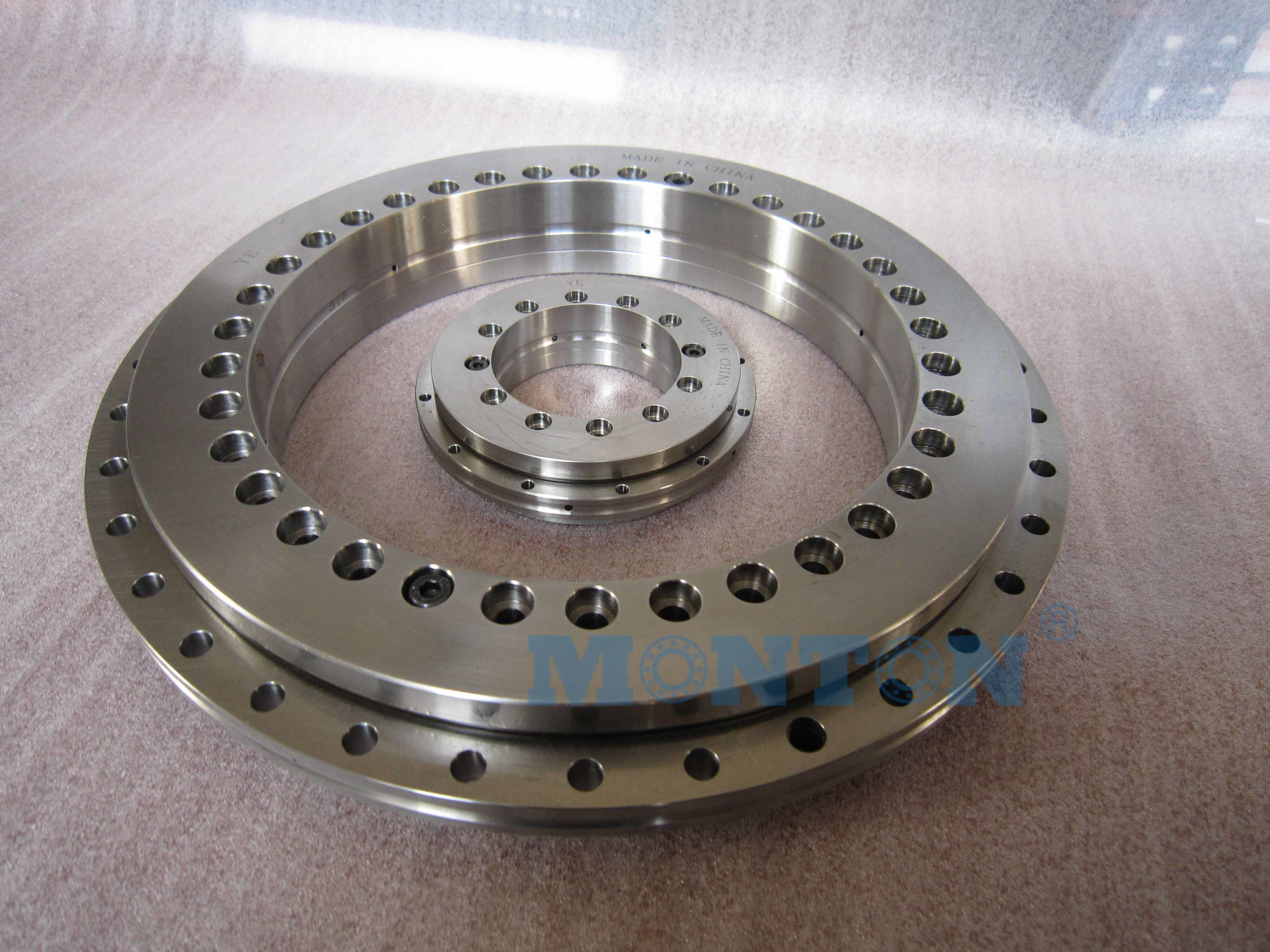

YRT120 yrt rotary bearing made in china

1pcs
MOQ
USD
Price
YRT120 yrt rotary bearing made in china
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

industrial turntable bearings

,

heavy duty turntable bearings
Basic Infomation
Place of Origin: Luoyang
Brand Name: Monton
Model Number: YRT120
Payment & Shipping Terms
Packaging Details: Single box/Wooden case
Delivery Time: 7-35 days
Supply Ability: 1000pcs/week
Product Description

YRT120 yrt rotary bearing made in chinaYRT120 yrt rotary bearing made in china

bearing type Dimensions fixing holes
d D H H1 C D1 J J1 inner ring outer ring
unit: mm d1 d2 a qty d3 qty
mm mm
YRT120 120 210 40 26 12 184 135 195 7 11 6.2 22 7 21



bearing type Number of retaining screws Extraction thread hole Number of pitches X angle of pitches Screw tightening torque Basic load rating Limiting speed Bearing frictional torque weight
axial radial
dynamic load static load dynamic load static load
MA2) Ｃａ Coa Cr Cor grease
G qty qty×t Ｎｍ KN r/min Nm Kg
YRT120 2 M8 3 24×15° 14 102 540 52 143 340 7 5.3



Machining tolerances for shafts
Bearings shaft diameter (mm) roundness(○) perpendicularity(⊥) parallelism(∥) roughness Ra
Nominal dimension upper lower t1(µm) t3(µm) t4(µm) Ra(µm)
YRT120 120 0 -0.015 6 4 4 0.4



Machining tolerances for housings
Bearings (mm)housing diameter roundness(○) perpendicularity(⊥) parallelism(∥) roughness Ra
Nominal dimension upper lower t1(µm) t3(µm) t4(µm) Ra(µm)
YRT120 210 +0.022 -0.007 10 7 7 0.8



YRT120 yrt rotary bearing made in china

YRT120 yrt rotary bearing made in china

Tag:

turn table bearings

industrial turntable bearings

heavy duty turntable bearings
