ZKLDF200 Rotary Table Bearing Turntable Bearings In Stock
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

heavy duty turntable bearings

,

skf turntable bearings

Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: ZKLDF200
Payment & Shipping Terms
Packaging Details: Singlebox
Delivery Time: 7-35 days
Payment Terms: T/T
Supply Ability: 10000PCS/WEEK
Product Description

ZKLDF200 zkldf series turntable bearings in stock

bearing type d D H H1 D1 D2 J J1 inner ring outer ring
unit: mm d1 d2 a Qty d3 Qty
mm mm
ZKLDF200 200 300 45 30 274 243 215 285 7 11 6.2 46 7 45



bearing type Number of retaining screws Extraction thread hole Number of pitches X angle of pitches Screw tightening torque Basic load rating Limiting speed Bearing frictional torque weight
MA2) axial dynamic load static load grease
G Qty Qty×t Nm Ca KN Coa KN r/min Nm Kg
    quantity
ZKLDF200 2 M8 3 48×7.5° 14 112 610 1600 4.5 11

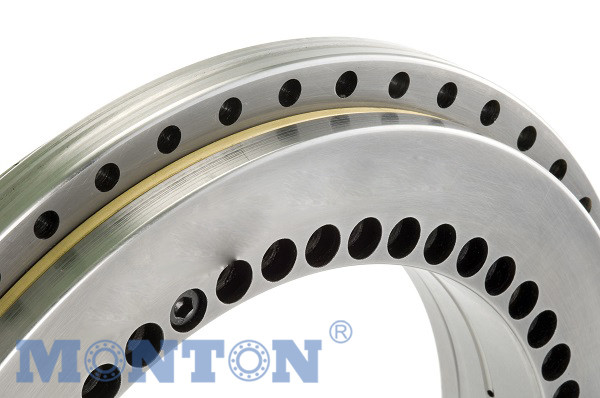

ZKLDF Rotary Table Bearing
ZKLDF are low-friction, high accuracy for very high speeds, high axial and radial loads and high demands on tilting rigidity. These bearings are
particularly suitable for precision applications involving combined loads. Their preferred areas of use are bearing arrangements in rotary tables
and honing heads as well as measurement and testing equipment.
Bearing features:
1. High precision: precision at P4, P2.
2. High rigidity: ZKLDF series bearings are with preload.
3. High speed: can be applied in high speed working condition.
4. Multi-direction load capacity: contact angular is 60°, and can support axial load, radial load, and tilting load.
5. Low friction: small frictional torque.
Application:
can be widely applied in precision rotary table of the machining center, high precision measuring instrument, and medical equipment etc.
