YRT325P4 YRT325P2 325*450*60 TRY bearings,yrts high speed turntable bearings manufacturers
1PCS
MOQ
USD
Price
YRT325P4 YRT325P2 325*450*60 TRY bearings,yrts high speed turntable bearings manufacturers
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Luoyang
Brand Name: Monton
Certification: ISO9001
Model Number: YRT325P4
High Light:

harmonic drive ag

,

harmonic drive systems

Payment & Shipping Terms
Packaging Details: Single box/Wooden case
Delivery Time: 7-35 days
Specifications
Product Description



YRT325P4 YRT325P2 325*450*60 TRY bearings,yrts high speed turntable bearings manufacturersYRT325P4 YRT325P2 325*450*60 TRY bearings,yrts high speed turntable bearings manufacturers



bearing type Dimensions fixing holes Number of retaining screws
d D H H1 C D1 J J1 inner ring outer ring
unit: mm d1 d2 a qty d3 qty
mm mm
YRT325 325 450 60 40 20 415 342 430 9.3 15 8.2 34 9.3 33 2





bearing type Extraction thread hole Number of pitches X angle of pitches Screw tightening torque Basic load rating Limiting speed Bearing frictional torque weight
axial radial
dynamic load static load dynamic load static load
MA2) Ca Coa Cr Cor grease
G qty qty×t Nm KN r/min Nm Kg
YRT325 M12 3 36×10° 34 275 1930 120 345 170 40 25





Machining tolerances for shafts
Bearings shaft diameter (mm) roundness() perpendicularity(⊥) parallelism() roughness Ra
Nominal dimension upper lower t1(µm) t3(µm) t4(µm) Ra(µm)
YRT325 325 0 -0.025 13 9 9 0.8



Machining tolerances for housings
Bearings (mm)housing diameter roundness() perpendicularity(⊥) parallelism() roughness Ra
Nominal dimension upper lower t1(µm) t3(µm) t4(µm) Ra(µm)
YRT325 450 +0.033 -0.007 15 10 10 0.8



YRT series turntable bearing with a set of radial roller, two groups of thrust roller cage full components of composite structure design, an outer ring, a l-shaped inner ring and the inner ring, inner and outer ring with mounting holes, and before delivery or addition of pre-load, not only simplify the structure of the components, reduced the workload of installation, reducing the high requirements for installation.Therefore, for low-speed and short-time operation occasions with high precision, high rigidity and bearing joint load requirements, such as dividing table and rotary milling head, it is extremely suitable to choose YRT series rotary table bearing.



Rotary Table Bearings:
YRT series(Standard percision grade as INA):
YRT50,YRT80,YRT100,YRT120,YRT150,YRT180,YRT200,YRT260,YRT325,YRT395,YRT460,YRT580,YRT650,YRT850,YRT950,YRT1030,YRT1200

YRTC series (Standard percision grade as INA):
YRTC100,YRTC120,YRTC150,YRTC180,YRTC200,YRTC260,YRTC325,YRTC395
YRTC460,YRTC580,YRTC650,YRTC850,YRTC1030

YRTS series(Standard percision grade as INA):
YRTS200,YRTS260,YRTS325,YRTS395,YRTS460,YRTS580

YRTM series(Standard percision grade as INA):
YRTM150,YRTM180,YRTM200,YRTM260,YRTM325,YRTM395,YRTM460,YRTM580

ZKLDF series(Standard percision grade as INA):
ZKLDF100,ZKLDF120,ZKLDF150,ZKLDF180,ZKLDF200,ZKLDF260,ZKLDF325,ZKLDF395,ZKLDF460,ZKLDF580

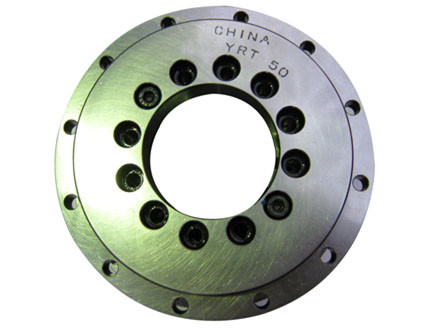

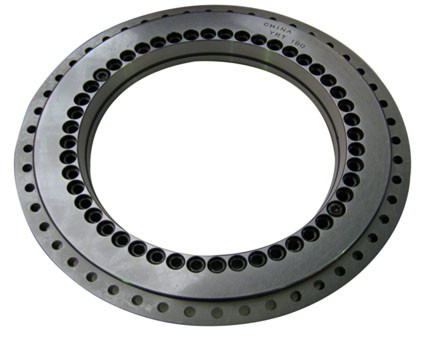

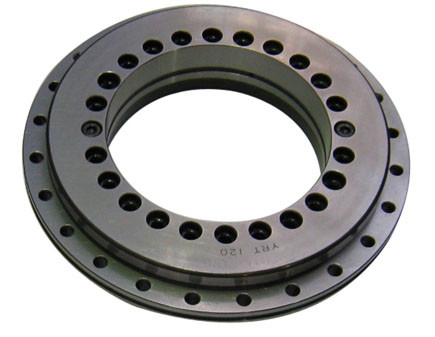

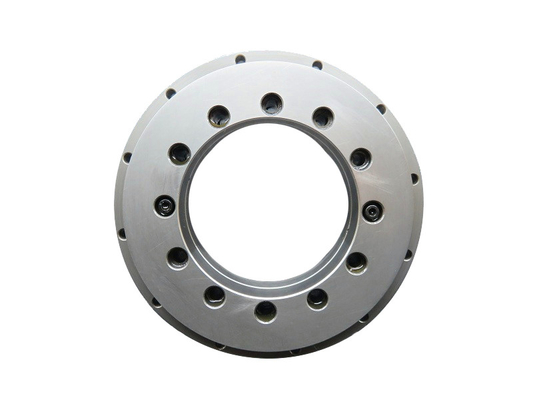

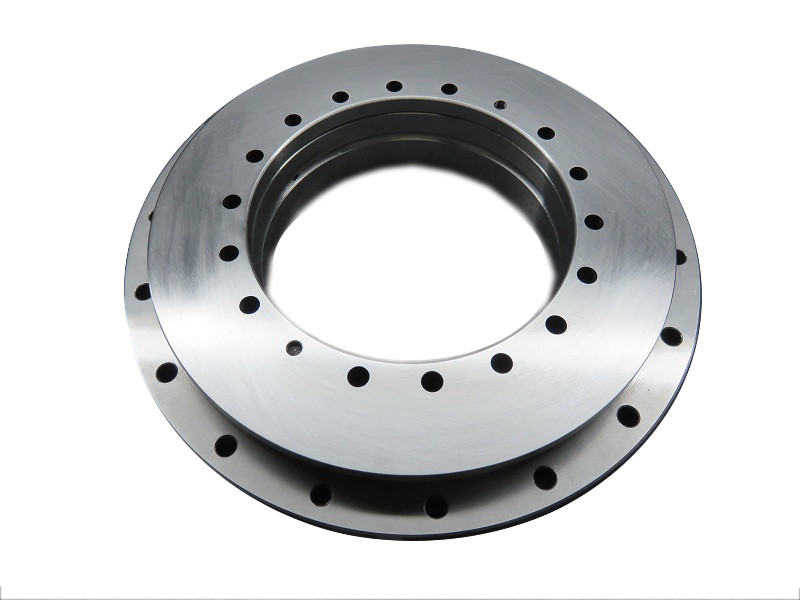

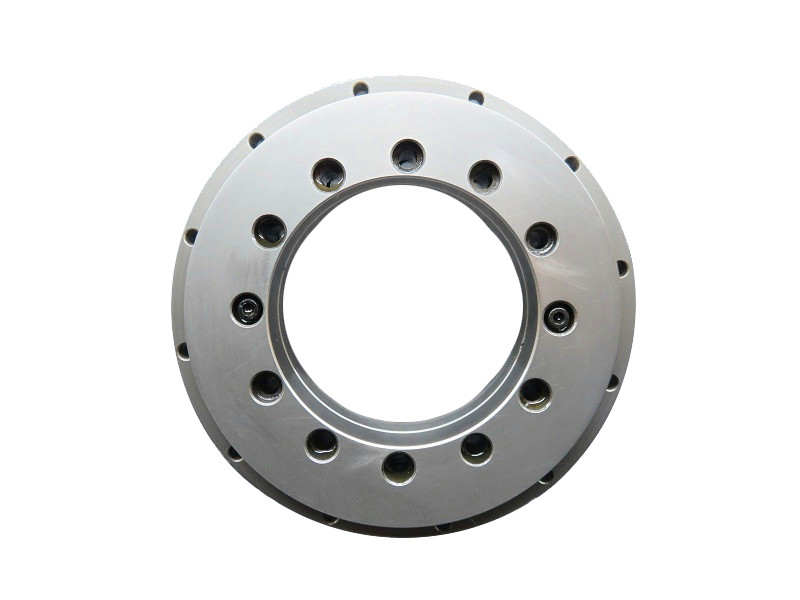

Products Photos
