20TAC47 BS2047 Precision Miniature Angular Contact Bearings Ball Screw Support Bearings

1
MOQ
USD
Price
20TAC47 BS2047 Precision Miniature Angular Contact Bearings Ball Screw Support Bearings
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

angular contact thrust bearing

,

thin section angular contact bearings

Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: 20TAC47
Payment & Shipping Terms
Packaging Details: Singlebox
Delivery Time: 7-35 days
Payment Terms: T/T
Supply Ability: 10000PCS/WEEK
Product Description

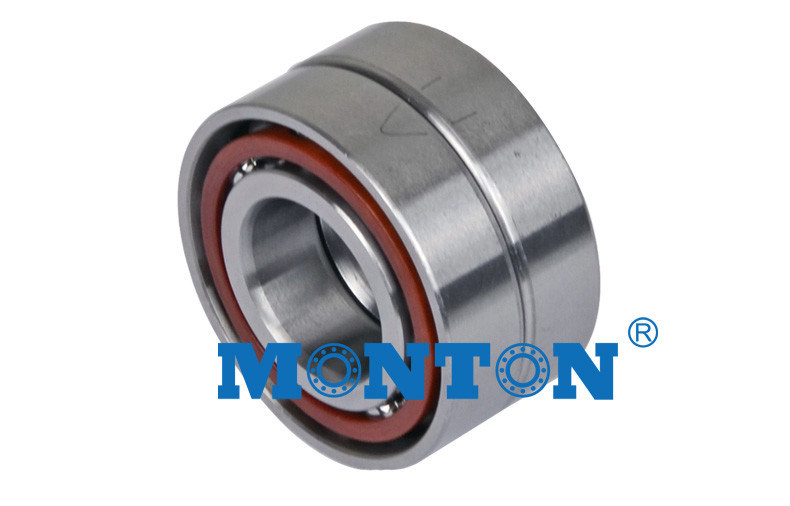

Angular contact ball screw support bearing 20TAC47 20x47x15mm

Bearings Demension
(mm)
Load Ca (N) Rotation
(min-1)
Stiffness (DB,DF) (N) Rigidity (DB,DF)
(N/μm)
Torque
(N・m)
Weight
d D B r
Min
r1
Max
Lub. Oil. H H H KG
BS2047 20TAC47 20 47 15 1 0.6 23.0 6,900 9,200 1,450 630 0.09 0.135



BS75110-2RZQFCC/NB15 BS50100TN1/P4 BS4575TN1/P4 BS45100TN1/P4 BS4090TN1/P5UL BS4090TN1/P4UO BS4090TN1/P4DBB BS4090TN1/P4 BS4072TN1/P5UO BS4072TN1/P5TTB BS4072TN1/P4DBB BS4072TN1/P4 BS3572TN1/P4UO BS3572TN1/P4 BS3572P4UL BS3072TN1/P5SUL BS3072TN1/P4UO BS3072TN1/P4DFB BS3072TN1/P4 BS3072P5 BS3072P4UO BS3062TN1/P5UO BS3062TN1/P5UL BS3062TN1/P5DBB BS3062TN1/P4UO BS3062TN1/P4 BS3062TN/P4TBTB BS3062TN/P4DBB BS3062TN/P4 BS2562TN1/P5UO BS2562TN1/P5TBTB BS2562TN1/P5 BS2562TN1/P4UO BS2562TN1/P4UL BS2562TN1/P4TBTA BS2562TN1/P4DFB BS2562TN1/P4DBB BS2562TN1/P4 BS2562TN/P5DBB BS2562TN/P4QBCB BS2562P4UL BS2047TN1/P4UO BS2047TN1/P4 BS1747TN1/P4UO BS1747TN1/P4DBB BS1747TN1/P4 BS1747TN1 BS1547TN1/P4 BS 3062 TN1P4GA ( 30.TAC.62 ) BS 2047 TN1P4GA ( 20.TAC.47 )

Angular contact ball screw support bearing 20TAC47 20x47x15mm

Information:

◆ Ball screw bearings 20TAC47 are ideal products for converting rotary motion into linear motion or converting linear motion into rotary motion.
◆ Ball screw consists of screw, nut and ball. Its function is to convert rotational motion into linear motion, which is the further extension and development of the ball screw. The significance of this development is to change the bearing from a sliding motion to a rolling motion. Due to the small frictional resistance, ball screw bearings are widely used in various industrial equipment and precision instruments. The
◆ Ball screw bearings 20TAC47 are the most commonly used transmission elements in power tools and precision machinery. Their main function is to convert rotational motion into linear motion, or to convert torque into axial reversal force, while simultaneously achieving high precision, reversibility and High efficiency features.



Angular contact ball screw support bearing 20TAC47 Series:

Example: 25TAC62BSBC10PN7A bearing
25---the size of the inner diameter (mm)
TAC---thrust Angle contact ball bearing, the contact Angle is 60 °
62---the size of the outer diameter (mm)
B---internal style
DF---a combination
SU---free combination (single)

DU---free combination (2 column)

DB---back-to-back combination

DF---face to face combination

DT---tied for combination

DBD DFD DTD---3 columns combination

DBB DFF DBT DFT DTT---4 columns combination

C10---standard preloaded

C9---light preloaded | low torque style

PN7A---standard precision (equivalent to ISO4 class)

PN7B---inside outside diameter size difference special control precision (equivalent to ISO4 grade, SU combination special).



Item List :

BS75110-2RZQFCC/NB15
BS50100TN1/P4
BS4575TN1/P4
BS45100TN1/P4
BS4090TN1/P5UL
BS4090TN1/P4UO
BS4090TN1/P4DBB
BS4090TN1/P4
BS4072TN1/P5UO
BS4072TN1/P5TTB
BS4072TN1/P4DBB
BS4072TN1/P4
BS3572TN1/P4UO
BS3572TN1/P4
BS3572P4UL
BS3072TN1/P5SUL
BS3072TN1/P4UO
BS3072TN1/P4DFB
BS3072TN1/P4
BS3072P5
BS3072P4UO
BS3062TN1/P5UO
BS3062TN1/P5UL
BS3062TN1/P5DBB
BS3062TN1/P4UO
BS3062TN1/P4
BS3062TN/P4TBTB
BS3062TN/P4DBB
BS3062TN/P4
BS2562TN1/P5UO
BS2562TN1/P5TBTB
BS2562TN1/P5
BS2562TN1/P4UO
BS2562TN1/P4UL
BS2562TN1/P4TBTA
BS2562TN1/P4DFB
BS2562TN1/P4DBB
BS2562TN1/P4
BS2562TN/P5DBB
BS2562TN/P4QBCB
BS2562P4UL
BS2047TN1/P4UO
BS2047TN1/P4
BS1747TN1/P4UO
BS1747TN1/P4DBB
BS1747TN1/P4
BS1747TN1
BS1547TN1/P4
BS 3062 TN1P4GA ( 30.TAC.62 )
BS 2047 TN1P4GA ( 20.TAC.47 )
