7307BEGAP Miniature Angular Contact Bearings For Elevator Or CNC Machines

1
MOQ
USD
Price
7307BEGAP Miniature Angular Contact Bearings For Elevator Or CNC Machines
Features Gallery Product Description Request A Quote
Features
Specifications
ID: 35mm
OD: 80mm
B: 21mm
Material: GCr15
Accuracy: P6 Or P5
Vibration: Z1V1 Or Z2V2
Contact Angle: 30 Or 40
Application: Air Compressor Or Elevator Or CNC
High Light:

angular contact thrust bearing

,

thin section angular contact bearings
Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: 7307BEGAP
Payment & Shipping Terms
Packaging Details: Singlebox
Delivery Time: 7-35 days
Payment Terms: T/T
Supply Ability: 10000PCS/WEEK
Product Description



Common Applications:

  • Machine tools
  • Gearboxes
  • Pumps
  • Printing machinery
  • Motors
  • CNC machinery
  •

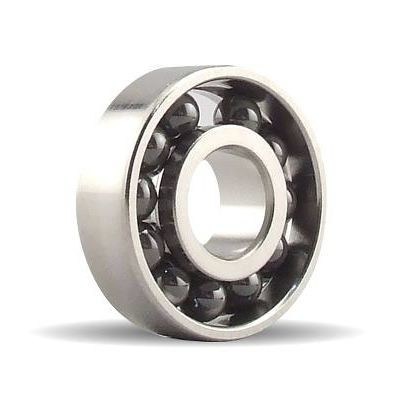

7307BEGAP Miniature Angular Contact Bearings For Elevator Or CNC Machines 07307BEGAP Miniature Angular Contact Bearings For Elevator Or CNC Machines 1

7307BEGAP





Calculation data

Basic dynamic load rating C   41.5 kN
Basic static load rating C0   26.5 kN
Fatigue load limit Pu   1.14 kN
Reference speed     11000 r/min
Limiting speed     11000 r/min
Calculation factor A   0.0111
Calculation factor kr   0.1
Calculation factor e   1.14
Single bearing or bearing pair arranged in tandem
Calculation factor X   0.35
Calculation factor Y0   0.26
Calculation factor Y2   0.57
Bearing pair arranged back-to-back or face-to-face
Calculation factor X   0.57
Calculation factor Y0   0.52
Calculation factor Y1   0.55
Calculation factor Y2   0.93
Mass
Mass bearing     0.45 kg







Angular contact ball bearings have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis. This means that they are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.







Main advantage:

1)We supply the full dimension range 73 series bearings.We can supply from the 12mm to 170mm.

2)Our bearings quality can reach P5 or P4 accuracy according to the customer demands

3)Quality,the bearings are produced exact according to the ISO standard.

Main application:Air Compressor or crane or Elevator or other application

Material:High quality XingCheng material

Heat treatment:Aichelin heat treatment

Here below is the catalogue:





Bearing Model

 d (mm) D (mm) B (mm)
7301-B-XL-JP 7301B-JP 12 37 12
7301-B-XL-TVP 7301B-TVP 12 37 12
7302-B-XL-JP 7302B-JP 15 42 13
7302-B-XL-MP 7302B-MP 15 42 13
7302-B-XL-TVP 7302B-TVP 15 42 13
7303-B-XL-JP 7303B-JP 17 47 14
7303-B-XL-TVP 7303B-TVP 17 47 14
7304-B-XL-JP 7304B-JP 20 52 15
7304-B-XL-MP 7304B-MP 20 52 15
7304-B-XL-TVP 7304B-TVP 20 52 15
7305-B-XL-JP 7305B-JP 25 62 17
7305-B-XL-MP 7305B-MP 25 62 17
7305-B-XL-TVP 7305B-TVP 25 62 17
7306-B-XL-JP 7306B-JP 30 72 19
7306-B-XL-MP 7306B-MP 30 72 19
7306-B-XL-TVP 7306B-TVP 30 72 19
7307-B-XL-JP 7307B-JP 35 80 21
7307-B-XL-MP 7307B-MP 35 80 21
7307-B-XL-TVP 7307B-TVP 35 80 21
7308-B-XL-JP 7308B-JP 40 90 23
7308-B-XL-MP 7308B-MP 40 90 23
7308-B-XL-TVP 7308B-TVP 40 90 23
7309-B-XL-JP 7309B-JP 45 100 25
7309-B-XL-MP 7309B-MP 45 100 25
7309-B-XL-TVP 7309B-TVP 45 100 25
7310-B-XL-JP 7310B-JP 50 110 27
7310-B-XL-MP 7310B-MP 50 110 27
7310-B-XL-TVP 7310B-TVP 50 110 27
7311-B-XL-JP 7311B-JP 55 120 29
7311-B-XL-MP 7311B-MP 55 120 29
7311-B-XL-TVP 7311B-TVP 55 120 29
7312-B-XL-JP 7312B-JP 60 130 31
7312-B-XL-MP 7312B-MP 60 130 31
7312-B-XL-TVP 7312B-TVP 60 130 31
7313-B-XL-JP 7313B-JP 65 140 33
7313-B-XL-MP 7313B-MP 65 140 33
7313-B-XL-TVP 7313B-TVP 65 140 33
7314-B-XL-JP 7314B-JP 70 150 35
7314-B-XL-MP 7314B-MP 70 150 35
7314-B-XL-TVP 7314B-TVP 70 150 35
7315-B-XL-JP 7315B-JP 75 160 37
7315-B-XL-MP 7315B-MP 75 160 37
7315-B-XL-TVP 7315B-TVP 75 160 37
7316-B-XL-JP 7316B-JP 80 170 39
7316-B-XL-MP 7316B-MP 80 170 39
7316-B-XL-TVP 7316B-TVP 80 170 39
7317-B-XL-JP 7317B-JP 85 180 41
7317-B-XL-MP 7317B-MP 85 180 41
7317-B-XL-TVP 7317B-TVP 85 180 41
7318-B-XL-JP 7318B-JP 90 190 43
7318-B-XL-MP 7318B-MP 90 190 43
7318-B-XL-TVP 7318B-TVP 90 190 43
7319-B-XL-JP 7319B-JP 95 200 45
7319-B-XL-MP 7319B-MP 95 200 45
7319-B-XL-TVP 7319B-TVP 95 200 45
7320-B-XL-JP 7320B-JP 100 215 47
7320-B-XL-MP 7320B-MP 100 215 47
7320-B-XL-TVP 7320B-TVP 100 215 47
7321-B-XL-MP 7321B-MP 105 225 49
7322-B-XL-JP 7322B-JP 110 240 50
7322-B-XL-MP 7322B-MP 110 240 50
7322-B-XL-TVP 7322B-TVP 110 240 50
7324-B-XL-MP 7324B-MP 120 260 55
7324-B-XL-TVP 7324B-TVP 120 260 55
7326-B-XL-MP 7326B-MP 130 280 58
7326-B-XL-TVP 7326B-TVP 130 280 58
7328-B-MP 7328B-MP 140 300 62
7330-B-MP 7330B-MP 150 320 65
7332-B-MP 7332B-MP 160 340 68
7334-B-MP 7334B-MP 170 360 72
