Bearings | Demension (mm) |
Load Ca (N) | Rotation (min-1) |
Stiffness (DB,DF) (N) | Rigidity (DB,DF) (N/μm) |
Torque (N・m) |
Weight | ||||||
d | D | B | r Min |
r1 Max |
Lub. | Oil. | H | H | H | KG | |||
BS45100 | 45TAC100 | 45 | 100 | 20 | 1 | 0.6 | 64.5 | 3,000 | 4,100 | 4,440 | 1,340 | 0.40 | 0.842 |
45TAC100BSUC10PN7A (Old Version P4 class)
45TAC100BSUC10PN7A(Old Version P4 class)
45TAC100BSUC10PN7A (New version replaces all of above)
Accuracy class 7C (equivalent to axial runout class 2=P2) 60 degree contact angle
High Accuracy replacement for PN7A and PN7B bearing specifications
Universal matching and ground to be used in matched bearing set applications
Ball Screw Support Bearings - BS Series

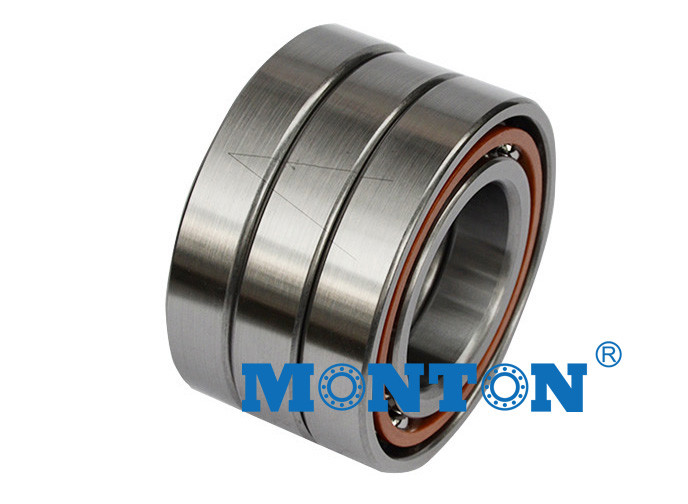

The BS series of ball screw support bearings are double row, angular contact thrust ball bearings, with a 60° contact angle. They are equivalent to two single row bearings in a back-to-back arrangement, with a single outer ring. Bearings are supplied ready to be mounted. They come greased with long life lithium soap grease, with synthetic hydrocarbon base oil. Under normal operating conditions, the bearings are greased for life. A relubrication groove on the outside surface of the outer ring allows the bearings to be relubricated during operation if necessary. The bearings are sealed on both sides. The low friction contact lip seal runs in a grove in the inner ring giving excellent sealing characteristics, while minimising torque and heat generation. Preload is set during manufacture so that the correct loading is achieved when the lock nut is tightened to the recommended torque.
BS-DT Series
The matched DT pairs are essentially the same as the individual bearings. The two individual bearings have been matched together in the paired version. Both bearings have a V-shaped mark on the outer diameter to ensure that they are arranged correctly.
Features and Benefits
•60° Contact angle enabling the bearings to support large axial forces
•Double row to support axial force in two directions
•Contact lip seal provides excellent sealing with low friction and heat generation
•Greased for life (under normal operating conditions)
Application:
Application: Angular Contact Ball Bearing is widely used in cars, compressors, construction, electric motors, food industry, home appliances etc. As a rolling element, it turns the world.
Ball Screw Support Bearing Interchange | |||||||
TIMKEN | BARDEN | FAG | NSK | NTN | RHP | SKF | SNFA |
MM12BS32 | - | 7602012-TVP | - | - | - | BSA 201 | BS 212 |
MM15BS35 | - | 7602015-TVP | - | - | - | BSA 202 | BS 215 |
MM17BS47 | - | - | 17TAC47 C10 | BST17X47-1B | BSB 017047 | - | - |
MM20BS47 | BSB2047 | BSB020047-T | 20TAC47 C10 | BST20X47-1B | BSB 020047 | BSD 2047 | BS 20/47 |
MM9306WI2H | L078H | - | 20TAC47X C11 | BST20X47-2B | BSB 078 | - | - |
MM9308WI2H | L093H | - | 23TAC62 C11 | BST23.8X62-1B | BSB 093 | - | - |
MM25BS52 | - | 7602025-TVP | - | - | BSB 2025 | BSA 205 | BS 225 |
MM25BS62 | BSB2562 | BSB025062-T | 25TAC62 C10 | BST25X62-1B | BSB 025062 | BSD 2562 | BS 25/62 |
MM30BS62 | BSB3062 | BSB030062-T | 30TAC62 C10 | BST30X62-1B | BSB 030062 | BSD 3062 | BS 30/62 |
MM30BS72 | - | - | - | - | BSB 030072 | - | - |
MM35BS72 | BSB3572 | BSB030572-T | 35TAC72 C10 | BST35X72-1B | BSB 035072 | BSD 3572 | BS 35/72 |
MM35BS100 | - | - | - | - | BSB 035100 | - | - |
MM9310WI2H | L150H | - | 38TAC72 C11 | BST38.1X72-1B | BSB 150 | - | - |
MM40BS72 | BSB4072 | BSB040072-T | 40TAC72 C10 | BST40X72-1B | BSB 040072 | BSD 4072 | BS 40/72 |
MM40BS90 | - | - | - | - | BSB 040090 | - | - |
MM40BS90-20 | - | BSB040090-T | 40TAC90 C10 | BST40X90-1B | - | BSD 4090 | BS 40/90 |
MM40BS90-23 | - | 7603040-TVP | - | - | - | BSA 308 | BS 340 |
MM40BS100 | - | - | - | - | BSB 040100 | - | - |
MM9311WI3H | L175H | - | 44TAC76 C11 | BST44.5X76.2-1B | BSB 175 | - | - |
MM45BS75 | - | BSB045075-T | 45TAC75 C10 | BST45X75-1B | BSB 045075 | BSD 4575 | - |
MM45BS100 | - | BSB045100-T | 45TAC100 C10 | BST45X100-1B | BSB 045100 | BSD 45100 | BS 45/100 |
MM50BS90 | - | - | - | - | BSB 050090 | - | - |
MM50BS100 | - | BSB050100-T | 50TAC100 C10 | BST50X100-1B | BSB 050100 | BSD 50100 | BS 50/100 |
MM55BS90 | - | BSB055090-T | 55TAC90 C10 | - | BSB 055090 | - | - |
MM55BS120 | - | BSB055120-T | 55TAC120 C10 | BST55X120-1B | BSB 055120 | BSD 55120 | BS55/120 |
MM9313WI5H | L225H | - | 57TAC90 C11 | - | BSB 225 | - | - |
MM60BS120 | - | BSB060120-T | 60TAC120 C10 | BST60X120-1B | BSB 060120 | BSD 60120 | BS 60/120 |
MM75BS110 | - | BSB075110-T | - | - | BSB 075110 | - | - |
MM9316WI3H | L300H | - | 76TAC110 C11 | - | BSB 300 | - | - |
MM100BS150 | - | - | - | - | BSB 100150 | - | - |
MM9321WI3 | - | - | 101TAC145 C11 | - | BSB 400 | - | - |
