| Bearings | Demension (mm) |
Load Ca (N) | Rotation (min-1) |
Stiffness (DB,DF) (N) | Rigidity (DB,DF) (N/μm) |
Torque (N･m) |
Weight | ||||||
| d | D | B | r Min |
r1 Max |
Lub. | Oil. | H | H | H | KG | |||
| BS50100 | 50TAC100 | 50 | 100 | 20 | 1 | 0.6 | 66.0 | 3,000 | 3,900 | 4,650 | 1,410 | 0.42 | 0.778 |
50TAC100BSUC10PN7B (Old Version P4 class)
50TAC100BSUC10PN7B(Old Version P4 class)
50TAC100BSUC10PN7B (New version replaces all of above)
Accuracy class 7C (equivalent to axial runout class 2=P2) 60 degree contact angle
High Accuracy replacement for PN7A and PN7B bearing specifications
Universal matching and ground to be used in matched bearing set applications
Ball Screw Support Bearings - BS Series

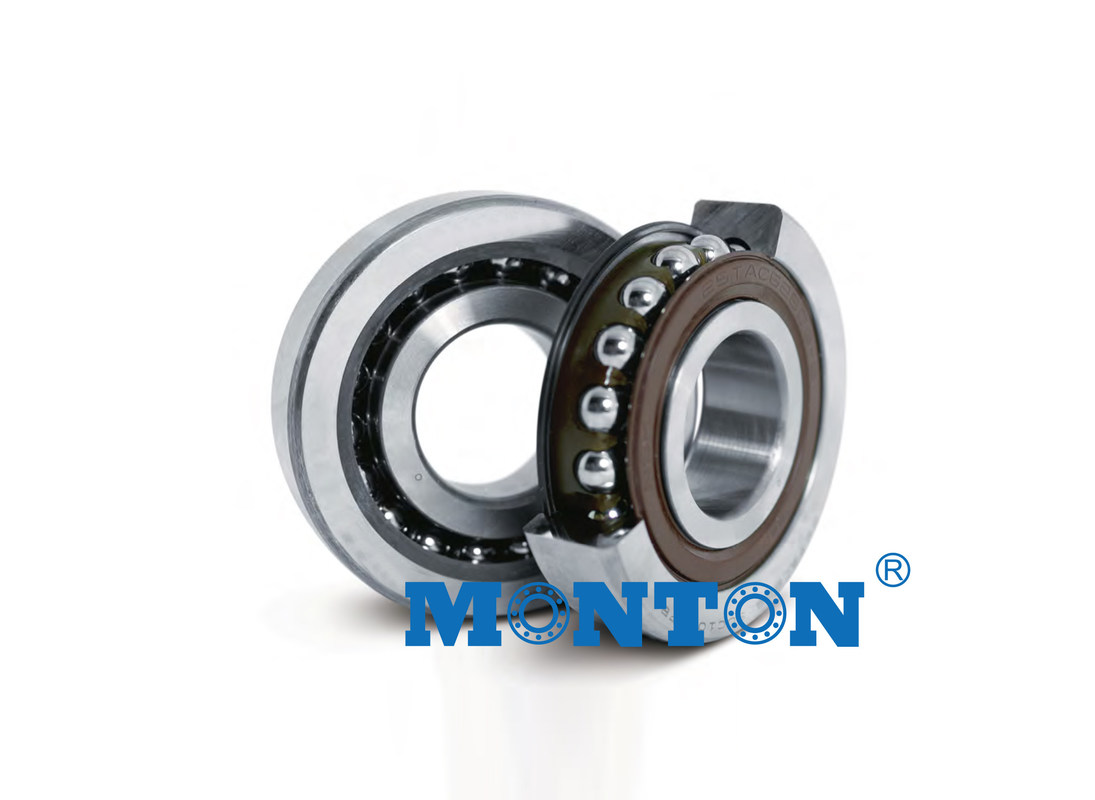

The BS series of ball screw support bearings are double row, angular contact thrust ball bearings, with a 60° contact angle. They are equivalent to two single row bearings in a back-to-back arrangement, with a single outer ring. Bearings are supplied ready to be mounted. They come greased with long life lithium soap grease, with synthetic hydrocarbon base oil. Under normal operating conditions, the bearings are greased for life. A relubrication groove on the outside surface of the outer ring allows the bearings to be relubricated during operation if necessary. The bearings are sealed on both sides. The low friction contact lip seal runs in a grove in the inner ring giving excellent sealing characteristics, while minimising torque and heat generation. Preload is set during manufacture so that the correct loading is achieved when the lock nut is tightened to the recommended torque.
BS-DT Series
The matched DT pairs are essentially the same as the individual bearings. The two individual bearings have been matched together in the paired version. Both bearings have a V-shaped mark on the outer diameter to ensure that they are arranged correctly.
Features and Benefits
•60° Contact angle enabling the bearings to support large axial forces
•Double row to support axial force in two directions
•Contact lip seal provides excellent sealing with low friction and heat generation
•Greased for life (under normal operating conditions)
Application:
Application: Angular Contact Ball Bearing is widely used in cars, compressors, construction, electric motors, food industry, home appliances etc. As a rolling element, it turns the world.
| Example Bearing set part number using 50TAC100CSUHPN7C or 50TAC100BSUC10. Order the correct QTY based on your configuration below. Sold as Single Bearings |
||
| Duplex 2 Bearing Set | Triplex 3 Bearing Set | Quad 4 Bearing Set |
| 50TAC100A** 50TAC100DB 50TAC100DF 50TAC100DT 50TAC100DU 50TAC100BDB 50TAC100BDF 50TAC100BDT 50TAC100BDU 50TAC100BSU |
50TAC100DBD 50TAC100DFD 50TAC100DTD 50TAC100DUD 50TAC100BDBD 50TAC100BDFD 50TAC100BDTD 50TAC100BDUD |
50TAC100DBB 50TAC100DFF 50TAC100DBT 50TAC100DFT 50TAC100BDBB 50TAC100BDFF 50TAC100BDBT 50TAC100BDFT 50TAC100QU |
