Bearings | Demension (mm) |
Load Ca (N) | Rotation (min-1) |
Stiffness (DB,DF) (N) | Rigidity (DB,DF) (N/μm) |
Torque (N・m) |
Weight | ||||||
d | D | B | r Min |
r1 Max |
Lub. | Oil. | H | H | H | KG | |||
BS55120 | 55TAC120 | 55 | 120 | 20 | 1 | 0.6 | 70.5 | 2,500 | 3,500 | 5,450 | 1,660 | 0.49 | 1.23 |
55TAC120BSUC10PN7B (Old Version P4 class)
55TAC120BSUC10PN7B(Old Version P4 class)
55TAC120BSUC10PN7B (New version replaces all of above)
Accuracy class 7C (equivalent to axial runout class 2=P2) 60 degree contact angle
High Accuracy replacement for PN7A and PN7B bearing specifications
Universal matching and ground to be used in matched bearing set applications
Ball Screw Support Bearings - BS Series

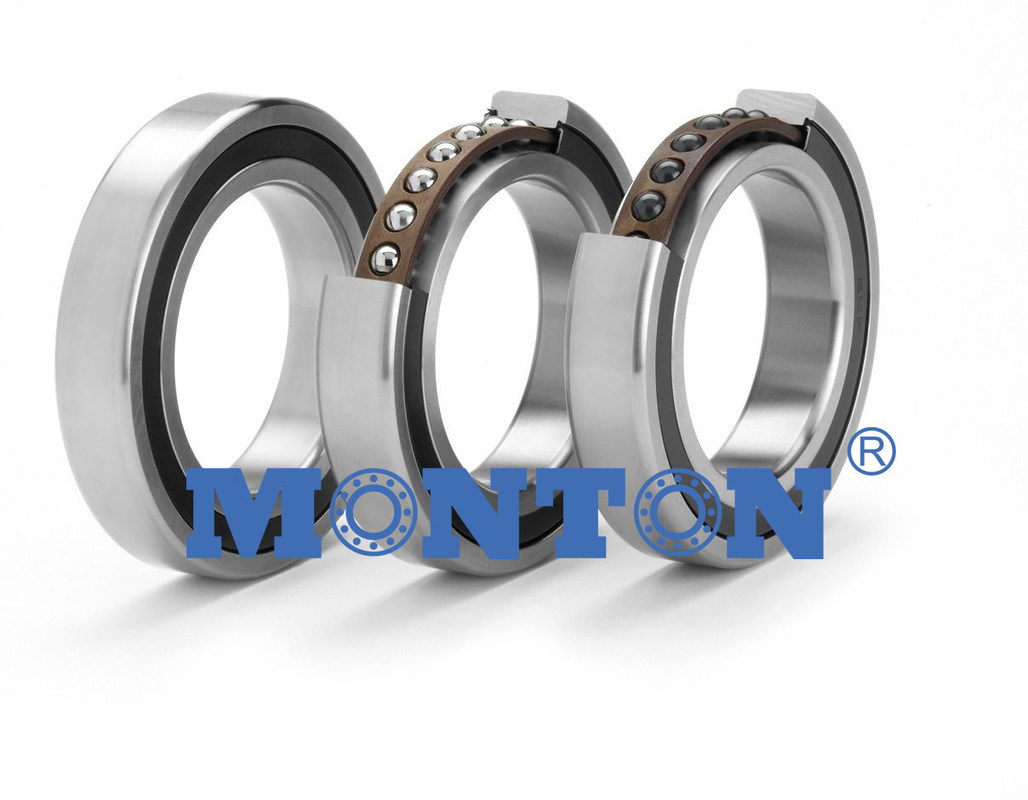

The BS series of ball screw support bearings are double row, angular contact thrust ball bearings, with a 60° contact angle. They are equivalent to two single row bearings in a back-to-back arrangement, with a single outer ring. Bearings are supplied ready to be mounted. They come greased with long life lithium soap grease, with synthetic hydrocarbon base oil. Under normal operating conditions, the bearings are greased for life. A relubrication groove on the outside surface of the outer ring allows the bearings to be relubricated during operation if necessary. The bearings are sealed on both sides. The low friction contact lip seal runs in a grove in the inner ring giving excellent sealing characteristics, while minimising torque and heat generation. Preload is set during manufacture so that the correct loading is achieved when the lock nut is tightened to the recommended torque.
BS-DT Series
The matched DT pairs are essentially the same as the individual bearings. The two individual bearings have been matched together in the paired version. Both bearings have a V-shaped mark on the outer diameter to ensure that they are arranged correctly.
Features and Benefits
•60° Contact angle enabling the bearings to support large axial forces
•Double row to support axial force in two directions
•Contact lip seal provides excellent sealing with low friction and heat generation
•Greased for life (under normal operating conditions)
Application:
Application: Angular Contact Ball Bearing is widely used in cars, compressors, construction, electric motors, food industry, home appliances etc. As a rolling element, it turns the world.
Example Bearing set part number using 50TAC100CSUHPN7C or 50TAC100BSUC10. Order the correct QTY based on your configuration below. Sold as Single Bearings |
||
Duplex 2 Bearing Set | Triplex 3 Bearing Set | Quad 4 Bearing Set |
55TAC120A** 55TAC120DB 55TAC120DF 55TAC120DT 55TAC120DU 55TAC120BDB 55TAC120BDF 55TAC120BDT 55TAC120BDU 55TAC120BSU |
55TAC120DBD 55TAC120DFD 55TAC120DTD 55TAC120DUD 55TAC120BDBD 55TAC120BDFD 55TAC120BDTD 55TAC120BDUD |
55TAC120DBB 55TAC120DFF 55TAC120DBT 55TAC120DFT 55TAC120BDBB 55TAC120BDFF 55TAC120BDBT 55TAC120BDFT 55TAC120QU |
