Name: Angular contact ball bearings SF5235PX1 thrust bearing 260x330x35mm
Brand: MONTON
SKU: 7310GAP
Rating: 4.6 (199 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

High Light:

angular contact thrust bearing

thin section angular contact bearings

Basic Infomation

Place of Origin: CHINA

Brand Name: MONTON

Certification: ISO9001

Model Number: 7310GAP

Payment & Shipping Terms

Packaging Details: Singlebox

Delivery Time: 7-35 days

Payment Terms: T/T

Supply Ability: 10000PCS/WEEK

Gallery

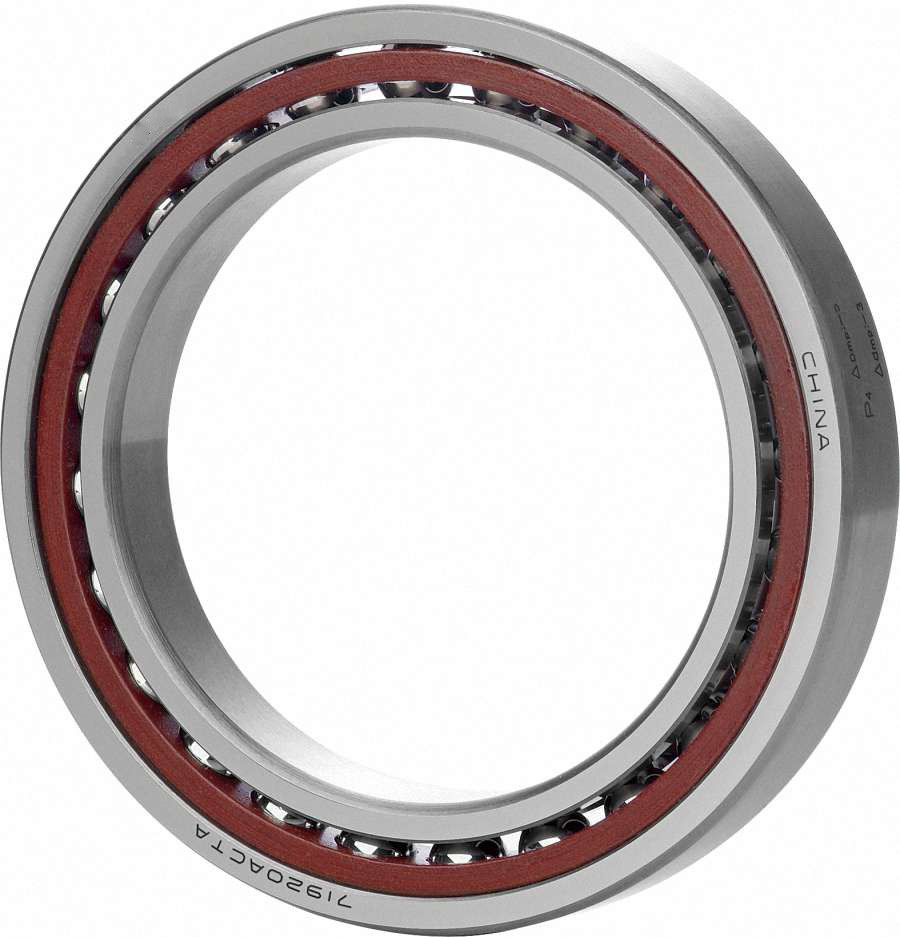

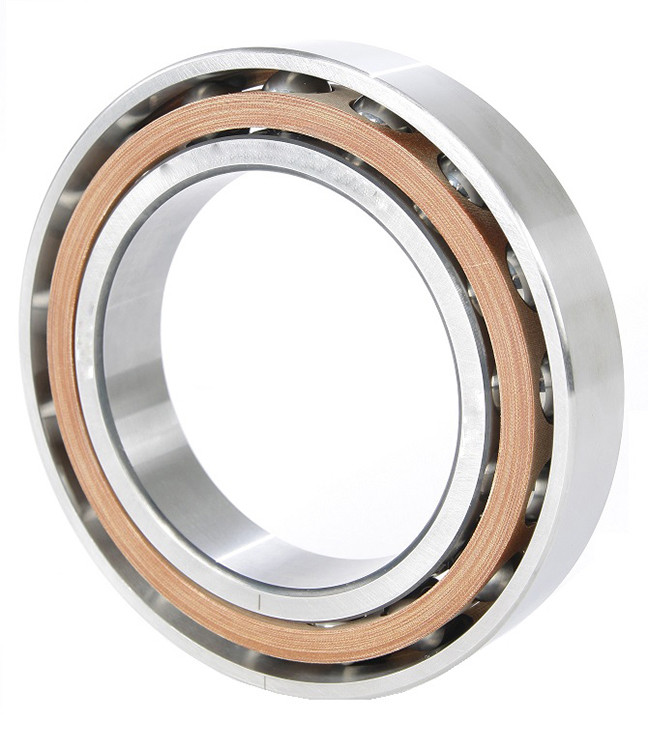

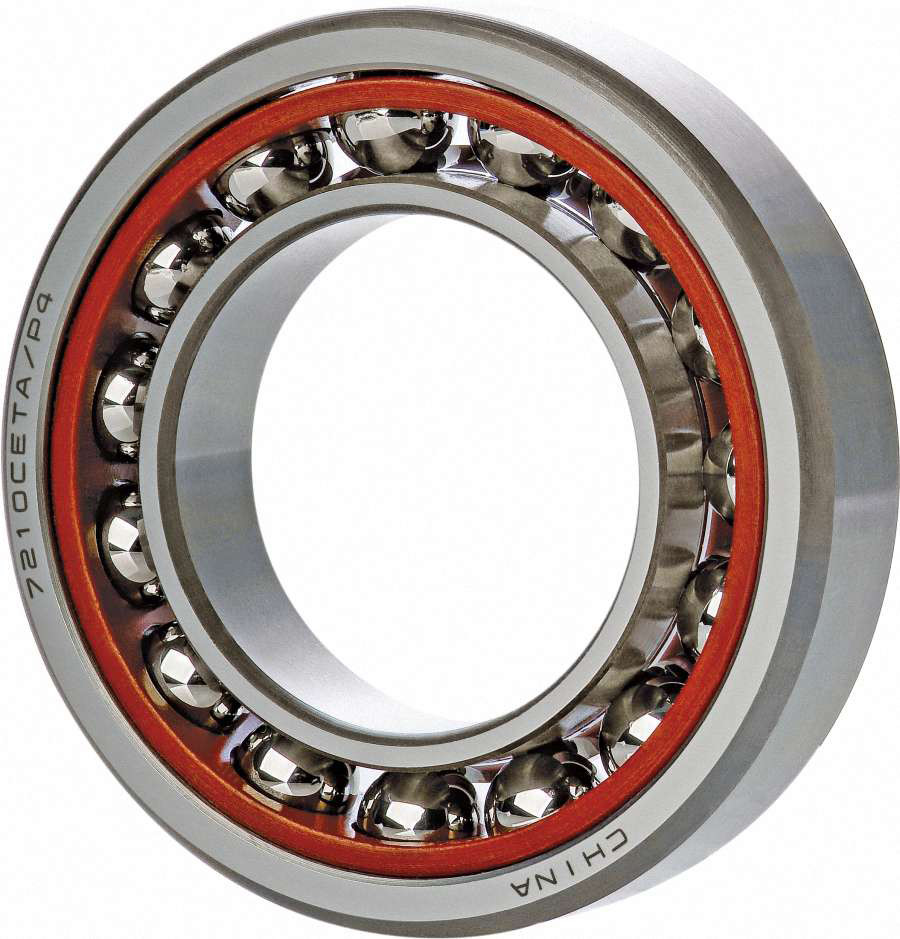

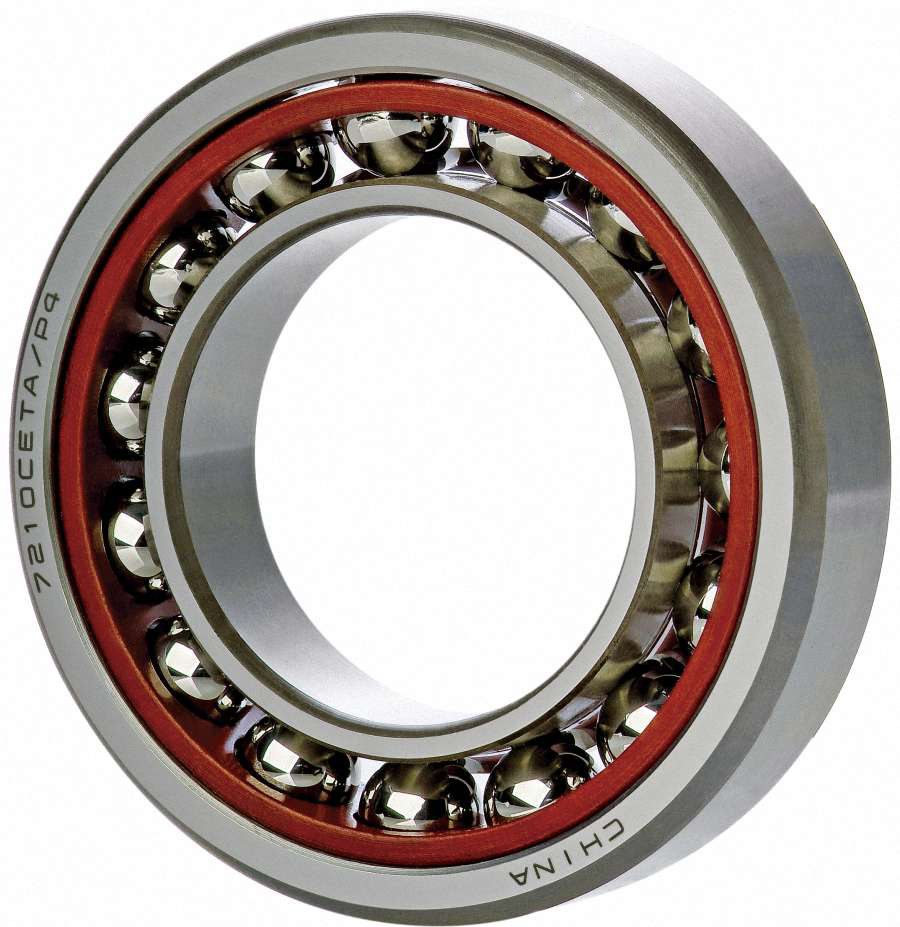

Angular contact ball bearings SF5235PX1 thrust bearing 260x330x35mm

Product Description

The Single Row Angular Contact Ball Bearings are non-separable and the bearing rings have one high and one low shoulder. The low shoulder enables a large number of balls to be incorporated in the bearing, giving it a relatively high load carrying capacity.

Some large size bearings are available with a flanged outer ring.

In addition, Huihao's single row angular contact ball bearings are available in many other designs, dimension series, and sizes.

BASIC	BORE(d)	O.D.(D)	WIDTH		WEIGHT
BEARING NUMBER			B	2B
	mm	mm	mm	mm	kg
	inch	inch	inch	inch	lb
7300	10	35	11	22	0.04
	0.3937	1.378	0.4331	0.8661	0.088
7301	12	37	12	24	0.044
	0.4724	1.4567	0.4724	0.9449	0.097
7302	15	42	13	26	0.055
	0.5906	1.6535	0.5118	1.0236	0.121
7303	17	47	14	28	0.107
	0.6693	1.8504	0.5512	1.1024	0.235
7304	20	52	15	30	0.138
	0.7874	2.0472	0.5906	1.1811	0.304
7305	25	62	17	34	0.23
	0.9843	2.4409	0.6693	1.3386	0.506
7306	30	72	19	38	0.345
	1.1811	2.8346	0.748	1.4961	0.759
7307	35	80	21	42	0.462
	1.378	3.1496	0.8268	1.6535	1.016
7308	40	90	23	46	0.625
	1.5748	3.5433	0.9055	1.811	1.375
7309	45	100	25	50	0.837
	1.7717	3.937	0.9843	1.9685	1.841
7310	50	110	27	54	1.09
	1.9685	4.3307	1.063	2.126	2.398
7311	55	120	29	58	1.39
	2.1654	4.7244	1.1417	2.2835	3.058
7312	60	130	31	62	1.74
	2.3622	5.1181	1.2205	2.4409	3.828
7313	65	140	33	66	2.11
	2.5591	5.5118	1.2992	2.5984	4.642
7314	70	150	35	70	2.56
	2.7559	5.9055	1.378	2.7559	5.632
7315	75	160	37	74	3.07
	2.9528	6.2992	1.4567	2.9134	6.754
7316	80	170	39	78	3.65
	3.1496	6.6929	1.5354	3.0709	8.03
7317	85	180	41	82	4.34
	3.3465	7.0866	1.6142	3.2283	9.548
7318	90	190	43	86	5.06
	3.5433	7.4803	1.6929	3.3858	11.132
7319	95	200	45	90	5.89
	3.7402	7.874	1.7717	3.5433	12.958
7320	100	215	47	94	7.18
	3.937	8.4646	1.8504	3.7008	15.796
7321	105	225	49	98	8.2
	4.1339	8.8583	1.9291	3.8583	18.04
7322	110	240	50	100	9.6
	4.3307	9.4488	1.9685	3.937	21.12
7324	120	260	55	110	14.7
	4.7244	10.2362	2.1654	4.3307	32.34
7326	130	280	58	116	17.6
	5.1181	11.0236	2.2835	4.5669	38.72
7328	140	300	62	124	21.5
	5.5118	11.811	2.4409	4.8819	47.3
7330	150	320	65	130	25.1
	5.9055	12.5984	2.5591	5.1181	55.22
7332	160	340	68	136	29.8
	6.2992	13.3858	2.6772	5.3543	65.56
7334	170	360	72	144	35.3
	6.6929	14.1732	2.8346	5.6693	77.66
7336	180	380	75	150	40.9
	7.0866	14.9606	2.9528	5.9055	89.98
7338	190	400	78	156	47
	7.4803	15.748	3.0709	6.1417	103.4
7340	200	420	80	160	53.1
	7.874	16.5354	3.1496	6.2992	116.82

Angular contact ball bearings SF5235PX1 thrust bearing 260x330x35mm 1
