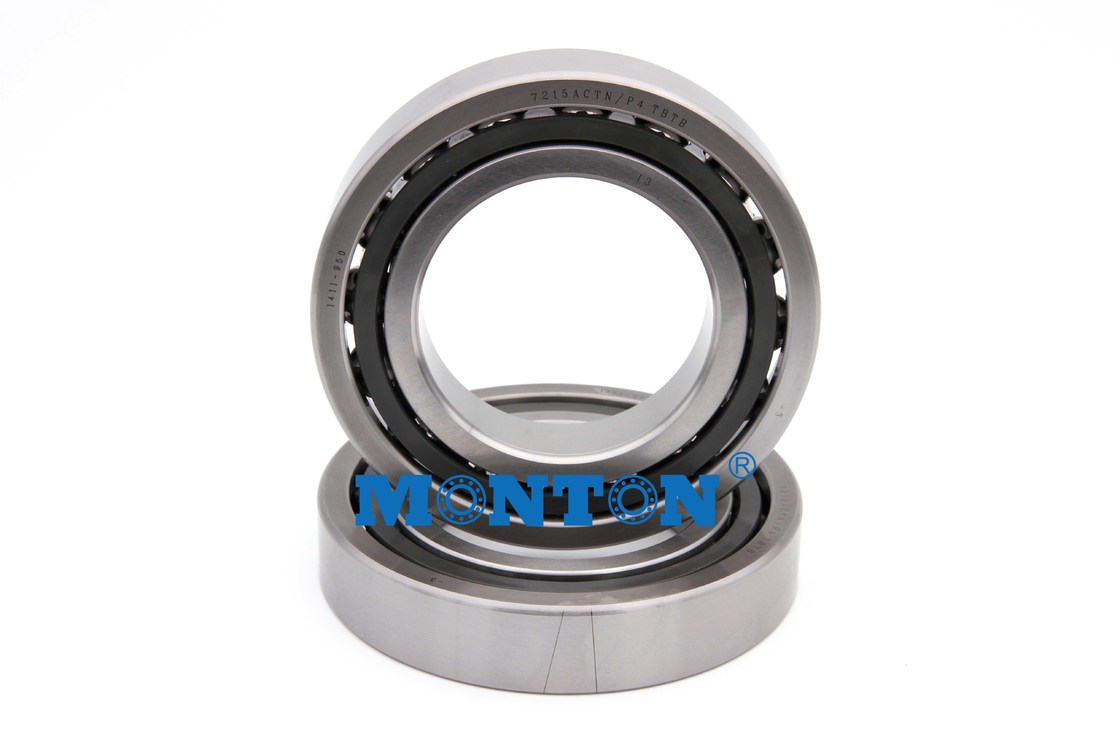

1. Angular Contact Ball Bearing:
Angular Contact Ball Bearing, which is similar to other ball bearings, angular contact ball bearing are compose of inner and outer races, ball complement and bearing cage; however, different to other ball bearings like a deep groove ball bearing, an angular contact ball bearing is designed with axially asymmetric race.
As a result, angular contact ball bearings are more suitable for supporting "combined loads" (loading in both the radial and axial directions); pure axial-load supporting in one direction is also possible. Generally speaking, the supporting capability for an axial load; and at the same time, the smaller the supporting capability for a radial load.
According to angular contact ball bearing manufacturers, single-row, and double-row angular contact ball bearings are both popular ones in the market. A single row angular contact ball bearing is suitable for carrying axial-load acting in one direction only; as a result, they are usually used in pairs or multi-arrangement in many applications. A double row angular contact ball bearing, however, is suitable for both an axial-load and a radial-load in both directions.
2. Features:
1) High quality and good service
2) Less friction and low noise
3) Competitive price
4) Quick delivery
5) Small order accepted
6) Excellent antitrust technology
7) Long life
Bearing 7215 Information |
||||||||||||||||||||||||||||
|
3. Our Services:
1) Inquiries are typically replyed within 24 hours
2) OEM & ODM projects are highly welcomed.
3) Prompt delivery
4) Best after-sale service
5) Buyer Label Offered
4. Related NSK SAIFAN Bearing Catalogue
Bearing No. |
Dimensions (mm) | Weight (kg) | |||
d | D | B | |||
7212C Bearing | 7212AC | 60 | 110 | 22 | 0.80 |
7213C Bearing | 7213AC | 65 | 120 | 23 | 1.00 |
7214C Bearing | 7214AC | 70 | 125 | 24 | 1.10 |
7215C Bearing | 7215AC | 75 | 130 | 25 | 1.20 |
7216C Bearing | 7216AC | 80 | 140 | 26 | 1.45 |
7217C Bearing | 7217AC | 85 | 150 | 28 | 1.80 |
7218C Bearing | 7218AC | 90 | 160 | 30 | 2.25 |
7219C Bearing | 7219AC | 95 | 170 | 32 | 2.70 |
7220C Bearing | 7220AC | 100 | 180 | 34 | 3.25 |
7221C Bearing | 7221AC | 105 | 190 | 36 | 3.85 |
7222C Bearing | 7222AC | 110 | 200 | 38 | 4.55 |
7224C Bearing | 7224AC | 120 | 215 | 40 | 5.40 |
7304C Bearing | 7304AC | 20 | 52 | 15 | 0.15 |
7305C Bearing | 7305AC | 25 | 62 | 17 | 0.23 |
7306C Bearing | 7306AC | 30 | 72 | 19 | 0.35 |
7307C Bearing | 7307AC | 35 | 80 | 21 | 0.47 |
7308C Bearing | 7308AC | 40 | 90 | 23 | 0.66 |
7309C Bearing | 7309AC | 45 | 100 | 25 | 0.86 |
7310C Bearing | 7310AC | 50 | 110 | 27 | 1.08 |
7311C Bearing | 7311AC | 55 | 120 | 29 | 1.42 |
7312C Bearing | 7312AC | 60 | 130 | 31 | 1.71 |
7313C Bearing | 7313AC | 65 | 140 | 33 | 2.23 |
7314C Bearing | 7314AC | 70 | 150 | 35 | 2.67 |
7315C Bearing | 7315AC | 75 | 160 | 37 | 3.10 |
7316C Bearing | 7316AC | 80 | 170 | 39 | 3.60 |
7317C Bearing | 7317AC | 85 | 180 | 41 | 4.38 |
7318C Bearing | 7318AC | 90 | 190 | 43 | 5.17 |
7319C Bearing | 7319AC | 95 | 200 | 45 | 6.69 |
7320C Bearing | 7320AC | 100 | 215 | 47 | 7.60 |
