7004CTRDULP4Y FAG Super Precision Angular Contact Ball Bearing With 15° Contact Angle

7004CTRDULP4Y FAG Super Precision Angular Contact Ball Bearing With 15° Contact Angle
Features Gallery Product Description Request A Quote
High Light:

angular contact thrust bearing


thin section angular contact bearings

Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: 7004CTRDULP4Y
Payment & Shipping Terms
Packaging Details: Singlebox
Delivery Time: 7-35 days
Payment Terms: T/T
Supply Ability: 10000PCS/WEEK
Product Description

               7004CTRDULP4Y Super Precision Angular Contact Ball                             Bearing, 15° Contact Angle, Normal Clearance
7004CTRDULP4Y Super Precision Angular Contact Ball Bearing Introduction:
Angular contact ball bearings can bear radial load and axial load simultaneously. It can work at a high speed. The greater the contact angle, the higher the axial bearing capacity. The contact angle is the angle between the contact point of the ball and raceway in the radial plane and the vertical line of the bearing axis. High precision and high speed bearings usually take 15 degrees of contact angle. Under the action of the axial force, the contact angle will increase.

7004CTRDULP4Y Angular Contact Ball Bearing Precision Degree:
The accuracy grade of angular contact ball bearing includes dimension tolerance and rotation accuracy. The accuracy from low to high is expressed as P0 (normal), P6 (P6X), P5, P4 and P2. In addition, European and American brands also use P3, P7 and P9 to express accuracy level. P3 is equivalent to P6 level of ISO and JIS standard, P7 is equivalent to P4 level, P9 is equivalent to P2 level.
Production Description of Super Percision Bearing

Description7004CTRDULP4Y Super Precision Angular Contact Ball Bearing, 15° Contact Angle, Normal Clearance
Ball Bearing sealsOpen
MaterialGcr15 steel,carbon steel,stainless steel etc.
Bore size20 mmOuter diameter42 mm
Cage typebrass;steel plate,nylon,aluminium alloy etc.
Seal typeopen,sealed(ZZ,2RS)
Ball Bearings FeatureLong-life with high quality
 Low-nosie with strict controlling the quality of deep groove ball bearing
 High-load by the advanced high-technical design
 Competitive price, which has the most valuable
 OEM service offered, to meet the customers'requirements
Applicationgearbox, motor,auto,reduction box,engine machinery,mining machinery,bicycles,etc
Bearing PackagePallet,wooden case,commercial packaging or as customers' requirement.
Price termsFOB,CFR,CIF,EXWdelivery time3-5 days acccording the quantity

Angular Contact Ball Bearing Application:
Single row angular contact ball bearings: machine tool spindle, high frequency motor, flammable turbine, centrifuge, small car front wheel, differential gear shaft, pressurized pump, drilling platform, food machinery, dividing head, welding machine, low noise cooling tower, electromechanical equipment, coating equipment, machine bed slots plate, arc welder
Double row angle contact ball bearings: oil pump, roots blower, air compressor, various kinds of transmission, fuel injection pump, printing machinery, planetary reducer, extraction equipment, cycloid reducer, food packaging machinery, electric welding machine, electric soldering iron, square box, gravity type spray gun, stripper, semi axle, inspection analysis equipment, fine chemical equipment. Machinery and machinery

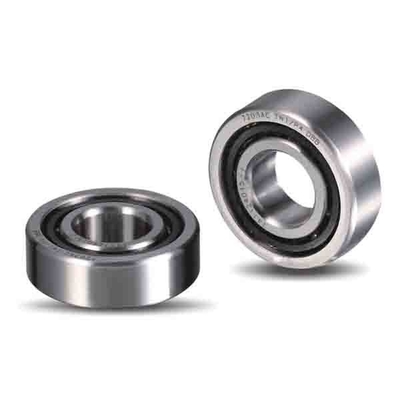

7004CTRDULP4Y Super Precision Bearing Real Photos:
7004CTRDULP4Y FAG Super Precision Angular Contact Ball Bearing With 15° Contact Angle 0
Package for 7004 Angular Contact Ball Bearing:
1. Industrial package: plastic tube + paper carton + wooden pallet
craft paper + paper carton + wooden pallet
2. Individual package: individual paper box + paper carton + wooden pallet
3. As customer's demand
