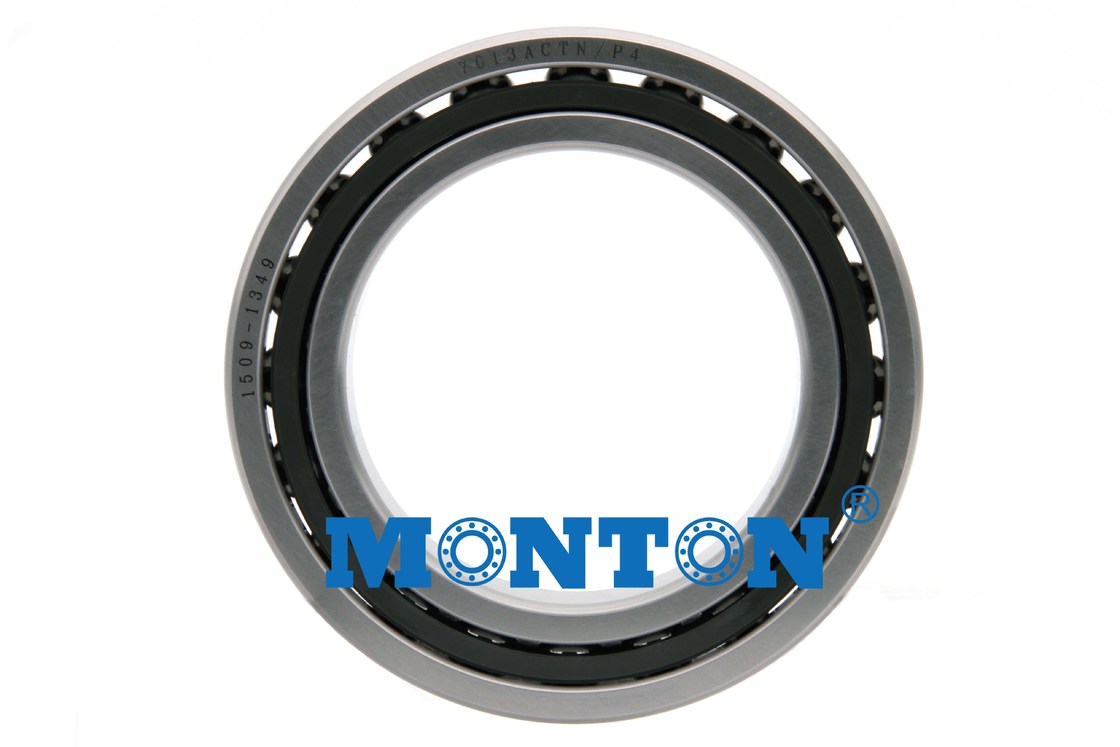

71818CAP4DBB Single Row Stainless Steel Angular Contact Ball Bearing

1
MOQ
USD
Price
71818CAP4DBB Single Row Stainless Steel Angular Contact Ball Bearing
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

angular contact thrust bearing

,

thin section angular contact bearings

Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: 71818CAP4SUL
Payment & Shipping Terms
Packaging Details: Singlebox
Delivery Time: 7-35 days
Payment Terms: T/T
Supply Ability: 10000PCS/WEEK
Product Description

71818CAP4DBB Angular Contact Ball Bearings

single row stainless steel angular contact ball bearing made in china



1. Structure: angular contact ball bearings

2. Brand Name: Monton

3. Bore Size: 90mm

4. Outside Diameter: 115mm

5. Model Number: 71818CAP4DBB

6. Precision Rating: ABEC-1/ P0, ABEC-3/P6, ABEC-5/P5, ABEC-7/P4

7. Number of Row: Single row

8. Place of Origin: Japan

9. Width: 12mm

10. Net weight: 0.027KG

11. Material: GCr15 Stainless steel and so on

12. Type: ball bearing

13. Clearance: C0,C1,C2,C3,C4,C5 etc.

14. Vibration: V1,V2,V3

15. Service: OEM Service & Good Service

16. Sample available: Yes

17. Manufacturer: Yes



Angular contact ball bearingsare withhigh speed limit,can support radial load and axial load,can also be subject to
pure axial load,theaxial load capacity determined by the contact angle, with the contact angleincrease,the capacity increases,too.

Single row angular contact ball bearingsonlycan withstand axial load in one direction,when burdenthe radial load, will cause
additional axial force,and it mustbe applied to the corresponding reverse load,sothe types of bearings are generally used in pairs.
Double row angular contact ball bearings can withstand greater radial load,mainly consisting of radial and axial combined load
and torque load, it limits bi-axial displacement of shaft or housing, the contact angleis30 degrees.

71818CAP4DBB Single Row Stainless Steel Angular Contact Ball Bearing 0

Model No. Size Information(mm) Working Point (mm) a Limit Speed(rpm) Loading Rating(kN) Weight
d D B rs min rls min Grease Lubrication Oil Lubrication Cr Cor kgs/pc
71805C 25 37 7 0.3 0.15 7.7 21500 27700 4400 3920 0.025
71805AC 25 37 7 0.3 0.15 10.7 18400 24600 4130 3660 0.025
71806C 30 42 7 0.3 0.15 8.3 18500 23800 4730 4620 0.029
71806AC 30 42 7 0.3 0.15 11.9 15900 21200 4440 4320 0.029
71807C 35 47 7 0.3 0.15 9 16300 20900 4920 5140 0.034
71807AC 35 47 7 0.3 0.15 13.1 13900 28600 4620 4810 0.034
71808C 40 52 7 0.3 0.15 9.7 14500 18600 5200 5840 0.04
71808AC 40 52 7 0.3 0.15 14.2 12400 16600 4880 5460 0.04
71809C 45 58 7 0.3 0.15 10.4 12900 16600 6540 7520 0.051
71809AC 45 58 7 0.3 0.15 15.5 11100 14800 6140 7030 0.051
71810C 50 65 7 0.3 0.15 11.2 11600 14900 6850 8410 0.068
71810AC 50 65 7 0.3 0.15 16.9 9900 13200 6440 7870 0.068
71811C 55 72 9 0.3 0.15 13 10500 13500 9380 11400 0.109
71811AC 55 72 9 0.3 0.15 19.3 9000 12000 8810 10700 0.109
71812C 60 78 10 0.3 0.15 14.2 9600 12400 9690 12400 0.139
71812AC 60 78 10 0.3 0.15 21.1 8300 11000 9110 11600 0.139
71813C 65 85 10 0.6 0.15 15 8900 11400 12500 16000 0.198
71813AC 65 85 10 0.6 0.15 22.5 7600 10100 11800 15000 0.198
71814C 70 90 10 0.6 0.15 15.7 8300 10700 13000 17400 0.217
71814AC 70 90 10 0.6 0.15 23.7 7100 9500 12200 16200 0.217
71815C 75 95 10 0.6 0.15 16.4 7800 10100 13200 18200 0.226
71815AC 75 95 10 0.6 0.15 24.8 6700 8900 12400 17100 0.226
71816C 80 100 10 0.6 0.15 17.1 7400 9500 13700 19600 0.245
71816AC 80 100 10 0.6 0.15 26 6300 8400 12800 18300 0.245
71817C 85 110 13 1 0.3 19.6 6800 8800 20400 28100 0.401
71818AC 85 110 13 1 0.3 29.2 5800 7800 19200 26200 0.401



71818CAP4DBB Single Row Stainless Steel Angular Contact Ball Bearing 1
