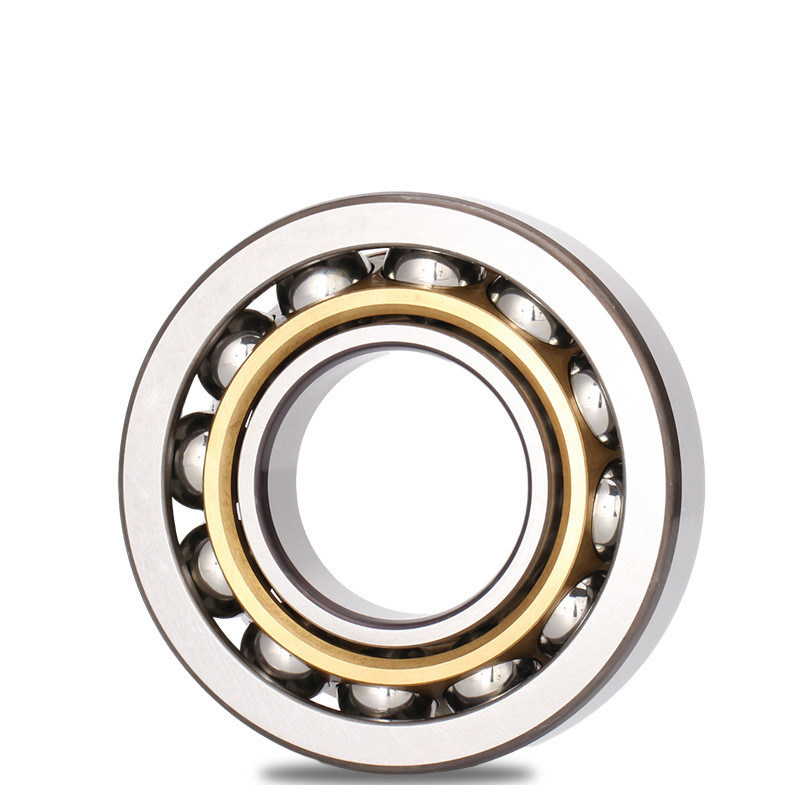

7315 BECBM SKF Brass Cage Single Row Angular Contact Ball Bearing

1
MOQ
USD
Price
7315 BECBM SKF Brass Cage Single Row Angular Contact Ball Bearing
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

angular contact thrust bearing

,

thin section angular contact bearings
Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: 7315 BECBM
Payment & Shipping Terms
Packaging Details: Singlebox
Delivery Time: 7-35 days
Payment Terms: T/T
Supply Ability: 10000PCS/WEEK
Product Description

Brass Cage 7315 BECBM Single Row Angular Contact Ball Bearing

ceramic precision spindle bearings factory



1. Structure: angular contact ball bearings

2. Brand Name: Monton

3. Bore Size: 90mm

4. Outside Diameter: 115mm

5. Model Number: 71818CAP4DBB

6. Precision Rating: ABEC-1/ P0, ABEC-3/P6, ABEC-5/P5, ABEC-7/P4

7. Number of Row: Single row

8. Place of Origin: Japan

9. Width: 12mm

10. Net weight: 0.027KG

11. Material: GCr15 Stainless steel and so on

12. Type: ball bearing

13. Clearance: C0,C1,C2,C3,C4,C5 etc.

14. Vibration: V1,V2,V3

15. Service: OEM Service & Good Service

16. Sample available: Yes

17. Manufacturer: Yes



Angular contact ball bearingsare withhigh speed limit,can support radial load and axial load,can also be subject to
pure axial load,theaxial load capacity determined by the contact angle, with the contact angleincrease,the capacity increases,too.

Single row angular contact ball bearingsonlycan withstand axial load in one direction,when burdenthe radial load, will cause
additional axial force,and it mustbe applied to the corresponding reverse load,sothe types of bearings are generally used in pairs.
Double row angular contact ball bearings can withstand greater radial load,mainly consisting of radial and axial combined load
and torque load, it limits bi-axial displacement of shaft or housing, the contact angleis30 degrees.



New Bearings d D B Cr Cor Grease PRM Oil PRM. Weight
(mm) (mm) (mm) (kN) (kN) (r/min) (r/min) (kg)
7300AC 10 35 11 8.5 3.75 27000 33000 0.054
7300AC/DB 10 35 22 13.8 7.55 21000 27000 0.108
7300AC/DF 10 35 22 13.8 7.55 21000 27000 0.108
7300AC/DT 10 35 22 13.8 7.55 21000 27000 0.108
7300B 10 35 11 - - - - -
7300B/DB 10 35 22 - - - - -
7300B/DF 10 35 22 - - - - -
7300B/DT 10 35 22 - - - - -
7300BTN 10 35 11 - - - - 0
7300C 10 35 11 - - - - -
7300C/DB 10 35 22 - - - - -
7300C/DF 10 35 22 - - - - -
7300C/DT 10 35 22 - - - - -
7301AC 12 37 12 10.2 4.6 24000 31000 0.065
7301AC/DB 12 37 24 16.6 9.2 20000 24000 0.13
7301AC/DF 12 37 24 16.6 9.2 20000 24000 0.13
7301AC/DT 12 37 24 16.6 9.2 20000 24000 0.13
7301B 12 37 12 - - - - -
7301B/DB 12 37 24 - - - - -
7301B/DF 12 37 24 - - - - -
7301B/DT 12 37 24 - - - - -
7301BTN 12 37 12 - - - - 0
7301C 12 37 12 - - - - -
7301C/DB 12 37 24 - - - - -
7301C/DF 12 37 24 - - - - -
7301C/DT 12 37 24 - - - - -
7302AC 15 42 13 12.5 6.45 20000 25000 0.088
7302AC/DB 15 42 26 20.3 12.9 16000 20000 0.176
7302AC/DF 15 42 26 20.3 12.9 16000 20000 0.176
7302AC/DT 15 42 26 20.3 12.9 16000 20000 0.176
7302B 15 42 13 - - - - -
7302B/DB 15 42 26 - - - - -
7302B/DF 15 42 26 - - - - -
7302B/DT 15 42 26 - - - - -
7302BTN 15 42 13 - - - - 0
7302C 15 42 13 - - - - -
7302C/DB 15 42 26 - - - - -
7302C/DF 15 42 26 - - - - -
7302C/DT 15 42 26 - - - - -
7303AC 17 47 14 14.9 7.9 18000 23000 0.12
7303AC/DB 17 47 28 24.2 15.8 15000 18000 0.248
7303AC/DF 17 47 28 24.2 15.8 15000 18000 0.248
7303AC/DT 17 47 28 24.2 15.8 15000 18000 0.248
7303B 17 47 14 13.8 7.3 14000 18000 0.12
7303B/DB 17 47 28 22.5 14.6 11000 15000 0.254
7303B/DF 20 52 30 22.5 14.6 11000 15000 0.254
7303B/DT 17 47 28 22.5 14.6 11000 15000 0.254
7303BTN 17 47 14 - - - - 0
7303BTN1 17 47 14 — — — — 0.12
7303C 17 47 14 15.8 8.4 25000 33000 0.12
7303C/DB 17 47 28 25.7 16.8 20000 27000 0.215
7303C/DF 17 47 28 25.7 16.8 20000 27000 0.215
7303C/DT 17 47 28 25.7 16.8 20000 27000 0.215
7304AC 20 52 15 17.4 9.4 17000 21000 0.15
7304AC/DB 20 52 30 28.3 18.8 13000 17000 0.319
7304AC/DF 20 52 30 28.3 18.8 13000 17000 0.319
7304AC/DT 20 52 30 28.3 18.8 13000 17000 0.319
7304ACM 20 52 15 — — — — 0.146
7304B 20 52 15 16.2 8.7 13000 17000 0.15
7304B/DB 20 52 30 26.3 17.4 10000 13000 0.326
7304B/DF 17 47 28 26.3 17.4 10000 13000 0.326
7304B/DT 20 52 30 26.3 17.4 10000 13000 0.326
7304BTN 20 52 15 - - - - 0
7304BTN1 20 52 15 — — — — 0.15
7304C 20 52 15 18.5 9.95 23000 31000 0.15
7304C/DB 20 52 30 30.1 19.9 18000 24000 0.319
7304C/DF 20 52 30 30.1 19.9 18000 24000 0.319
7304C/DT 20 52 30 30.1 19.9 18000 24000 0.319
7305AC 25 62 17 24.8 14.4 14000 17000 0.243
7305AC/DB 25 62 34 40.3 28.8 11000 14000 0.486
7305AC/DF 25 62 34 40.3 28.8 11000 14000 0.486
7305AC/DT 25 62 34 40.3 28.8 11000 14000 0.486
7305ACJ 25 62 17 - - - - 0
7305ACM 25 62 17 — — — — 0.23
7305B 25 62 17 22.9 13.3 10000 14000 0.243
7305B/DB 25 62 34 37.2 26.6 8300 11000 0.486
7305B/DF 25 62 34 37.2 26.6 8300 11000 0.486
7305B/DT 25 62 34 37.2 26.6 8300 11000 0.486
7305BM 25 62 17 — — — — 0.24
7305BTN 25 62 17 - - - - 0
7305C 25 62 17 26.4 15.3 19000 25000 0.243
7305C/DB 25 62 34 42.8 30.6 15000 20000 0.486
7305C/DF 25 62 34 42.8 30.6 15000 20000 0.486
7305C/DT 25 62 34 42.8 30.6 15000 20000 0.486
7305CJ 25 62 17 - - - - 0.23
7305CQ1/DFS0 25 62 34 - - - - 0.558
7305CQ1/S0 25 62 17 - - - - 0.23
7306AC 30 72 19 30.1 18.9 12000 14000 0.362
7306AC/DB 30 72 38 48.9 37.8 9200 12000 0.724
7306AC/DF 30 72 38 48.9 37.8 9200 12000 0.724
7306AC/DT 30 72 38 48.9 37.8 9200 12000 0.724
7306ACJ 30 72 19 - - - - 0.352
7306ACM 30 72 19 — — — — 0.35
7306ACN2L1/DFS0 30 72 38 - - - - 0.828
7306ACTN1 30 72 19 - - - - 0.352
7306B 30 72 19 27.6 17.4 8700 12000 0.362
7306B/DB 30 72 38 44.9 34.7 6900 9200 0.724
7306B/DF 30 72 38 44.9 34.7 6900 9200 0.724
7306B/DT 30 72 38 44.9 34.7 6900 9200 0.724
7306BEP 30 72 19 - - - - 0.99kg
7306BM 30 72 19 — — — — 0.35
7306BTN 30 72 19 - - - - 0
7306C 30 72 19 32.3 20.3 16000 21000 0.362
7306C/DB 30 72 38 52.5 40.5 13000 17000 0.724
7306C/DF 30 72 38 52.5 40.5 13000 17000 0.724
7306C/DT 30 72 38 52.5 40.5 13000 17000 0.724
7306CM 30 72 19 - - - - 0.424
7306CQ1/DFS0 30 72 38 - - - - 0.828
7306CTN1 30 72 19 - - - - 0.34
7307AC 35 80 21 35.4 22 10000 13000 0.475
7307AC/DB 35 80 42 57.5 44 8200 10000 0.996
7307AC/DF 35 80 42 57.5 44 8200 10000 0.996
7307AC/DT 35 80 42 57.5 44 8200 10000 0.996
7307ACJ 35 80 21 - - - - 0
7307ACM 35 80 21 — — — — 0.47
7307B 35 80 21 32.5 20.2 7700 10000 0.475
7307B/DB 35 80 42 52.7 40.5 6200 8200 1.01
7307B/DF 35 80 42 52.7 40.5 6200 8200 1.01
7307B/DT 35 80 42 52.7 40.5 6200 8200 1.01
7307BM 35 80 21 - - - - 0.551
7307BM/DFYA3 35 80 42 48 49 1100 1500 1.1
7307BTN 35 80 21 - - - - 0
7307BTN/DB 35 80 42 - - - - 0.95
7307BTN/DF 35 80 42 - - - - 0.95
7307BTN/DT 35 80 42 - - - - 0.95
7307BTN1 35 80 21 — — — — 0.47
7307C 35 80 21 37.9 23.6 14000 19000 0.475
7307C/DB 35 80 42 61.6 47.2 11000 15000 0.995
7307C/DF 35 80 42 61.6 47.2 11000 15000 0.995
7307C/DT 35 80 42 61.6 47.2 11000 15000 0.995
7308AC 40 90 23 43.2 27.4 9200 12000 0.657
7308AC/DB 40 90 46 70.2 54.9 7400 9200 1.31
7308AC/DF 40 90 46 70.2 54.9 7400 9200 1.31
7308AC/DT 40 90 46 70.2 54.9 7400 9200 1.31
7308ACJ 40 90 23 - - - - 0.662
7308ACM1 40 90 23 — — — — 0.69
7308B 40 90 23 39.7 25.2 6900 9200 0.657
7308B/DB 40 90 46 64.5 50.5 5500 7400 1.31
7308B/DF 40 90 46 64.5 50.5 5500 7400 1.31
7308B/DT 40 90 46 64.5 50.5 5500 7400 1.31
7308BM 40 90 23 - - - - 0.711
7308BTN 40 90 23 - - - - 0
7308BTN1 40 90 23 — — — — 0.69
7308BTN1/DB 40 90 46 - - - - 1.312
7308C 40 90 23 46.3 29.4 13000 17000 0.657
7308C/DB 40 90 46 75.3 58.8 10000 14000 1.31
7308C/DF 40 90 46 75.3 58.8 10000 14000 1.31
7308C/DT 40 90 46 75.3 58.8 10000 14000 1.31
7308C/P5 40 90 23 - - - - 0.66
7308C/P6 40 90 23 - - - - 0.66
7308CM 40 90 23 - - - - 0.693
7308CQ1/DFS0 40 90 46 - - - - 1.69
7308CQ1/S0 40 90 23 - - - - 0
7309AC 45 100 25 55.1 37.1 8200 10000 0.875
7309AC/DB 45 100 50 89.6 74.2 6600 8200 1.75
7309AC/DF 45 100 50 - - - - -
7309AC/DT 45 100 50 89.6 74.2 6600 8200 1.75
7309ACJ 45 100 25 - - - - 0.95
7309ACM 45 100 25 — — — — 0.89
7309ACM/DB 45 100 50 83 88 9000 1200 2.03
7309B 45 100 25 50.6 34.1 6200 8200 0.875
7309B/DB 45 100 50 82.1 68.2 4900 6600 1.75
7309B/DF 45 100 50 82.1 68.2 4900 6600 1.75
7309B/DT 45 100 50 82.1 68.2 4900 6600 1.75
7309BM 45 100 25 - - - - 0
7309BM/HGDB - - - - - - - 2.03
7309BTN 45 100 25 - - - - 0
7309BTN/DB 45 100 50 - - - - 1.8
7309BTN/DF 45 100 50 - - - - 1.8
7309BTN/DT 45 100 50 - - - - 1.8
7309BTN1 45 100 25 — — — — 0.89
7309BTN1/DTGB 45 100 50 - - - - 1.67
7309C 45 100 25 59.2 39.7 11000 15000 0.875
7309C/DB 45 100 50 96.1 79.5 9000 12000 1.75
7309C/DF 45 100 50 96.1 79.5 9000 12000 1.75
7309C/DT 45 100 50 96.1 79.5 9000 12000 1.75
7309CM 45 100 25 - - - - 0
7309CQ1 45 100 25 - - - - 0.42
7309CQ1/YA 45 100 25 - - - - 1.03
7310AC 50 110 27 70.1 48.1 7300 9100 1.14
7310AC/DB 50 110 54 114 96.3 5800 7300 2.28
7310AC/DF 50 110 54 114 96.3 5800 7300 2.28
7310AC/DT 50 110 54 114 96.3 5800 7300 2.28
7310AC/HV 50 110 27 - - - - 1.08
7310ACJ 50 110 27 - - - - 0
7310ACM 50 110 27 — — — — 1.08
7310ACM/DB 50 110 54 90 98 8200 11000 2.32
7310ACM/DF 50 110 54 - - - - 2.64
7310B 50 110 27 64.4 44.3 5500 7300 1.14
7310B/DB 50 110 54 105 88.6 4400 5800 2.28
7310B/DF 50 110 54 105 88.6 4400 5800 2.28
7310B/DT 50 110 54 105 88.6 4400 5800 2.28
7310BM 50 110 27 - - - - 0
7310BM/DB 50 110 54 80 88 8200 11000 2.32
7310BM/DFYA3 50 110 54 80 88 8200 11000 2.32
7310BTN 50 110 27 - - - - 0
7310BTN/DB 50 110 54 - - - - 2.3
7310BTN/DF 50 110 54 - - - - 2.3
7310BTN/DT 50 110 54 - - - - 2.3
7310BTN1 50 110 27 — — — — 1.08
7310BTN1/DTGB - - - - - - - 2.19
7310C 50 110 27 75.1 51.6 10000 13000 1.14
7310C/DB 50 110 54 122 103 8000 11000 2.28
7310C/DF 50 110 54 122 103 8000 11000 2.28
7310C/DT 50 110 54 122 103 8000 11000 2.28
7310CJ 50 110 27 - - - - 1.06
7310CM 50 110 27 - - - - 1.16
7310CM/DF 50 110 54 94 102 8200 11000 2.32
7311AC 55 120 29 80.9 56.5 6700 8400 1.45
7311AC/DB 55 120 58 132 113 5400 6700 3.03
7311AC/DF 55 120 58 132 113 5400 6700 3.03
7311AC/DT 55 120 58 132 113 5400 6700 3.03
7311ACJ 55 120 29 - - - - 0
7311ACM 55 120 29 — — — — 1.39
7311ACQ1 55 120 29 - - - - 1.64
7311ACQ1/S0 55 120 29 - - - - 1.64
7311ACQ1/SO 55 120 29 — — — — 1.39
7311B 55 120 29 74.3 52 5000 6700 1.45
7311B/DB 55 120 58 121 104 4000 5400 3.07
7311B/DF 55 120 58 121 104 4000 5400 3.07
7311B/DT 55 120 58 121 104 4000 5400 3.07
7311BEP 55 120 29 - - - - 1.34kg
7311BM 55 120 29 - - - - 1.61
7311BM/DB 55 120 58 98 113 7500 9900 13.55
7311BM/HGDB - - - - - - - -
7311BTN 55 120 29 - - - - 0
7311BTN/DB 55 120 58 - - - - 2.88
7311BTN/DF 55 120 58 - - - - 2.88
7311BTN/DT 55 120 58 - - - - 2.88
7311BTN1 55 120 29 — — — — 1.39
7311BTN1/DT 55 120 58 - - - - 2.78
7311C 55 120 29 86.8 60.6 9300 12000 1.45
7311C/DB 55 120 58 141 121 7400 9800 3.04
7311C/DF 55 120 58 141 121 7400 9800 3.04
7311C/DT 55 120 58 141 121 7400 9800 3.04
7311CJ 55 120 29 - - - - 1.38
7311CJE 55 120 29 - - - - 1.461
7311CM 55 120 29 - - - - 1.65
7312AC 60 130 31 92.5 65.6 6200 7700 1.81
7312AC/DB 60 130 62 119 135 6900 9200 3.61
7312AC/DF 60 130 62 150 131 5000 6200 3.62
7312AC/DT 60 130 62 150 131 5000 6200 3.62
7312ACJ 60 130 31 - - - - 0
7312ACM 60 130 31 — — — — 1.71
7312ACM/DB 60 130 62 - - - - 3.61
7312ACM/Z1 60 130 31 - - - - 2.02
7312ACTN1 60 130 31 - - - - 1.73
7312B 60 130 31 84.9 60.3 4600 6200 1.81
7312B/DB 60 130 62 138 121 3700 5000 3.62
7312B/DF 60 130 62 138 121 3700 5000 3.62
7312B/DT 60 130 62 138 121 3700 5000 3.62
7312BEP 60 130 31 - - - - 1.71kg
7312BM 60 130 31 - - - - 0
7312BTN 60 130 31 - - - - 0
7312BTN/DB 60 130 62 - - - - 3.6
7312BTN/DF 60 130 62 - - - - 3.6
7312BTN/DT 60 130 62 - - - - 3.6
7312BTN1 60 130 31 — — — — 1.71
7312C 60 130 31 99.2 70.3 8600 11000 1.81
7312C/DB 60 130 62 161 141 6800 9100 3.62
7312C/DF 60 130 62 161 141 6800 9100 3.62
7312C/DT 60 130 62 161 141 6800 9100 3.62
7312CJ 60 130 31 - - - - 1.71
7312CM 60 130 31 - - - - 1.71
7312CTN1 60 130 31 - - - - 1.74
7313AC 65 140 33 105 75.3 5800 7200 2.22
7313AC/DB 65 140 66 170 151 4600 5800 4.44
7313AC/DF 70 150 70 170 151 4600 5800 4.44
7313AC/DT 65 140 66 170 151 4600 5800 4.44
7313ACJ 65 140 33 - - - - 2.24
7313ACM 65 140 33 — — — — 2.09
7313ACM/DB 65 140 66 143 169 6400 8500 5.22
7313ACM/Z1 65 140 33 - - - - 2.61
7313B 65 140 33 96.1 69.3 4300 5800 2.22
7313B/DB 65 140 66 156 139 3500 4600 4.44
7313B/DF 65 140 66 156 139 3500 4600 4.44
7313B/DT 65 140 66 156 139 3500 4600 4.44
7313BEP 65 140 33 - - - - 2.1kg
7313BM 65 140 33 - - - - 2.42
7313BTN 65 140 33 - - - - 0
7313BTN/DT - - - - - - - 4.18
7313BTN1 65 140 33 — — — — 2.09
7313C 65 140 33 112 80.7 8000 11000 2.22
7313C/DB 65 140 66 182 161 6300 8500 4.44
7313C/DF 65 140 66 182 161 6300 8500 4.44
7313C/DT 65 140 66 182 161 6300 8500 4.44
7313CJ 65 140 33 - - - - 2.23
7313CM 65 140 33 - - - - 2.5
7314AC 70 150 35 118 85.8 5400 6700 2.7
7314AC/DB 70 150 70 191 172 4300 5400 5.67
7314AC/DF 65 140 66 191 172 4300 5400 5.67
7314AC/DT 70 150 70 191 172 4300 5400 5.67
7314AC/Z1 70 150 35 - - - - 0
7314ACJ 70 150 35 - - - - 2.58
7314ACM 70 150 35 — — — — 2.67
7314ACM/DB 70 150 70 161 193 5900 7900 6.2
7314ACM/DF 70 150 70 161 193 5900 7900 6.14
7314ACM/Z1 70 150 35 - - - - 3.1
7314B 70 150 35 108 78.9 4000 5400 2.7
7314B/DB 70 150 70 175 158 3200 4300 5.74
7314B/DF 70 150 70 175 158 3200 4300 5.74
7314B/DT 70 150 70 175 158 3200 4300 5.74
7314BM 70 150 35 - - - - 3.053
7314BM/DB 70 150 70 143 173 3800 5000 6.4
7314BM/HGDB - - - - - - - 6.4
7314BTN 70 150 35 - - - - 0
7314BTN/DB 70 150 70 - - - - 5.4
7314BTN/DF 70 150 70 - - - - 5.4
7314BTN/DT 70 150 70 - - - - 5.4
7314BTN1 70 150 35 — — — — 2.67
7314BTN1/DTGB 70 150 70 - - - - 5.09
7314C 70 150 35 — — — — 2.67
7314C/DB 70 150 70 205 184 5900 7900 5.66
7314C/DF 70 150 70 205 184 5900 7900 5.66
7314C/DT 70 150 70 205 184 5900 7900 5.66
7314CJ 70 150 35 - - - - 2.59
7314CM 70 150 35 - - - - 3.04
7314CTN1 70 150 35 - - - - 2.61
7315AC 75 160 37 128 97 5000 6300 3.15
7315AC/DB 75 160 74 208 194 4000 5000 6.81
7315AC/DF 75 160 74 208 194 4000 5000 6.81
7315AC/DT 75 160 74 208 194 4000 5000 6.81
7315ACJ 75 160 37 - - - - 3.08
7315ACM 75 160 37 — — — — 3.1
7315ACM/DB 75 160 74 175 218 5500 7400 7.14
7315ACM/DT 75 160 74 175 218 5500 7400 7.14
7315ACM/Z1 75 160 37 - - - - 3.57
7315ACQ1 75 160 37 - - - - 3.52
7315ACQ1/DT 75 160 74 175 218 5500 7400 7.04
7315ACQ1/DTS0 - - - - - - - 7.04
7315ACQ1/P6S0E 75 160 37 - - - - 3.52
7315ACTN1 75 160 37 - - - - 3.08
7315B 75 160 37 137 104 7000 9200 3.15
7315B/DB 75 160 74 191 178 3000 4000 6.91
7315B/DF 75 160 74 191 178 3000 4000 6.91
7315B/DT 75 160 74 156 194 3600 4800 6.51
7315BM 75 160 37 - - - - 3.61
7315BTN 75 160 37 - - - - 0
7315BTN/DB 75 160 74 - - - - 6.44
7315BTN/DF 75 160 74 - - - - 6.44
7315BTN/DT 75 160 74 - - - - 6.44
7315BTN1 75 160 37 — — — — 3.1
7315C 75 160 37 137 104 7000 9200 3.15
7315C/DB 75 160 74 223 208 5500 7400 6.81
7315C/DF 75 160 74 223 208 5500 7400 6.81
7315C/DT 75 160 74 223 208 5500 7400 6.81
7315CJ 75 160 37 - - - - 3.1
7315CM 75 160 37 - - - - 3.57
7316AC 80 170 39 139 109 4700 5900 3.85
7316AC/DB 80 170 78 226 218 3800 4700 8.11
7316AC/DF 80 170 78 226 218 3800 4700 8.11
7316AC/DT 80 170 78 226 218 3800 4700 8.11
7316ACF3 80 170 39 - - - - 4.15
7316ACJ 80 170 39 - - - - 3.67
7316ACM 80 170 39 — — — — 3.97
7316ACM/Z1 80 170 39 - - - - 4.21
7316ACTN1 80 170 39 - - - - 3.72
7316B 80 170 39 127 100 3500 4700 3.85
7316B/DB 80 170 78 207 200 2800 3800 8.22
7316B/DF 80 170 78 207 200 2800 3800 8.22
7316B/DT 80 170 78 207 200 2800 3800 8.22
7316BJ 80 170 39 - - - - 4.03
7316BM 80 170 39 - - - - 4.25
7316BM/DT - - - - - - - 1.4
7316BTN 80 170 39 - - - - 0
7316BTN/DB 80 170 78 - - - - 7.62
7316BTN/DT 80 170 78 - - - - 7.62
7316BTN1 80 170 39 — — — — 3.97
7316C 80 170 39 149 117 6500 8600 3.85
7316C/DB 80 170 78 242 233 5200 6900 8.11
7316C/DF 80 170 78 242 233 5200 6900 8.11
7316C/DT 80 170 78 242 233 5200 6900 8.11
7316CJ 80 170 39 - - - - 3.68
7316TNB/DF - - - - - - - 7.62
7317AC 85 180 41 150 122 4400 5500 4.53
7317AC/DB 85 180 82 243 243 3500 4400 9.06
7317AC/DF 85 180 82 243 243 3500 4400 9.06
7317AC/DT 85 180 82 - - - - -
7317ACJ 85 180 41 - - - - 4.97
7317ACM 85 180 41 — — — — 4.84
7317ACM/DB 85 180 82 204 273 4900 6500 9.95
7317ACM/DF 85 180 82 204 273 4900 6500 9.97
7317B 85 180 41 137 112 3300 4400 4.53
7317B/DB 85 180 82 223 223 2700 3500 9.06
7317B/DF 85 180 82 223 223 2700 3500 9.06
7317B/DT 85 180 82 223 223 2700 3500 9.06
7317BEP 85 180 41 - - - - 4.26kg
7317BJ - - - - - - - 4.34
7317BM 85 180 41 — — — — 4.84
7317BM/DT - - - - - - - 9.52
7317BTN 85 180 41 - - - - 0
7317BTN/DB 85 180 82 - - - - 9.52
7317BTN/DF 85 180 82 - - - - 9.52
7317BTN/DT 85 180 82 - - - - 9.52
7317BTN1 85 180 41 — — — — 4.84
7317C 85 180 41 161 130 6100 8100 4.53
7317C/DB 85 180 82 261 261 4900 6500 9.06
7317C/DF 85 180 82 261 261 4900 6500 9.06
7317C/DT 85 180 82 261 261 4900 6500 9.06
7317CJ 85 180 41 - - - - 4.97
7318AC 90 190 43 161 135 4200 5200 5.3
7318AC/DB 90 190 86 261 270 3300 4200 10.6
7318AC/DF 90 190 86 261 270 3300 4200 10.6
7318AC/DT 90 190 86 261 270 3300 4200 10.6
7318ACJ 90 190 43 - - - - 4.83
7318ACM 90 190 43 - - - - 5.811
7318ACTN1 90 190 43 - - - - 5.02
7318B 90 190 43 148 124 3100 4200 5.3
7318B/DB 90 190 86 240 248 2500 3300 10.6
7318B/DF 90 190 86 240 248 2500 3300 10.6
7318B/DT 90 190 86 240 248 2500 3300 10.6
7318BM 90 190 43 — — — — 5
7318BM/DT - - - - - - - 10.2
7318BN2L1/DB - - - - - - - 11.3
7318BTN 90 190 43 - - - - 0
7318BTN/DB 90 190 86 - - - - 10.44
7318BTN/DT 90 190 86 - - - - 10.44
7318BTN1 90 190 43 — — — — 5
7318C 90 190 43 173 145 5800 7700 5.3
7318C/DB 90 190 86 281 289 4600 6100 10.6
7318C/DF 90 190 86 281 289 4600 6100 10.6
7318C/DT 90 190 86 281 289 4600 6100 10.6
7318CJ 90 190 43 - - - - 4.99
7318CM 90 190 43 — — — — 5
7318TNB/DF - - - - - - - 10.44
7319AC 95 200 45 172 149 4000 4900 6.12
7319AC/DB 95 200 90 280 298 3200 4000 12.2
7319AC/DF 95 200 90 280 298 3200 4000 12.2
7319AC/DT 95 200 90 280 298 3200 4000 12.2
7319ACJ 95 200 45 - - - - 6.639
7319ACM 95 200 45 — — — — 5.7
7319ACM/DB 95 200 90 235 335 4300 5800 13.34
7319ACTN1 95 200 45 - - - - 5.81
7319B 95 200 45 158 137 3000 4000 6.12
7319B/DB 95 200 90 256 273 2400 3200 12.2
7319B/DF 95 200 90 256 273 2400 3200 12.2
7319B/DT 95 200 90 256 273 2400 3200 12.2
7319BEP 95 200 45 - - - - 5.77Kg
7319BM - - - - - - - 6.95
7319BM/DT - - - - - - - 12
7319BTN 95 200 45 - - - - 0
7319BTN1 95 200 45 — — — — 5.7
7319C 95 200 45 185 160 5500 7300 6.12
7319C/DB 95 200 90 300 319 4400 5800 12.2
7319C/DF 95 200 90 300 319 4400 5800 12.2
7319C/DT 95 200 90 300 319 4400 5800 12.2
7319CM 95 200 45 - - - - 6.73
7320AC 100 215 47 184 161 3600 4600 7.53
7320AC/DB 100 215 94 298 232 2900 3600 15.1
7320AC/DF 100 215 94 298 323 2900 3600 15.1
7320AC/DT 100 215 94 298 323 2900 3600 15.1
7320ACJ 100 215 47 - - - - 7.23
7320ACM 100 215 47 — — — — 5.7
7320ACTN1 100 215 47 - - - - 7.19
7320B 100 215 47 168 148 2700 3600 7.53
7320B/DB 100 215 94 274 297 2200 2900 15.1
7320B/DF 100 215 94 274 297 2200 2900 15.1
7320B/DT 100 215 94 274 297 2200 2900 15.1
7320BM 100 215 47 - - - - 8.41
7320BM/DT - - - - - - - 14.6
7320BT 100 215 47 - - - - 7.58
7320BTN 100 215 47 - - - - 0
7320BTN1 100 215 47 - - - - 7.39
7320C 100 215 47 197 173 5000 6700 7.53
7320C/DB 100 215 94 320 346 4000 5300 15.1
7320C/DF 100 215 94 320 346 4000 5300 15.1
7320C/DT 100 215 94 320 346 4000 5300 15.1
7320CJ 100 215 47 - - - - 7.24
7320CM 100 215 47 - - - - 8.54
7321AC 105 225 49 208 193 3500 4400 8.62
7321AC/DB 105 225 98 337 386 2800 3500 17.2
7321AC/DF 105 225 98 337 386 2800 3500 17.2
7321AC/DT 105 225 98 337 386 2800 3500 17.2
7321B 105 225 49 191 177 2600 3500 8.62
7321B/DB 105 225 98 310 355 2100 2800 17.2
7321B/DF 105 225 98 310 355 2100 2800 17.2
7321B/DT 105 225 98 310 355 2100 2800 17.2
7321BM 105 225 49 — — — — 5.7
7321BM/DT - - - - - - - 20.48
7321BTN 105 225 49 - - - - 0
7321BTN/DB 105 225 98 - - - - 17.02
7321BTN/DF 105 225 98 - - - - 17.02
7321BTN/DT 105 225 98 - - - - 17.02
7321C 105 225 49 223 207 4800 6400 8.62
7321C/DB 105 225 98 362 413 3900 5100 17.2
7321C/DF 105 225 98 362 413 3900 5100 17.2
7321C/DT 105 225 98 362 413 3900 5100 17.2
7322AC 110 240 50 232 226 3200 4000 10.1
7322AC/DB 110 240 100 377 452 2600 3200 20.2
7322AC/DF 110 240 100 377 452 2600 3200 20.2
7322AC/DT 110 240 100 377 452 2600 3200 20.2
7322ACJ 110 240 50 - - - - 11
7322ACM 110 240 50 — — — — 5.7
7322ACM/DT - 110 240 100 299 463 3700 5000
7322B 110 240 50 213 208 2400 3200 10.1
7322B/DB 110 240 100 346 416 1900 2600 20.2
7322B/DF 110 240 100 346 416 1900 2600 20.2
7322B/DT 110 240 100 346 416 1900 2600 20.2
7322BJ 110 240 50 - - - - 11.31
7322BM 110 240 50 — — — — 11.3
7322BM/DB 110 240 100 267 425 3700 5000 22.9
7322BM/DF 110 240 100 267 425 3700 5000 23.5
7322BT - - - - - - - 11.3
7322BTN - - - - - - - -
7322BTN/DB 110 240 100 - - - - 20.48
7322BTN/DF 110 240 100 - - - - 20.48
7322BTN/DT 110 240 100 - - - - 20.48
7322C 110 240 50 249 242 4500 5900 10.1
7322C/DB 110 240 100 404 484 3500 4700 20.2
7322C/DF 110 240 100 404 484 3500 4700 20.2
7322C/DT 110 240 100 404 484 3500 4700 20.2
7322CM 110 240 50 - - - - 11.35
7324AC 120 260 55 246 252 3000 3700 12.6
7324AC/DB 120 260 110 400 504 2400 3000 25.2
7324AC/DF 120 260 110 400 504 2400 3000 25.2
7324AC/DT 120 260 110 400 504 2400 3000 25.2
7324ACJ 120 260 55 - - - - 0
7324ACM 120 260 55 — — — — 15.6
7324B 120 260 55 225 231 2200 3000 12.6
7324B/DB 120 260 110 - - - - -
7324B/DF 120 260 110 366 462 1800 2400 25.2
7324B/DT 120 260 110 366 462 1800 2400 25.2
7324BM 120 260 55 — — — — 15.6
7324BTN/DB 120 260 110 - - - - 26.7
7324BTN/DF 120 260 110 - - - - 26.7
7324BTN/DT 120 260 110 - - - - 26.7
7324C 120 260 55 265 271 4100 5500 12.6
7324C/DB 120 260 110 431 542 3300 4400 25.2
7324C/DF 120 260 110 431 542 3300 4400 25.2
7324C/DT 120 260 110 431 542 3300 4400 25.2
7324CM 120 260 55 - - - - 13.5
7326AC 130 280 58 301 329 2700 3400 15.4
7326AC/DB 130 280 116 489 659 2200 2700 30.8
7326AC/DF 130 280 116 489 659 2200 2700 30.8
7326AC/DT 130 280 116 489 659 2200 2700 30.8
7326ACJ 130 280 58 - - - - 0
7326B 130 280 58 250 268 2100 2700 15.4
7326B/DB 130 280 116 406 536 1600 2200 30.8
7326B/DF 130 280 116 406 536 1600 2200 30.8
7326B/DT 130 280 116 310 537 3000 4000 35.9
7326C 130 280 58 294 314 3800 5000 15.4
7326C/DB 130 280 116 478 629 3000 4000 30.8
7326C/DF 130 280 116 478 629 3000 4000 30.8
7326C/DT 130 280 116 478 629 3000 4000 30.8
7328AC 140 300 62 329 374 2500 3200 18.8
7328AC/DB 140 300 124 535 748 2000 2500 37.6
7328AC/DF 140 300 124 535 748 2000 2500 37.6
7328AC/DT 140 300 124 535 748 2000 2500 37.6
7328ACJ 140 300 62 - - - - 0
7328B 140 300 62 302 344 1900 2500 18.8
7328B/DB 140 300 124 491 688 1500 2000 37.6
7328B/DF 140 300 124 491 688 1500 2000 37.6
7328B/DT 140 300 124 344 616 2800 3800 42.3
7328B/TT 140 300 186 - - - - 64.9
7328BM 140 300 62 — — — — 22.4
7328C 140 300 62 252 401 2500 4600 18.8
7328C/DB 140 300 124 - - - - -
7328C/DF 140 300 124 573 802 2800 3700 37.6
7328C/DT 140 300 124 573 802 2800 3700 37.6
7330AC 150 320 65 348 414 2300 2900 22.4
7330AC/DB 150 320 130 565 829 1900 2300 44.8
7330AC/DF 150 320 130 448 857 2600 3600 51.6
7330AC/DT 150 320 130 565 829 1900 2300 44.8
7330ACJ 150 320 65 - - - - 26
7330ACM 150 320 65 — — — — 26
7330ACM/DF 150 320 130 - - - - 51.6
7330B 150 320 65 318 380 1800 2300 22.4
7330B/DB 150 320 130 516 760 1400 1900 44.8
7330B/DF 150 320 130 448 856 2600 3600 52.3
7330B/DT 150 320 130 516 760 1400 1900 44.8
7330BM/DF 150 320 130 - - - - 52.3
7330C 150 320 65 374 445 3200 4300 22.4
7330C/DB 150 320 130 607 891 2600 3400 44.8
7330C/DF 150 320 130 607 891 2600 3400 44.8
7330C/DT 150 320 130 607 891 2600 3400 44.8
7332AC 160 340 68 365 455 2200 2700 26.4
7332AC/DB 160 340 136 592 909 1700 2200 52.8
7332AC/DF 160 340 136 592 909 1700 2200 52.8
7332AC/DT 160 340 136 592 909 1700 2200 52.8
7332ACJ 160 340 68 - - - - 36.8
7332ACM 160 340 68 — — — — 36.8
7332B 160 340 68 332 416 1600 2200 26.4
7332B/DB 160 340 136 540 831 1300 1700 52.8
7332B/DF 160 340 136 421 819 2000 3000 61.6
7332B/DT 160 340 136 540 831 1300 1700 52.8
7332BM/DF 160 340 136 - - - - 61.6
7332C 160 340 68 394 490 3000 4000 26.4
7332C/DB 160 340 136 640 980 2400 3200 52.8
7332C/DF 160 340 136 640 980 2400 3200 52.8
7332C/DT 160 340 136 640 980 2400 3200 52.8
7334AC 170 360 72 389 485 2000 2500 31.2
7334AC/DB 170 360 144 631 969 1600 2000 62.4
7334AC/DF 170 360 144 631 969 1600 2000 62.4
7334AC/DT 170 360 144 631 969 1600 2000 62.4
7334B 170 360 72 355 444 1500 2000 31.2
7334B/DB 170 360 144 577 888 1200 1600 62.4
7334B/DF 170 360 144 577 888 1200 1600 62.4
7334B/DT 170 360 144 577 888 1200 1600 62.4
7334C 170 360 72 418 521 2800 3700 31.2
7334C/DB 170 360 144 679 1040 2200 3000 62.4
7334C/DF 170 360 144 679 1040 2200 3000 62.4
7334C/DT 170 360 144 679 1040 2200 3000 62.4
7336AC 180 380 75 409 534 1900 2400 40
7336AC/DB 180 380 150 665 1070 1500 1900 83.9
7336AC/DF 180 380 150 665 1070 1500 1900 83.9
7336AC/DT 180 380 150 665 1070 1500 1900 83.9
7336B 180 380 75 373 488 1400 1900 40
7336B/DB 180 380 150 606 976 1100 1500 83.8
7336B/DF 180 380 150 606 976 1100 1500 83.8
7336B/DT 180 380 150 606 976 1100 1500 83.8
7336BM/SO 180 380 75 — — — — 36.8
7336C 180 380 75 - - - - -
7336C/DB 180 380 150 - - - - -
7336C/DF 180 380 150 - - - - -
7336C/DT 180 380 150 - - - - -
7338AC 190 400 78 450 598 1800 2200 45.5
7338AC/DB 190 400 156 731 1200 1400 1800 94.1
7338AC/DF 190 400 156 731 1200 1400 1800 94.1
7338AC/DT 190 400 156 731 1200 1400 1800 94.1
7338B 190 400 78 411 548 1300 1800 45.5
7338B/DB 190 400 156 668 1100 1100 1400 94.1
7338B/DF 190 400 156 668 1100 1100 1400 94.1
7338B/DT 190 400 156 668 1100 1100 1400 94.1
7338C 190 400 78 - - - - -
7338C/DB 190 400 156 - - - - -
7338C/DF 190 400 156 - - - - -
7338C/DT 190 400 156 - - - - -
7340AC 200 420 80 474 658 1700 2100 52
7340AC/DB 200 420 160 770 1320 1300 1700 104
7340AC/DF 200 420 160 770 1320 1300 1700 104
7340AC/DT 200 420 160 770 1320 1300 1700 104
7340B 200 420 80 - - - - -
7340B/DB 200 420 160 702 1200 1000 1300 104
7340B/DF 200 420 160 702 1200 1000 1300 104
7340B/DT 200 420 160 702 1200 1000 1300 104
7340C 200 420 80 - - - - -
7340C/DB 200 420 160 - - - - -
7340C/DF 200 420 160 - - - - -
7340C/DT 200 420 160 - - - - -
735C 5 16 5 - - - - -
73904CL1 20 37 13 - - - - 0.041



7315 BECBM SKF Brass Cage Single Row Angular Contact Ball Bearing 0

Tag:

deep groove ball bearing

car ball bearing

ball bearing contact angle

Recommended Products
Get in touch with us
Tel : +86 13213639372
Fax : 86--13213639372
Characters Remaining(20/3000)
Get In Touch
No.119 JianShe Road,luoyang city 471000,China
sales@montonbearings.com
+86 13213639372
About
Company Profile Factory Tour Quality Control Contact Us
Products
Angular Contact Ball BearingMud Motor BearingsLNG Pump Bearing All Categories
Mail Us
Let us know your requirement. We will connect best products with you.
Sitemap │ Mobile Site │ Privacy Policy
China deep groove ball bearing Supplier. Copyright © 2017 - 2024 angularcontact-ballbearing.com. All Rights Reserved. Developed by ECER
