71944CP4SUL High Speed Super Precision Angular Contact Ball Bearing 65BNR10HTDUELP4Y 65BNR10

1
MOQ
USD
Price
71944CP4SUL High Speed Super Precision Angular Contact Ball Bearing 65BNR10HTDUELP4Y 65BNR10
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

angular contact thrust bearing

,

thin section angular contact bearings

Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: 71944CP4SUL
Payment & Shipping Terms
Packaging Details: Singlebox
Delivery Time: 7-35 days
Payment Terms: T/T
Supply Ability: 10000PCS/WEEK
Product Description

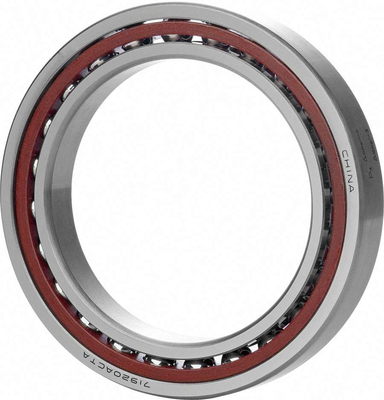

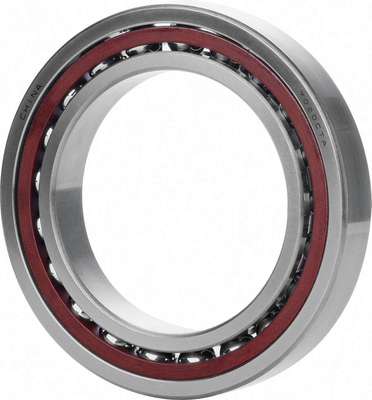

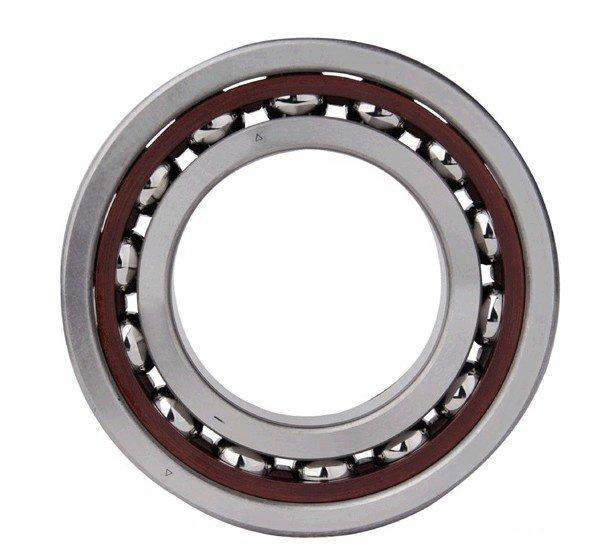

71944CP4SUL

Single Row Angular Contact Ball Bearing

INDUSTRIAL ACTUATORS and MARINE ACTUATORS



Model Size 〆15º 〆25º Cage Material
Limit Speed Limit Speed
ID OD H Rated load amount   Rated load amount
Cr Cor Grease Oil Cr Cor Grease Oil
71944C 220 300 38 206.6 341.1 2600 4300 194.8 323.0 2200 3800 Bakelite



Specifications:

1) Model: Open, Z, ZZ, RZ, 2RZ, RS, 2RS

2) Quality level: reach the same level as the Japanese and European bearings

3) Tolerance level: ABEC-1 (P0), ABEC-3 (P6), ABEC-5(P5)

4) Noise Level: EMQ V1 Z2, EMQ V2 Z3, EMQ V3 Z4, EMQ V4

5) Application: home appliances, low noise and high speed electric motors; automotive components, pumps, machinery.



Feature of Angular contact ball bearings:

When the single-row angular contact ball bearing is carrying the radial load, they will be a component of force in the axial direction. Therefore it is suggested that two of there bearings be applied in back-to-back or face-to-face arrangements. Single row bearings can carry radial load and axial load in one direction. Double-row angular contact ball bearings have two designs of one outer ring and two inner rings and one outer ring and one inner ring. For the design with one outer ring and two inner rings, the axial clearance is easy to control during machining.



Applications:

These bearings are mainly applied in the machine tool spindles, high-frequency motors, gas turbines, oil pumps, air compressors, printing machines and other installations.





Angular Contact Ball Bearing List:

724C 725C 726C 727C 728C 729C
7000AC 7001AC 7002AC 7003AC 7004AC 7009AC 7010AC 7011AC 7012AC 7013AC
7014AC 7015AC 7016AC 7017AC 7018AC 7019AC 7020AC 7021AC 7022AC 7024AC
7026AC 7028AC 7030AC 7032AC 7034AC 7036AC 7038AC 7040AC
7200AC 7201AC 7202AC 7203AC 7204AC 7205AC 7206AC 7207AC 7208AC 7209AC
7210AC 7211AC 7212AC 7213AC 7214AC 7215AC 7216AC 7217AC 7218AC 7219AC
7220AC 7221AC 7222AC 7224AC 7226AC 7228AC 7230AC 7232AC 7234AC 7236AC
7238AC 7240AC 7244AC 7248AC
7300AC 7301AC 7302AC 7303AC 7304AC 7305AC 7306AC 7307AC 7308AC 7309AC
7310AC 7311AC 7312AC 7313AC 7314AC 7315AC 7316AC 7316AC 7317AC 7318AC
7320AC 7322AC 7324AC 7326AC 7328AC 7330AC 7332AC 7336AC 7340AC
7200B 7201B 7202B 7203B 7204B 7205B 7206B 7207B 7208B 7209B
7210B 7211B 7212B 7213B 7214B 7215B 7216B 7217B 7218B 7219B
7220B 7221B 7222B 7224B 7226B 7228B 7230B 7232B 7234B 7236B
7238B 7240B 7244B 7248B
7300B 7301B 7302B 7303B 7304B 7305B 7306B 7307B 7308B 7309B
7310B 7311B 7312B 7313B 7314B 7315B 7316B 7316B 7317B 7318B
7320B 7322B 7324B 7326B 7328B 7330B 7332B 7336B 7340B
7406AC 7407AC 7408AC 7409AC 7410AC 7411AC 7412AC 7413AC 7414AC 7415AC
7416AC 7416AC 7417AC 7418AC
7406B 7407B 7408B 7409B 7410B 7411B 7412B 7413B 7414B 7415B
7416B 7416B 7417B 7418B
