Name: H7011C / ACP4 High Precision Angular Contact Ball Bearing Machine Tool Spindle
Brand: MONTON
SKU: 7014ACP5DBB
Rating: 4.7 (192 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

High Light:

angular contact thrust bearing

thin section angular contact bearings

Basic Infomation

Place of Origin: CHINA

Brand Name: MONTON

Certification: ISO9001

Model Number: 7014ACP5DBB

Payment & Shipping Terms

Packaging Details: Singlebox

Delivery Time: 7-35 days

Payment Terms: T/T

Supply Ability: 10000PCS/WEEK

Gallery

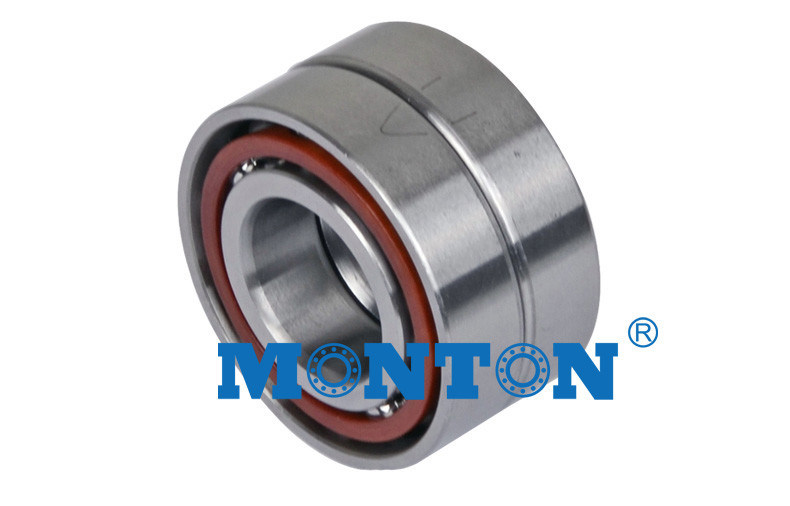

H7011C / ACP4 High Precision Angular Contact Ball Bearing Machine Tool Spindle

Product Description

H7011C/ACP4 High precision angular contact ball bearings machine tool spindle factory

Mechanical angular contact ball bearing H7011C/AC definition

angular contact ball bearings in a tandem arrangement are used when the actual thrust force exceeds the thrust load capacity of a single angular contact ball bearing , Single row angular contact ball bearings in tandem arrangement must always be adjusted against another bearing inversely arranged for shaft guidance in the opposite direction , Single row angular contact ball bearings in spindle bearing design must not be exposed to any misalignments .

Mechanical Angular contact ball bearing design draft :

mechanical angular contact ball bearing_angular contact ball bearing.jpg

Mechanical Angular contact ball bearing H7011C/AC basic information

Commodity name	Angular contact ball bearing
Bearing model	H7011C/AC bearing
Bearing specification	559018 mm
Weight /KG	0.80 KG
Greese/Oil	As requirement
Bearing Series	7xxx,B7xxx,718,719xx
Ring Materical	Chrome Steel,Carbon steel, Stainless steel
Tolerance grade	GB/T307.1-205
ID Size	10mm-280mm
Quality standard	Bearing H7011C/AC passed ISO 9001:2008 standard
Bearing Precision	P0,P6,P5 ,P4
Steel pressed cage	Bending claw form or rivet form
Delivert Date	Normally ready goods and stock within 7 days
Payment Terms	A:30% T/T In Advance,70% Against Copy Of B/L B: 100% L/C At Sight C: Paypal D: Western Union
Application	Home appliances, low noise and high speed electric motors,automotive components,pumps,machinery.
Bearing Service	Bearing H7011C/AC offer OEM service
Package	Single box or according to buyers requirement
We promise	We have complete process for the production and quality assurance to make sure our products can meet your requirement.

Bearing H7011C/AC other Series :

7000C ∝15° 7000AC ∝25° 7000B ∝40°

Boundary dimensions			Limiting speeds		Bearing Desig-nations
d	D	B	Grease	Cor
mm			r/min
12	21	5	70000	110000	71801C
15	24	5	60000	90000	71802C
17	26	5	60000	90000	71803C
20	32	7	45000	67000	71804C
25	37	7	38000	56000	71805C
30	42	7	32000	48000	71806C
35	47	7	26000	40000	71807C
40	52	7	24000	38000	71808C
45	58	7	20000	34000	71809C
50	65	7	18000	30000	71810C
55	72	9	16000	26000	71811C
60	78	10	15000	24000	71812C
65	85	10	14000	22000	71813C
70	95	10	12000	19000	71814C
75	95	10	12000	19000	71815C
80	100	10	11000	18000	71816C
85	110	13	10000	17000	71817C
90	115	13	9500	16000	71818C
95	120	13	9000	15000	71919C
100	125	13	8500	14000	71820C

H7011C / ACP4 High Precision Angular Contact Ball Bearing Machine Tool Spindle 1
