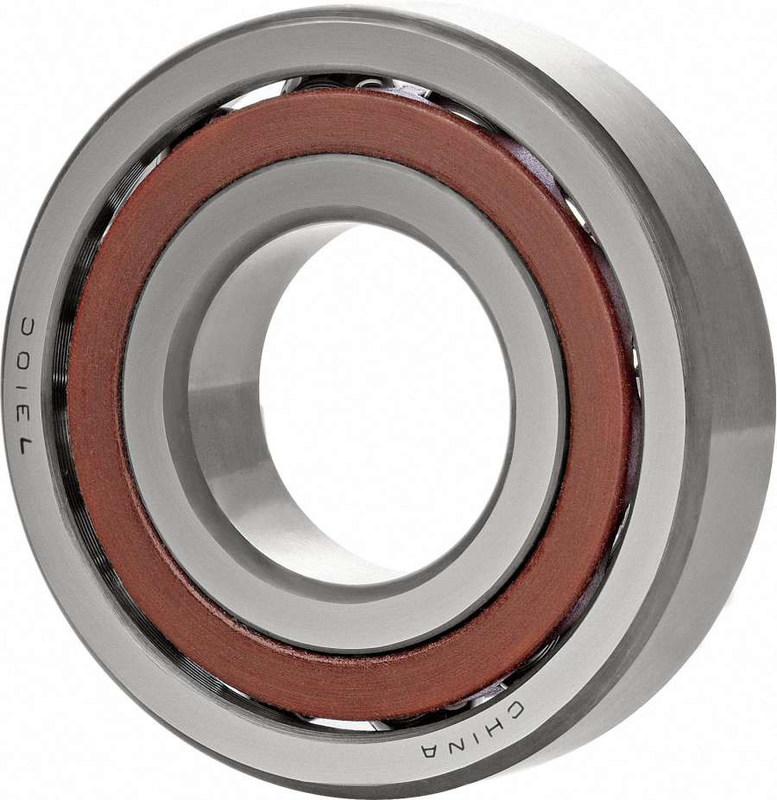

7201BEA Monton High Precision Angular Contact Ball Bearing For Air Compressor

1
MOQ
USD
Price
7201BEA Monton High Precision Angular Contact Ball Bearing For Air Compressor
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

angular contact thrust bearing

,

thin section angular contact bearings

Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: 7201BEA
Payment & Shipping Terms
Packaging Details: Singlebox
Delivery Time: 7-35 days
Payment Terms: T/T
Supply Ability: 10000PCS/WEEK
Product Description

High precision Angular contact ball bearing used for air compressor

Pumps and Compressors are used in a wide range of process industries where requirements are for bearings
offering long life in order to increase Mean Time Between Failures (MTBF). Downtime in production
processes leads to huge costs and loss of productivity.
At the same time, Pump and Compressor manufacturers are looking for more compact machines leading to
downsizing of bearings.
The combination of increased life time and downsizing places increasingly severe demands on ball and roller
bearings; and satisfying those needs call for bearings of the highest quality and reliability.
For pump applications, depending on the pump type, bearings can run under axial loads, radial loads or
combined loads; small to high speeds and different lubrication conditions. In any case, conditions are quite tough and the need for high MTBF is a challenge
for bearings.
For compressor applications, bearings are subjected to high axial and radial loads. They play a key role as
they have to ensure correct positioning of the rotors in the axial and radial direction. This is extremely
important as good positioning of the rotors is directly linked to compressor efficiency. Therefore, axial and
radial deflection of the bearings must be kept as small as possible.
All the products developed by Monton bearings specifically for these applications, are featured in this brochure.
In addition to our standard product range, our research and development centres around the world
continue to develop the next generation of applicationdedicated products by understanding the unique
requirements of our customers so that we can help them to continuously improve their machines. For
screw compressors, we have developed cylindrical roller bearings and HPS angular contact ball bearings
fitted with a patented plastic cage in Linear PolyPhenylene
Sulfide (L-PPS) offering superior characteristics compared to standard plastic cages.
Our team of application engineers, local to your operation, are in contact with OEM R&D teams helping them to find new bearing solutions at each stage of their projects. The experience accumulated after years of involvement in pump and compressor applications is the key for mutual success.
We invite you to have a look through our unique range of innovative problem solving products and if
you have an interest in any of our products, please contact your
Monton bearings Sales office.

7007 CTRDULP4 High precision Angular contact ball bearing used for air compressor

BEA-Montonring NumbersBoundary Dimensions (mm)Basic Load Ratings (N)Limiting Speed (min-1)
dDBr (min)r1 (min)CrCOr
7201BEA-Monton1232100.60.38,1503,75030,000
7301BEA-Monton1237121.00.611,1004,95026,000
7202BEA-Monton1535110.60.39,8004,80026,000
7302BEA-Monton1542131.00.614,3006,90022,000
7203BEA-Monton1740121.00.311,6006,10022,000
7303BEA-Monton1747141.10.616,8008,30020,000
7204BEA-Monton2047141.00.615,6008,15019,000
7304BEA-Monton2052151.10.619,80010,50018,000
7205BEA-Monton2552151.00.617,60010,20017,000
7305BEA-Monton2562171.10.627,20014,90015,000
7206BEA-Monton3062161.00.623,70014,30014,000
7306BEA-Monton3072191.10.636,50020,60013,000
7207BEA-Monton3572171.10.632,50019,60012,000
7307BEA-Monton3580211.51.040,50024,40011,000
7208BEA-Monton4080181.10.638,50024,50011,000
7308BEA-Monton4090231.51.053,00033,00010,000
7209BEA-Monton4585191.10.640,50027,10010,000
7309BEA-Monton45100251.51.062,50039,5009,000
7210BEA-Monton5090201.10.642,00029,7009,500
7310BEA-Monton50110272.01.078,00050,5008,000
7211BEA-Monton55100211.51.051,50037,0008,500
7311BEA-Monton55120292.01.089,00058,5007,500
7212BEA-Monton60110221.51.061,50045,0007,500
7312BEA-Monton60130312.11.1102,00068,5006,700
7213BEA-Monton65120231.51.070,00053,5007,100
7313BEA-Monton65140332.11.1114,00077,0006,300
7214BEA-Monton70125241.51.075,50058,5006,700
7314BEA-Monton70150352.11.1124,00087,5006,000
7215BEA-Monton75130251.51.078,50063,5006,300
7216BEA-Monton80140262.01.087,50070,0006,000
