7203ACP4DBLThin Slim Angular Contact Ball Bearing High Precision Spindle Bearings

1
MOQ
USD
Price
7203ACP4DBLThin Slim Angular Contact Ball Bearing High Precision Spindle Bearings
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

angular contact thrust bearing

,

thin section angular contact bearings
Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: 7203C/ACDBLP4
Payment & Shipping Terms
Packaging Details: Singlebox
Delivery Time: 7-35 days
Payment Terms: T/T
Supply Ability: 10000PCS/WEEK
Product Description

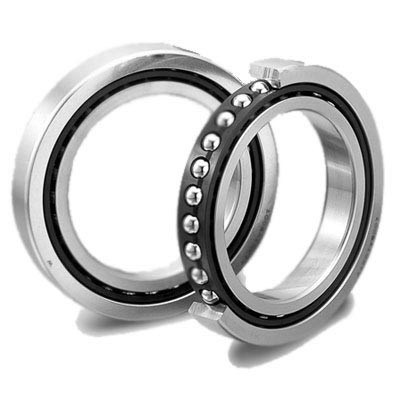

7203C/AC DBL P4 Angular Contact Ball Bearing (17x40x12mm)

Angular contact bearing   High precision Spindle bearings
A . Angular Contact Ball Bearing Parameters
Brand- Monton
Structure- Angular Contact ball
Model number- 7203
Inner ring(mm)- 17
Outer ring(mm)- 40
Width(mm)- 12
Weight(Kg)- 0.064
Materials- Chrome steel/GCR15
Precision grade- P4
Lubrication type- Grease lubrication
Contact Angle- C=15°;AC=25°
Material(Ball)- Steel ball(SUJ2); SN24:Ceramic ball(Si3N4)
Number of Row- Single rows
Material(Cage)- TYN-PA;TR-PF
Combination of mark- SU:Universal combination (single row)
DU:Universal combination (double rows)
DB: Back-to-back combination
DF: Face-to-face combination
DT: Parallel combination
DBD.DFD.DTD: Three rows
DBB.DFF.DBT.DFT.DTT: Four rows
Preloaded mark- EL: Micro preloaded
L : Light preload
M : Medium preloade
H : Heavy preloaded

B . 7203 Angular Contact Ball Bearing Specification Sheet
Model Number Dimensions α=15° α=25° Material
(Cage )		 Weight (kg)
Approx
Limiting speed Limiting speed
d D B Basic load
rating		 Lubrication Basic load
rating		 Lubrication
Cr Cor Grease Oil Cr Cor Grease Oil
7203 17 40 12 11.3 7.4 39000 59000 10.9 7.1 37000 55000 PA/PF 0.064
Categories: Angular Contact Ball Bearings
Ceramic Ball Bearings
Related Search: 7203C DB P4,7203C Ceramic Ball Bearings,7203C Spindle bearing,7203AC DB P4,17x40x12mm Bearing
C . 72 series Angular Contact Ball Bearing Details

Product

Features

Precision Angular Contact Ball BearingsDue to their internal design, angular contact ball bearings can

withstand high radial-axial loads and reach high speeds. They are asymmetrical for

manufacturing reasons and can withstand unidirectional axial loads only. Angular bearings are usually

mounted in a group of two or more opposed preloaded units with rigid or elastic spacers. Typically,

the inner and outer raceways and balls are made of chrome steel. Where operating conditions are severe,

bearings may have ceramic balls creating a hybrid bearing.

Series

Introduction

 ISO 02 Series - highest load, lowest speed bearings-72 Series Angular Contact Bearings

Series

Model No.

7200AC/C 7201AC/C 7202AC/C 7203AC/C 7204AC/C 7205AC/C 7206AC/C 7207AC/C 7208AC/C

7209AC/C 7210AC/C 7211AC/C 7212AC/C 7213AC/C 7214AC/C 7215AC/C 7216AC/C 7217AC/C

7218AC/C 7219AC/C 7220AC/C 7221AC/C 7222AC/C 7224AC/C 7226AC/C 7228AC/C 7230AC/C

7232AC/C 7234AC/C 7236AC/C 7238AC/C 7240AC/C 7244AC/C
Applications Angular contact bearing applications :
electric motors,Spindle,automotive applications, home appliances, industrial equipment.
