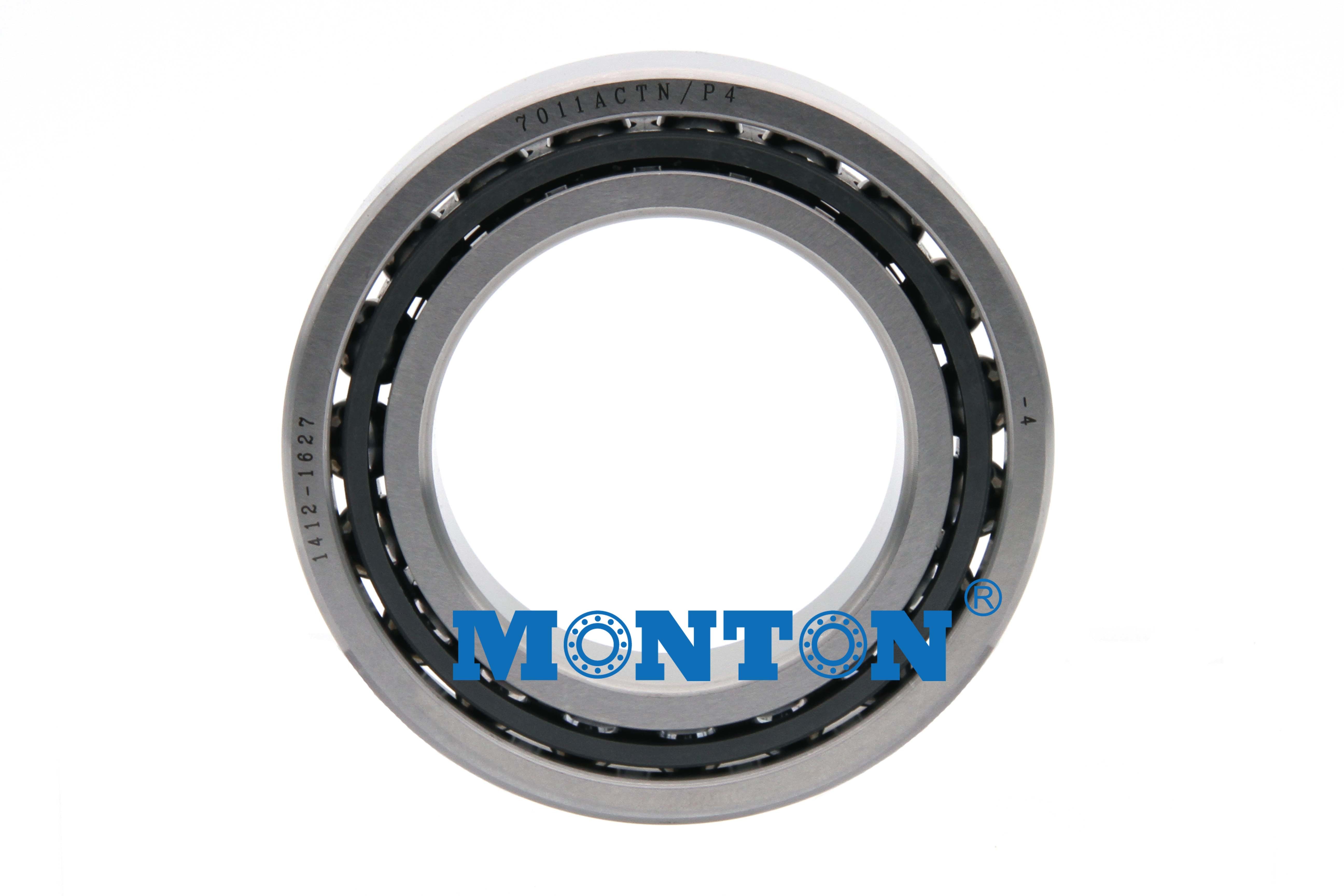

7004C/AC DBL P4 Angular Contact Ball Bearing
Machine Tool Bearing High precision Motor Bearing
| A . Angular Contact Ball Bearing Parameters | |||||||||
| Brand- | Monton | ||||||||
| Structure- | Angular Contact ball | ||||||||
| Model number- | 7004 | ||||||||
| Inner ring(mm)- | 20 | ||||||||
| Outer ring(mm)- | 42 | ||||||||
| Width(mm)- | 12 | ||||||||
| Weight(Kg)- | 0.08 | ||||||||
| Materials- | Chrome steel/GCR15 | ||||||||
| Precision grade- | P4 | ||||||||
| Lubrication type- | Grease lubrication | ||||||||
| Contact Angle- | C=15°;AC=25° | ||||||||
| Material(Ball)- | Steel ball(SUJ2); SN24:Ceramic ball(Si3N4) | ||||||||
| Number of Row- | Single rows | ||||||||
| Material(Cage)- | TYN-PA;TR-PF | ||||||||
| Combination of mark- | SU:Universal combination (single row) DU:Universal combination (double rows) DB: Back-to-back combination DF: Face-to-face combination DT: Parallel combination DBD.DFD.DTD: Three rows DBB.DFF.DBT.DFT.DTT: Four rows |
||||||||
| Preloaded mark- | EL: Micro preloaded L : Light preload M : Medium preloade H : Heavy preloaded |
||||||||
7000AC/C 7001AC/C 7002AC/C 7003AC/C 7004AC/C 7005AC/C 7006AC/C 7007AC/C 7008AC/C 7009AC/C 7010AC/C
7011AC/C 7012AC/C 7013AC/C 7014AC/C 7015AC/C 7016AC/C 7017AC/C 7018AC/C 7019AC/C 7020AC/C
7021AC/C 7022AC/C 7024AC/C 7026AC/C 7028AC/C 7030AC/C 7032AC/C 7034AC/C 7036AC/C 7038AC/C 7040AC/C
7044AC/C 7048AC/C 7052AC/C 7056AC/C 7060AC/C 7064AC/C 7068AC/C 7072AC/C 7076AC/C 7080AC/C7084AC/C
