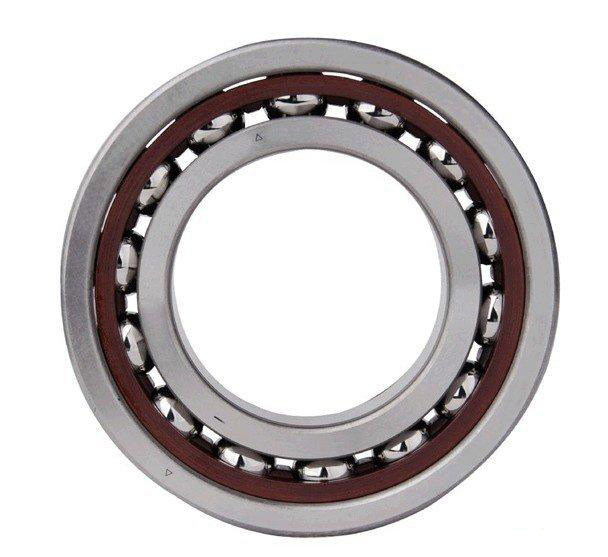

7014CTYNSULP4 70x110x20mm Super Precision Spindle Bearing

1
MOQ
USD
Price
7014CTYNSULP4 70x110x20mm Super Precision Spindle Bearing
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

angular contact thrust bearing

,

thin section angular contact bearings

Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: 7014CTYNSULP4
Payment & Shipping Terms
Packaging Details: Singlebox
Delivery Time: 7-35 days
Payment Terms: T/T
Supply Ability: 10000PCS/WEEK
Product Description

7014CTYNSULP4 70x110x20mm

Super Precision Angular Contact Bearings

Super Precision Spindle Bearings



Angular contact ball bearings are able to support radial load and axial load. As single row angular contact ball bearings can only support axial load in single direction, it often adopts mounting in pair. As matched pairs of bearings, preload for them is more convenient. Retainer are made of brass, synthetic resins or others subject to individual bearing feature and application conditions.

The raceways of angular contact ball bearing in the inner and outer rings can have relative displacement on the horizontal axis. Therefore, this design can make it withstand combined loads, namely, supporting radial and axial loads simultaneously. The axial load capacity of angular contact ball bearing improves with the increasing contact angle.



7014CTYNSULP4 SUPER PRECISION ANGULAR CONTACT SPINDLE BEARINGS

Brand : Monton

Type :Angular Contact Ball Bearings

Contact angle C: 15 Degree

Cage material TYN: Ball guided polyamide Resin

Rings material Bearing steel (SUJ2)

Rolling elements material Bearing steel (SUJ2)

Arrangement SU: universal Single row for matched set

Accuracy rating P4: ISO Class 4 (ABEC – 7)

Limiting speeds Grease: 21,300 rpm Oil: 32,500 rpm

Dynamic load rating 21.6 KN

Static load rating 17KN

Axial load rating 15KN

Dimensions 70mm x 110mm x 20mm

Quantity Two bearings

Made in China



THIS MATCHED SET OF TWO NSK 7014CTYNSULP4:

REPLACES THE FOLLOWING

NSK 7014CTYNDBLP4 NSK 7014CTRDULP4Y NSK 7014CTRDULP4

NACHI 7014CYDUP4 NACHI 7014CYDU/GLP4

FAG 7014CT P4S DUL

SKF 7014CD/P4A SKF 7014CD/P4A DBA

RHP 7014CTDULP4





Commodity name super precision bearing angular contact ball bearing
Bearing model 7014CTYNSULP4 7014CTYNDBLP5 7014CTYNDULP4
Bearing specification 70*110*20mm bearing
Weight /KG 0.5 KG
Greese/Oil As you requirement ,such as SRL,PS2,Alvania R12 and so on
Bearing Series 70xx,72xx,718XX,719xx
Ring Materical Chrome Steel,Carbon steel, Stainless steel
Tolerance grade GB/T307.1-205
ID Size 10mm-280mm
Quality standard NSK precision bearing passed ISO 9001:2008 standard
Bearing Precision P0,P6,P5 ,P4
Steel pressed cage Bending claw form or rivet form
Delivert Date Normally ready goods and stock within 7 days
Payment Terms A:30% T/T In Advance,70% Against Copy Of B/L B: 100% L/C At Sight C: Paypal D: Western Union
Application Home appliances, low noise and high speed electric motors,automotive
components,pumps,machinery.
Bearing Service precision bearing can offer OEM service
Package Single box or according to buyers requirement



Angular Contact Ball Bearing Specification:



Seals Types 2RS,OPEN
Vibration Level Z1V1,Z2V2,Z3V3
Clearance C2,C0,C3,C4,C5
Tolerance Codes ABEC-1,ABEC-3,ABEC-5
Materral GCr15-China/AISI52100-USA/Din100Cr6-Germany
MOQ 1Set at least
Delivery Time 15-45 days after contract
Payment Terms TT/PAPAL/WESTERN UNION
Pavkage Tube package+outer carton+pallets;Single box+outer carton+pallets;Tube pavkge+middle box+outer carton+pallets;According to your requirement

SPindle bearings list:



Ball Bearing Model No. d(mm) D(mm) B(mm)
7000CTYNSULP4 7000A5TYNSULP4 10 26 8
7001CTYNSULP4 7001A5TYNSULP4 12 26 8
7002CTYNSULP4 7002A5TYNSULP4 15 32 9
7003CTYNSULP4 7003A5TYNSULP4 17 35 10
7004CTYNSULP4 7004A5TYNSULP4 20 42 12
7005CTYNSULP4 7005A5TYNSULP4 25 47 12
7006CTYNSULP4 7006A5TYNSULP4 30 55 13
7007CTYNSULP4 7007A5TYNSULP4 35 62 14
7008CTYNSULP4 7008A5TYNSULP4 40 68 15
7009CTYNSULP4 7009A5TYNSULP4 45 75 16
7010CTYNSULP4 7010A5TYNSULP4 50 80 16
7011CTYNSULP4 7011A5TYNSULP4 55 90 18
7012CTYNSULP4 7012A5TYNSULP4 60 95 18
7013CTYNSULP4 7013A5TYNSULP4 65 100 18
7014CTYNSULP4 7014A5TYNSULP4 70 110 20
7015CTYNSULP4 7015A5TYNSULP4 75 115 20
7016CTYNSULP4 7016A5TYNSULP4 80 125 22
7017CTYNSULP4 7017A5TYNSULP4 85 130 22
7018CTYNSULP4 7018A5TYNSULP4 90 140 24
7019CTYNSULP4 7019A5TYNSULP4 95 145 24
7020CTYNSULP4 7020A5TYNSULP4 100 150

24
