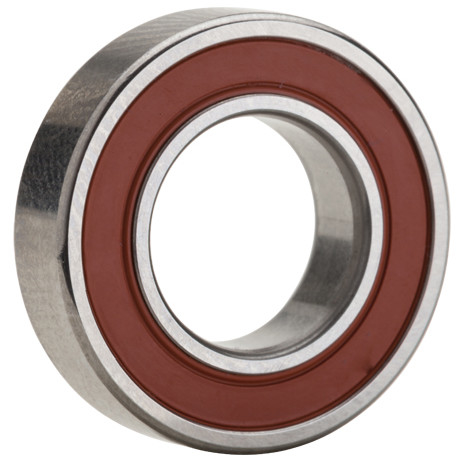

H7000C-2RZHQ1P4DBA Ceramic Angular Contact Ball Bearing Thin Section Bearings

H7000C-2RZHQ1P4DBA Ceramic Angular Contact Ball Bearing Thin Section Bearings
Features Gallery Product Description Request A Quote
High Light:

angular contact thrust bearing


thin section angular contact bearings

Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: H7000C-2RZHQ1P4DBA
Payment & Shipping Terms
Packaging Details: Singlebox
Delivery Time: 7-35 days
Payment Terms: T/T
Supply Ability: 10000PCS/WEEK
Product Description

H7000C-2RZHQ1P4DBA 10*26*8 high precision ceramic angular contact

thin section bearings for Engraving machine

Part Number H7000C-2RZHQ1P4DBA
Bearing Type Angular contact ball bearing
For Load Direction Combined Radial and Thrust
Construction One
Single Row/Double Row Single
Seal Type Open
Precision Rating P4 (ABEC-7) P5 (ABEC-5)
Contact Angle 15
Duplex DB (back-to-back arrangement)
DF (face-to-face arrangement)
DT (tandem arrangement)
Bore Dia (d) 10 mm
Bore Dia Tolerance -0.004mm to 0
Outer Dia (D) 26 mm
Outer Dia Tolerance -0.005mm to 0
Width (B) 8 mm
Width Tolerance -0.04mm to 0
Ring Material 52100 Chrome steel
Ball Material SN24 Ceraimc Ball Si3N4
Cage Material TYN (ball guided polyamide resin cage)
  TR (outer ring guided polyamide resin cage)
Dynamic Load Rating (Cr) (KN) 5.6
Static Load Rating (Cor) (KN) 2.49
Axial Load (KN) 2.16
Max Speed (Grease) (RPM) 63900
Max Speed (Oil) (RPM) 97300
Preload EL (extra light preload)
L (light preload)
M (medium preload)
H (heavy preload)
CP (special preload)
CA (special axial clearance)
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -40 to 120 ºC
Weight (grams) 0.019
