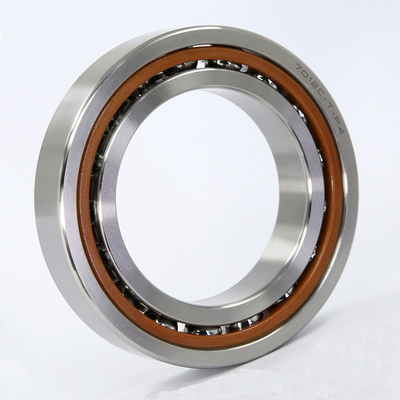

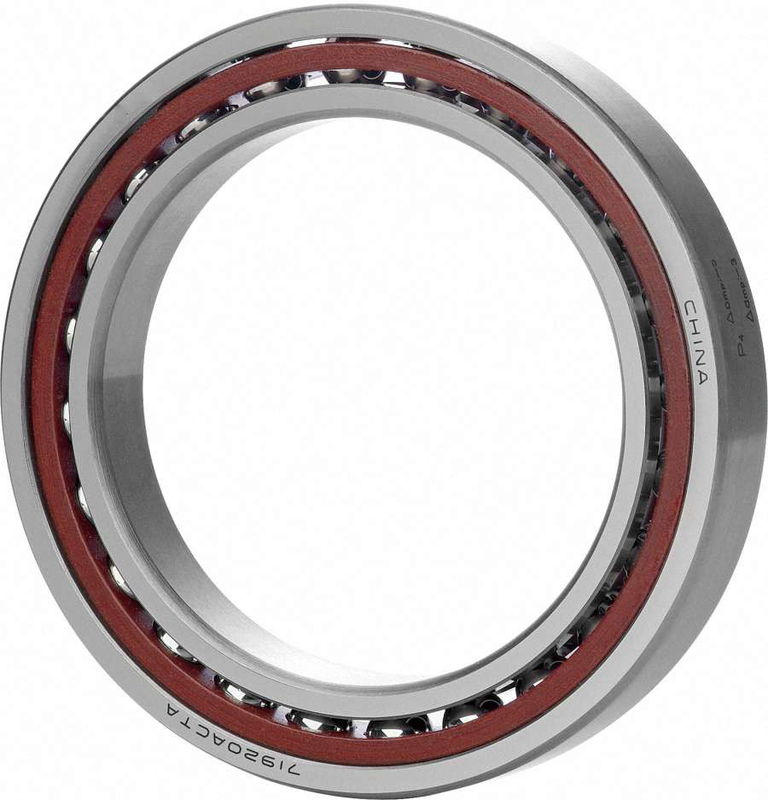

H7003C -2RZHQ1P4DBA High Speed Precision Ball Bearings For Machine Tool Spindle

1
MOQ
USD
Price
H7003C -2RZHQ1P4DBA High Speed Precision Ball Bearings For Machine Tool Spindle
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

angular contact thrust bearing

,

thin section angular contact bearings
Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: H7003C-2RZHQ1P4DBA
Payment & Shipping Terms
Packaging Details: Singlebox
Delivery Time: 7-35 days
Payment Terms: T/T
Supply Ability: 10000PCS/WEEK
Product Description

H7003C-2RZHQ1P4DBA 17*35*10mm

high speed ceramic angular contact ball bearings for machine tool spindle



Part Number H7003C-2RZHQ1P4DBA
Bearing Type Angular contact ball bearing
For Load Direction Combined Radial and Thrust
Construction One
Single Row/Double Row Single
Seal Type Open
Precision Rating P4 (ABEC-7) P5 (ABEC-5)
Contact Angle 15
Duplex DB (back-to-back arrangement)
DF (face-to-face arrangement)
DT (tandem arrangement)
Bore Dia (d) 17 mm
Bore Dia Tolerance -0.004mm to 0
Outer Dia (D) 35 mm
Outer Dia Tolerance -0.006mm to 0
Width (B) 10 mm
Width Tolerance -0.08mm to 0
Ring Material Gcr15
Ball Material SN24 Ceraimc Ball Si3N4
Cage Material TYN (ball guided polyamide resin cage)
TR (outer ring guided polyamide resin cage)
Dynamic Load Rating (Cr) (KN) 6.95
Static Load Rating (Cor) (KN) 3.8
Axial Load (KN) 2.85
Max Speed (Grease) (RPM) 44300
Max Speed (Oil) (RPM) 67400
Preload EL (extra light preload)
L (light preload)
M (medium preload)
H (heavy preload)
CP (special preload)
CA (special axial clearance)
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -40 to 120 ºC
Weight (grams) 0.039
H7003C-2RZHQ1P4DBB,H7003C-2RZHQ1P5DBA,H7003C-2RZHQ1P5DBB,H7003C-2RZHQ1P4SUL,H7003C-2RZHQ1P5SUL
