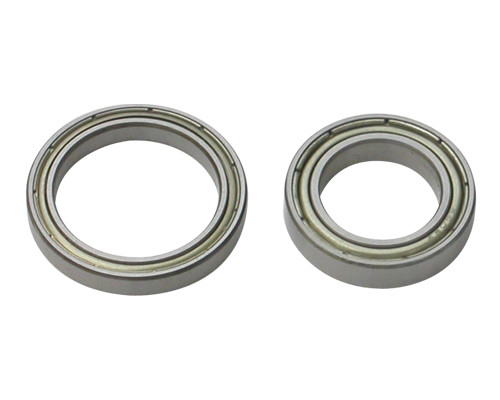

WSP20286HT4K7026 10*15*2.5 self-lubrication ball bearings for the missle

WSP20286HT4K7026  10*15*2.5 self-lubrication ball bearings for the missle
Features Gallery Product Description Request A Quote
Material: No-magnetic Stainless Steel
Accuracy: P4
Applicartion: Missile Or Rocket Or Aerospace
Dimension: 10х15х2,5 Mm
Structure: Deep Groove Ball Bearings
Market: Russua Or Iran Or Ukraine Or Brazil Or USA
Samples: Available
Working Time: 4 Hours
Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: 10х15х2,5 mm
Payment & Shipping Terms
Packaging Details: Singlebox
Delivery Time: 7-35 days
Payment Terms: T/T
Supply Ability: 10000PCS/WEEK
Product Description


10х15х2,5mm Non Standard Bearings Thin Section Angular Contact Ball Bearings For Missile


Missile Bearing10х15х2,5 mm



1. Requirements for bearing design:
1.1.1. Overall dimensions of the bearing:
- outer diameter: 15 0-0,005 mm,
- inside diameter: 10 0-0,005 mm,
- height: 2.5 0-0.025 mm.
- The mounting chamfer of the bearing on all its seating surfaces must be: (0,1… 0,2) mm * 45o.
1.1.2. Bearing Accuracy Class: Grade 4 according to ISO 492.
1.1.3. Degree of accuracy of balls: 3 class according to ISO 3290.
1.1.4. Contact angle: (18 ± 2) o.
1.1.5. The radial clearance should be in the range of 0.008 mm to 0.015 mm.
1.1.6. The axial clearance must be between 0.040 mm and 0.085 mm.
1.1.7. The separator shall not protrude beyond its ends by more than 0.5 mm. The centering of the separator must take place on the outer ring of the bearing. The gap in the separator socket between its wall and the ball must be from 65 μm to 100 μm per side.
1.1.8. The undulations of the inner and outer rings must not exceed 0.0001 mm.
1.1.9. Material of inner and outer bearing rings: AISI 440C steel or equivalent, with a hardness of 58-62 HRC.
1.1.10. Balls Material: AISI 440C steel or equivalent with a hardness of 58-62 HRC or Si3N4 ceramics.
1.1.11. Separator Material: TORLON 4301 PAI or TORLON 4275 PAI or TORLON 4203 PAI.
1.1.12. The design of the bearing must ensure its operability in the operating temperature range from minus 80 ° C to 100 ° C.
Environmental climatic conditions in which the parameters given in section 1.1 are to be measured:
 temperature + 20 ± 2 ° C;
 relative humidity ˂60%;
100 atmospheric pressure 100 ± 4 kPa (750 ± 30 mmHg).

1.2. Requirements for basic bearing parameters:
1.2.1. Radial static load Сo not less than 257 N.
1.2.2. Radial dynamic load C of not less than 350 N.
1.2.3. Axial static Cax load of not less than 180 N.
1.2.4. Rated speed: 5,000 rpm (hereinafter rpm).
1.2.5. The overall vibration level (vibration velocity, hereinafter referred to as ROD) should not exceed
160 μm / s for a total frequency range from 50 Hz to 10,000 Hz. The RWM is measured for all bearings exclusively in the dry state, ie without the us


Brand Monton
Name Missile bearing
Model 10х15х2,5mm
Material stainless steel Outside diameter ISO9001:2001
Precision  ABEC-7
Bore Size 10mm Outside diameter 15mm
Clearance Co, C2, C3, C4
Cage Type peek
Seals Type open
Features They can sustain radial loads mainly and can also sustain some axial load in either direction. The bearings have low friction and very little noise or vibration, These characteristics make them to be available for situations of high speed, high precision, low friction and low noise operations.
Application Radial ball bearings are engineered for use in high-speed, high precision applications for: Agriculture, Automotive, Chemical, General industrial, Utilities.
Package pallet, wooden case,industrial package or as customers' requirement
Price FOB, CFR, CIF Delivery Time 5-10 days



Monton Bearing can supply the customized bearings according to the request.

We have developed one thin section angular contact ball bearings with the dimension 10*15*2.5mm.This bearings are made with special stainless stell material with non-magnatic performance and with P4 accuracy.The width is only 4mm,with 1mm special ball.We have realize batch production for this kinds bearings and now the bearings have been widely used in Russia,iran or USA on the missle.



Dimension:10х15х2,5 mm

Accuracy:High precision

Material:Special Non-Magantic stainless steel

The technical requirements:
Accuracy class:P4.
Type - angular contact (18 degrees).
Dynamic lift capacity, Сr , not less, N – 700.
Static lift capacity, Сor, not less, N – 400.
Retainer materials – torlon 4301 PAI.
Rings materials – steel AISI 440C.
Radial play, μm – 5…10.
Running torque, not more, μN·m – 70.
Accuracy class for balls – 3.
Waviness for raceway outer and inner rings, not more, µm – 0,1.
The general level of vibration, velocity, is measured by ISO 15242 in complete range of frequencies from 50 Hz to 10 000 Hz - not more 200 µm/s (72 dB) (for dry ball-bearings).
Nominal number of turns, n, rpm - 6000.





In the same time:

Monton bearings can also supply other kinds special missile bearings from 2mm~100mm including the non-standard deep groove ball bearings,the non-standard angular contact ball bearings and the non-stand cylindrical roller bearings,ect.

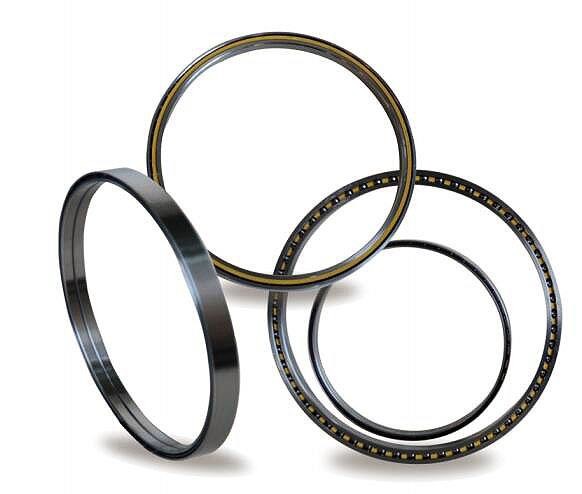

Thin Section Bearing Show

missile bearings


Thin Section Bearing Application


Aerospace and astronomy instrumentation
Fixing and work holding equipment
Food processing equipment
Glass working equipment
Index and rotary tables
Packing equipment
Machine tools
Medical devices
Optical scanning equipment
Satellite and communications equipment
Textile machinery
Tube and pipe cutting machines
Semiconductor manufacturing equipment
Sorting equipment
