In 2019, our company successfully developed a thin section ball bearing for a one UAV(Unmanned Aerial Vehicle) company, which has been in batches production now.
As thin section ball bearing with light weight and very thin height,it's best choise for UAV(Unmanned Aerial Vehicle) platform.
Monton bearing can produc Low-friction seals and low noise,hith speed.
Monton UAV(Unmanned Aerial Vehicle) Platform Bearing project Profile introduction
Thin section ball bearing:
Monton’s precision thin section bearing line offers high accuracy and low profile design in standard stainless steel or chrome steel configurations. This line includes deep groove and angular contact configurations with special features available to meet specific application requirements.
UAV Platform:
Our drones are semi-small, portable and hand-launched solutions, capable of generating reliable and high precision data and situational awareness. All our UAV solutions are extremely user-friendly both when operating and deploying the aircraft.
Applications:
UAV Platform
CSEA025 Thin section angular contact ball bearings details:
CSEA025 | |||
Thin section bearings | |||
d | 63.5 | mm | |
D | 76.2 | mm | |
B | 6.35 | mm | |
D1 | 71.5 | mm | |
D2 | 72.9 | mm | |
d1 | 68.2 | mm | |
rmin | 0.6 | mm | |
Weight | 0.06 | KG | Mass |
Cr | 3550 | N | Basic dynamic load rating, radial |
Cor | 3800 | N | Basic static load rating, radial |
nG | 8500 | 1/min | Limiting speed |
for operating temperatures from -54°C to +120°C |
Our customer UAV Platform Model : M390 UAV
Max flight distance :95km
Max payload: 10KG
Survey radius: 35KM
UAV Platform Product Specification | |
PARAMETER | VALUE |
MTOW | 22kg |
Empty Weight (excluding payload) | 16 kg |
Wing Span | 3.5 m |
Length | 2.5m |
Wing Area | 0.9 m2 |
Propulsion Type | Geared Brushless |
Propulsion Power | 2700 W |
Battery Type | Lithium Polymer |
Battery Cartridge Capacity | 650 Wh |
Onboard Voltage | 6V, 12V |
Onboard Continuous Power | 100 Watts |
Max Payload | 7 kg |
Takeoff Method | Catapult, Runway or car top launch |
Environmental Protection | Sealed against rain, snow |
Key Features
M390 UAV platform ready for payload and autopilot integration
20+ hour endurance with fuel injected engine option
Up to 10 kg payload capacity
80 W or 100 W onboard generator system
Catapult, car-top or runway takeoff
Wide range of standard subsystems and options
M390 UAV is a relatively advanced vertical takeoff and landing drone. Its fuselage is made of ultra-light composite material,
and the aircraft uses a forward tilting motor unit with a simple and reliable structure. The aircraft can take off and land fully
autonomously, which solves the problem that fixed-wing aircraft requires a dedicated runway for take-off and landing.
It uses a unique quick snap connection structure, which can be assembled and debugged within 5 minutes.
Thanks to its advanced aerodynamic design and advanced flight control technology, this aircraft has a long battery life,
strong wind resistance and excellent flight capabilities. Advanced automatic flight control system combined with simple
operation design enables a single operator to complete the control. The flight control uses a three-redundancy design
and perfect safety design, making the aircraft extremely safe.
M390 UAV has ample task load space and perfect interface design, which can be quickly replaced, and accommodates a
variety of task loads including HD cameras, infrared / visible light pods, thermal imaging pods, etc., which greatly
meets users' various application demand.
Universal Payload Mount
M390 UAV has a swappable universal payload mount that can be removed in seconds and used for various payloads.
The most sophisticated payloads such as retractable gimbals can be installed by integrators into the fuselage and utilize
the available space efficiently. The universal payload mount has predetermined mounting points that are precisely
machined in aluminum frame as well as removable ballast slugs that will simplify the payload integration process considerably.
Performance
Sleek and efficient design gives best in class performance. Optimized for endurance, M390 UAV airframe has enough internal
volume to lift 7.5 liters of fuel which will provide 20+ hours endurance with the fuel injected engine. Optimized high lift flap
system provides stall speeds of <13 m/s while giving excellent flight handling qualities due to a well designed V-tail geometry.
Modular design
All components of the M390 UAV are easily removable and completely interchangeable. Wing splits in three 1.1 meter sections and
the V-tail splits in two parts. High-end industrial grade push-pull connectors are installed in tail-boom joints as standard.
The quick release fastening is used extensively in M390 UAV airframe. Access covers are equipped with 1/4 turn quick fasteners, tail-booms are equipped with a purpose developed quick release aluminum joints.
UAV(Unmanned Aerial Vehicle) Platform Bearing and UAV Product photo Profile

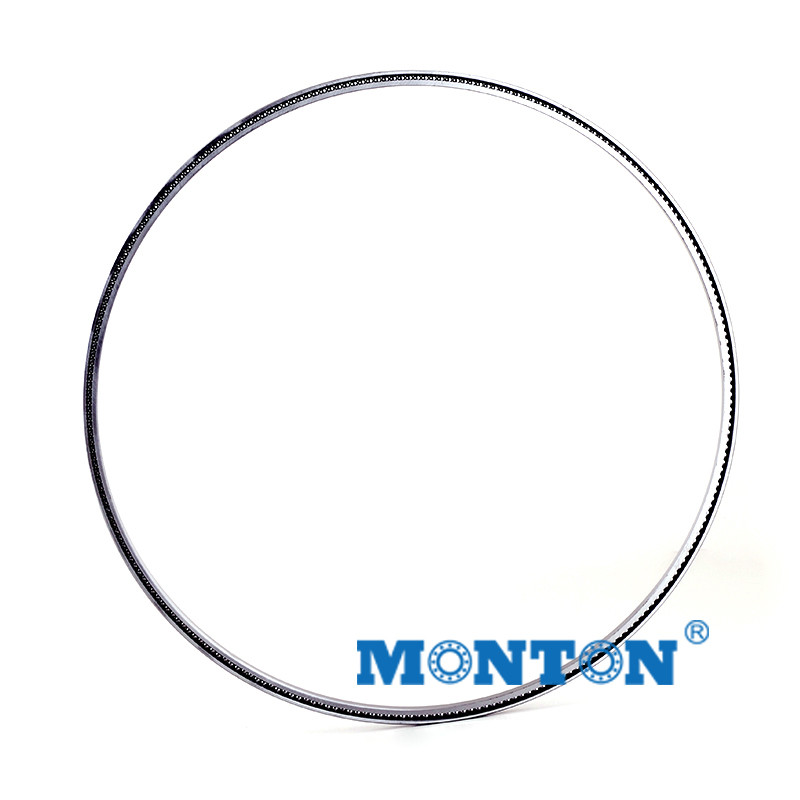

Thin section ball bearing for UAV(Unmanned Aerial Vehicle) Platform

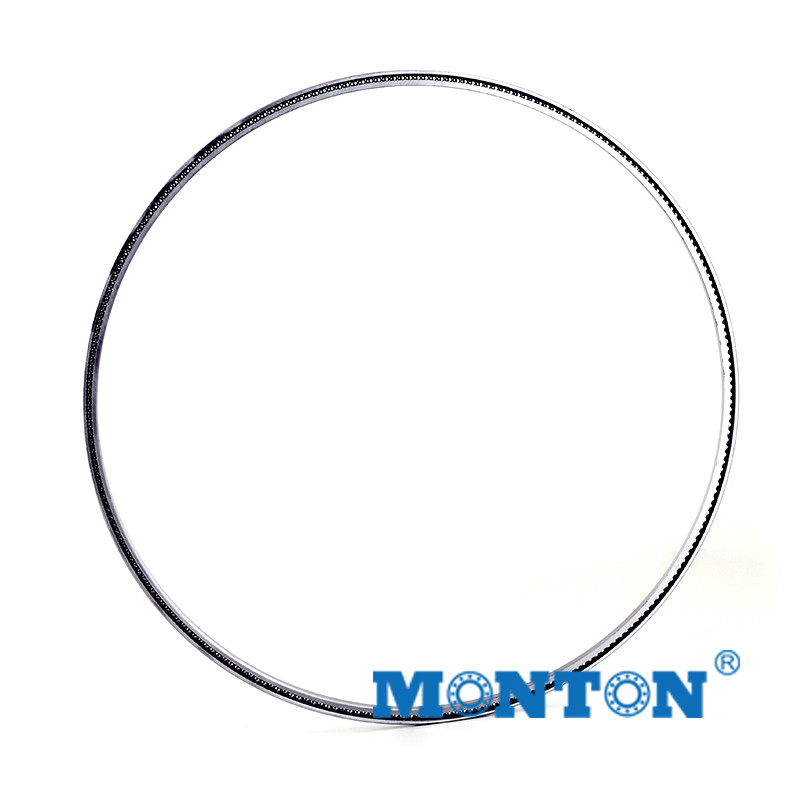

Thin section ball bearing for UAV(Unmanned Aerial Vehicle) Platform
Thin section ball bearing for UAV(Unmanned Aerial Vehicle) Platform
UAV(Unmanned Aerial Vehicle) Platform
UAV(Unmanned Aerial Vehicle) Platform
Welcome inquiry and coperation with us.
