751138MSP/5 190*227*37mm Single direction angular contact thrust ball bearings
1 PCS
MOQ
Ask
Price
751138MSP/5 190*227*37mm Single direction angular contact thrust ball bearings
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Luoyang
Brand Name: MONTON
Certification: ISO9001-2008
Model Number: 751138MSP/5
Payment & Shipping Terms
Packaging Details: Single box
Delivery Time: 5-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000PCS/Day
Specifications
Bearing: 751138MSP/5
D: 190mm
D: 227mm
B: 37mm
Weight: 7.571KG
Material: Gcr15
Product Description

751138MSP/5



Bearing Dimension(Metric) Weight
Dw Dg Dw Dg H Wgt. lbs
751138MSP/5 190 203 227 240 37 7.57

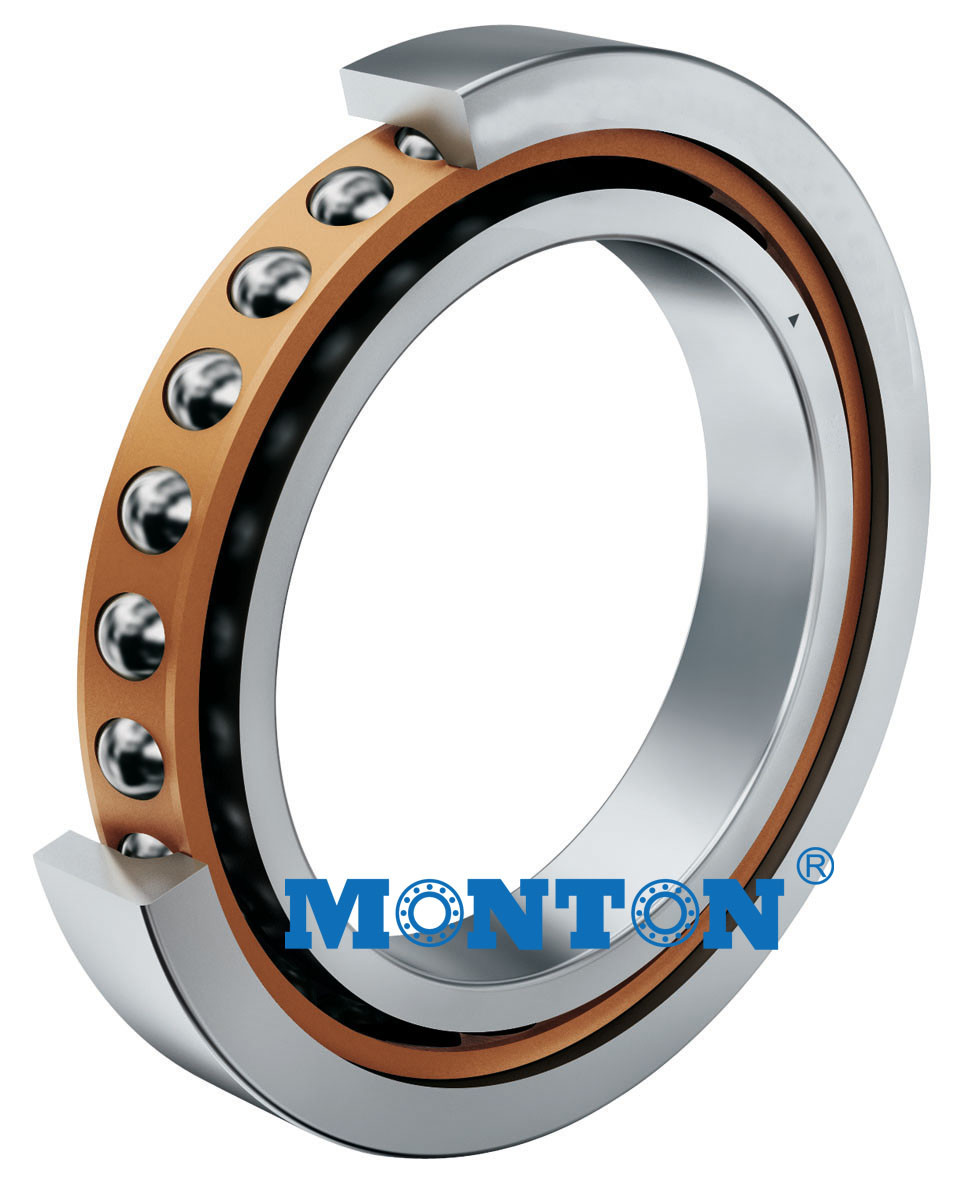

Single direction angular contact thrust ball bearings

Single direction angular contact thrust ball bearings have been developed specially for the support of ball and roller screws in machine tools, and they also can be used successfully for other applications. These non-separable design bearings, which have a ball-centred cage of the polyamide 6,6 incorporating a large number of balls, stands particularly close conformity between the balls and raceways with 60º contact angle. These design characteristics contribute to:



(1) High axial stiffness of the bearing



(2) Suitable for the accommodation of radial load in addition to axial load



(3) High running accuracy especial for axial running



(4) High speed and acceleration performance



(5) Low friction torque

Angular Contact Thrust Ball Bearing.jpg

MONTON single direction angular contact thrust ball bearings can be supplied in matched sets of two, three or four bearings.
