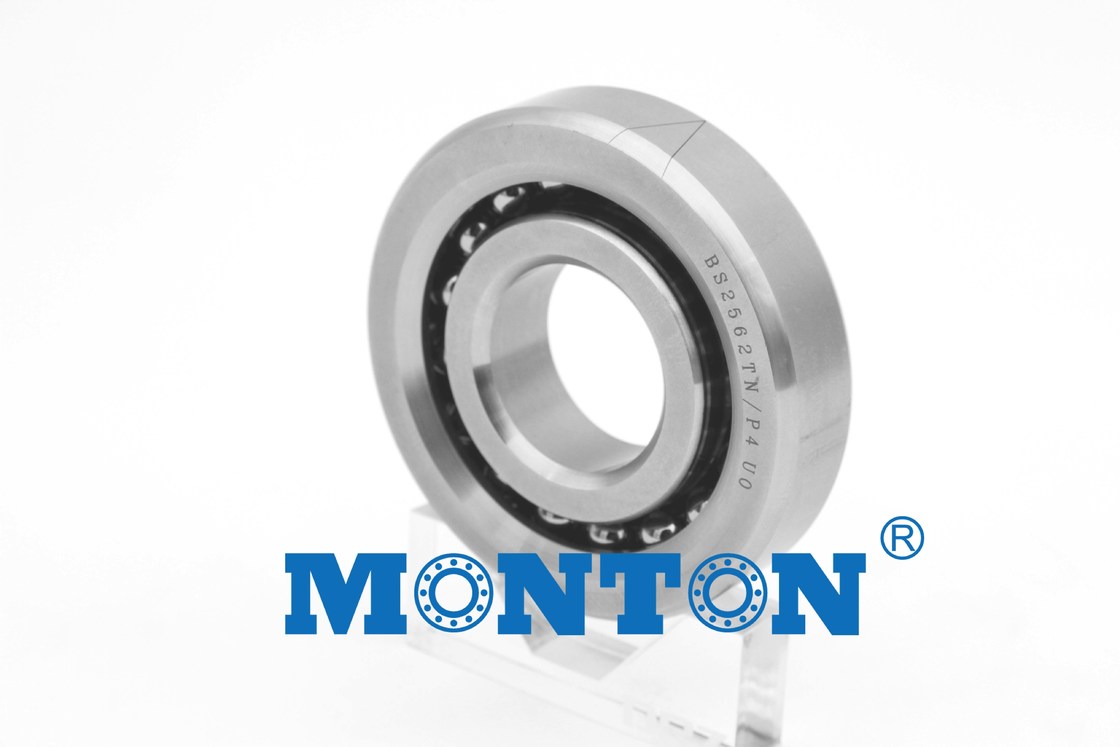

25TAC62BDFC10PN7A 25*62*15mm machine tool spindleb Angular Contact Bearing

1
MOQ
Ask
Price
25TAC62BDFC10PN7A 25*62*15mm machine tool spindleb Angular Contact Bearing
Features Gallery Product Description Request A Quote
Features
Specifications
Bearing: 25TAC62BDFC10PN7A
D: 25mm
D: 62mm
B: 15mm
Weight: 0.35KG
Number Of Row: Single Row
Precision Rating: P4,P5
Seals Type: ZZ 2RS OPEN
Structure: Angular Contact
Type: Ball
Bore Size: 5 - 30 Mm
Application: Machine Parts,Air Compressor,Reducer,Pump,Car Wheel
Sample: Avaliable
Package: Standard Package
Vibration: V1 V2 V3 V4,Z1V1 Z2V2 Z3V3
Clearance: C0
Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: 25TAC62BDFC10PN7A
Payment & Shipping Terms
Packaging Details: Singlebox
Delivery Time: 7-35 days
Payment Terms: T/T
Supply Ability: 10000PCS/WEEK
Product Description

25TAC62BDFC10PN7A 25*62*15mm machine tool spindleb Angular Contact Bearing

25TAC62BDFC10PN7A 25*62*15mm machine tool spindleb Angular Contact Bearing 0

Product Description
Axial angular contact ball bearings 25TAC62
Bearing number : 25TAC62

Size (mm) : 25x62x15

Brand : MONTON

Bore Diameter (mm) : 25

Outer Diameter (mm) : 62

Width (mm) : 15



25TAC62BDFC10PN7A 25*62*15mm machine tool spindleb Angular Contact Bearing 1

25TAC62BDFC10PN7A 25*62*15mm machine tool spindleb Angular Contact Bearing 2



Open and sealed spindle bearings can be easily distinguished by their design. It is also possible to specify whether the inner ring or outer ring is produced with one shoulder removed.

Open Design
Open spindle bearings make optimum use of the internal space by allowing a higher number of balls and a window cage. This results in maximum load carrying capacities and therefore maximum bearing life. This open design is recommended for oil lubrication, as it allows relubrication using spacers. No dirt must be permitted to enter the bearing and continuous relubrication should be used.

Spindle Brgs - Open Design
Sealed Design
Sealed HQW spindle bearings generally have non-contact seals on both sides, which ensure improved protection against contaminants such as dust which could damage the internals of the bearing. This design also restricts the leakage of lubricant out of the bearing. The use of seals is recommended for applications where lifetime grease lubrication is a requirement. Since these are non-contact seals there is no negative effect on friction or speed ratings.

HQW seals are made of fluororubber which can withstand peak temperatures of 230°C. The material possesses a very high resistance to grease and mineral oil. Further advantages of the sealed design include ease of handling and trouble-free installation, making it particularly suitable where bearings are being replaced.
