30TAC62CSUHPN7C 30*62*15mm Thrust Angular Contact Ball Bearing for Ball Screw

1
MOQ
Ask
Price
30TAC62CSUHPN7C 30*62*15mm Thrust Angular Contact Ball Bearing for Ball Screw
Features Gallery Product Description Request A Quote
Features
Specifications
Number Of Row: Single Row,Double Row
Precision Rating: P4,P5
Seals Type: Open,ZZ 2RS OPEN
Structure: Angular Contact
Type: Angular Contact
Bore Size: 0 - 20 Mm
Outside Diameter: 10 - 55 Mm
Application: Machine Parts,Air Compressor,Reducer,Pump,Car Wheel
Sample: Avaliable
Product Name: 30TAC62CSUHPN7C
Package: Standard Package
Vibration: V1 V2 V3 V4
Clearance: C0
Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: 30TAC62CSUHPN7C
Payment & Shipping Terms
Packaging Details: Singlebox
Delivery Time: 7-35 days
Payment Terms: T/T
Supply Ability: 10000PCS/WEEK
Product Description

30TAC62CSUHPN7C 30*62*15mm Thrust Angular Contact Ball Bearing for Ball Screw



Part Number 30TAC62BSUC10PN7B

Weight 1.0000

Brand MONTON
Bearing Type Angular Contact Ball Screw Support Bearing - ABEC 7 Precision

Inside Diameter 30 MM

Outside Diameter 62 MM

Width 15 MM

Other Dimensions N/A

Enclosure None

Material Bearing Steel

Lubrication Provided on Package

Special Features N/A

Reference Number L3062H; MM30BS62; 30TAB06; 30TAC62B; BSB030062; BSD3062G


Super Precision Ball Screw Support Metric Ball Bearing

60 Degree Contact Angle

SU = Single Universal Ground

Can Combine For: Duplex, Triplex, Quad -- Face to Face or Back to Back

C10 = Standard Preload Symbol for Metric Series

PN7B = Tighter Bore and O.D. Accuracy for SU Bearing

P4 = ABEC 7 Precision

Note: Pricing is for 1 Bearing Single, Duplex Pair = 2, Triplex = 3 Bearing Singles



1 Features


This is highly rigid and accurate ball screw support bearing often used for the machine tool driving mechanism.
1 High axial rigidity
Uses many balls, and set high contact angle at 60 degrees.


2 Small friction torque
Friction torque is smaller than that of tapered or cylindrical roller bearing. This contributes to
accurate rotation by a small driving power.


3 Axial play is pre-adjusted


Combination bearings are already adjusted to a suitable preload. Universal combination bearing
(SU) furnishes certain preload for all combinations
(DB, DF, and other).


4 Simple mounting structure


A duplex combination of bearings can receive axial
and radial loads. Therefore, the installation
structure is simpler than when both a thrust bearing
and a radial bearing are used.


5 Easy handling
Inner and outer rings are inseparable, and are easy to handle.


6 Superb polyamide resin retainer


Uses polyamide resin retainer which is superb to
friction and furnishes high precision rotations.

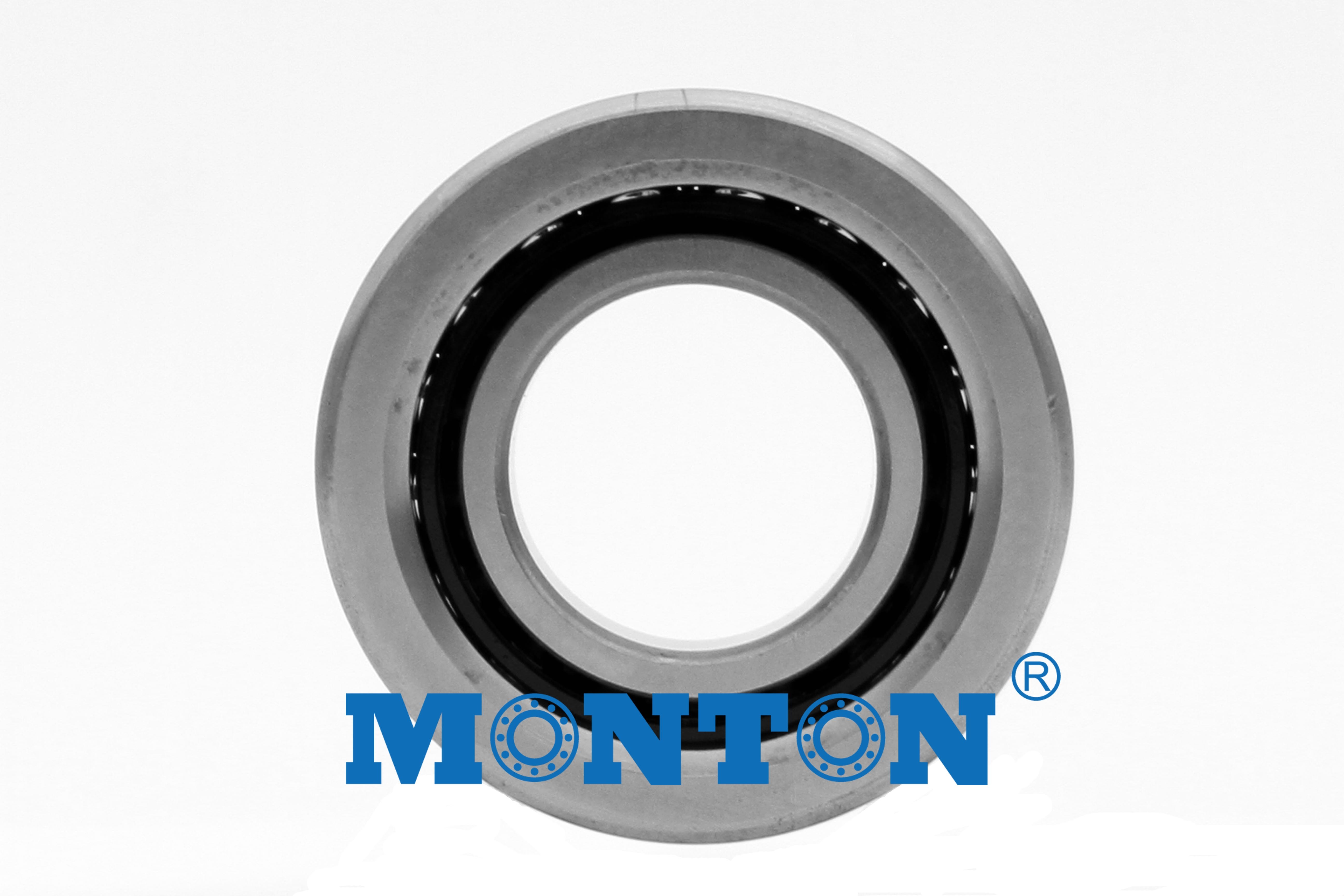

30TAC62CSUHPN7C 30*62*15mm Thrust Angular Contact Ball Bearing for Ball Screw 0

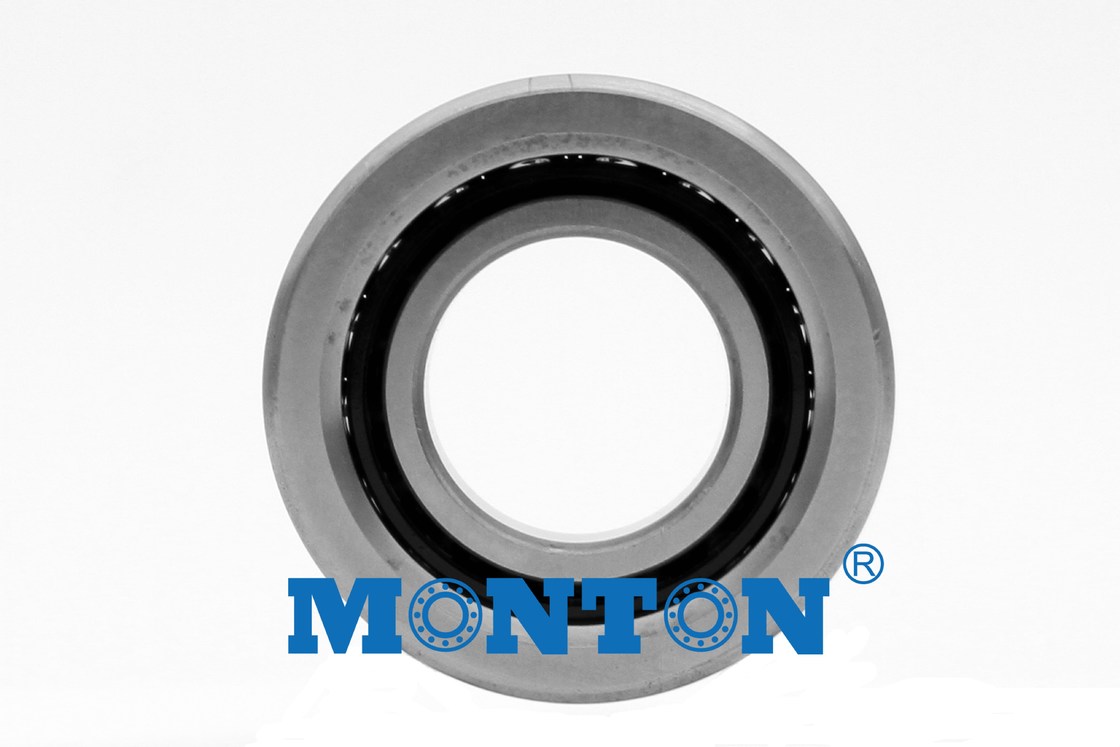

30TAC62CSUHPN7C 30*62*15mm Thrust Angular Contact Ball Bearing for Ball Screw 1
