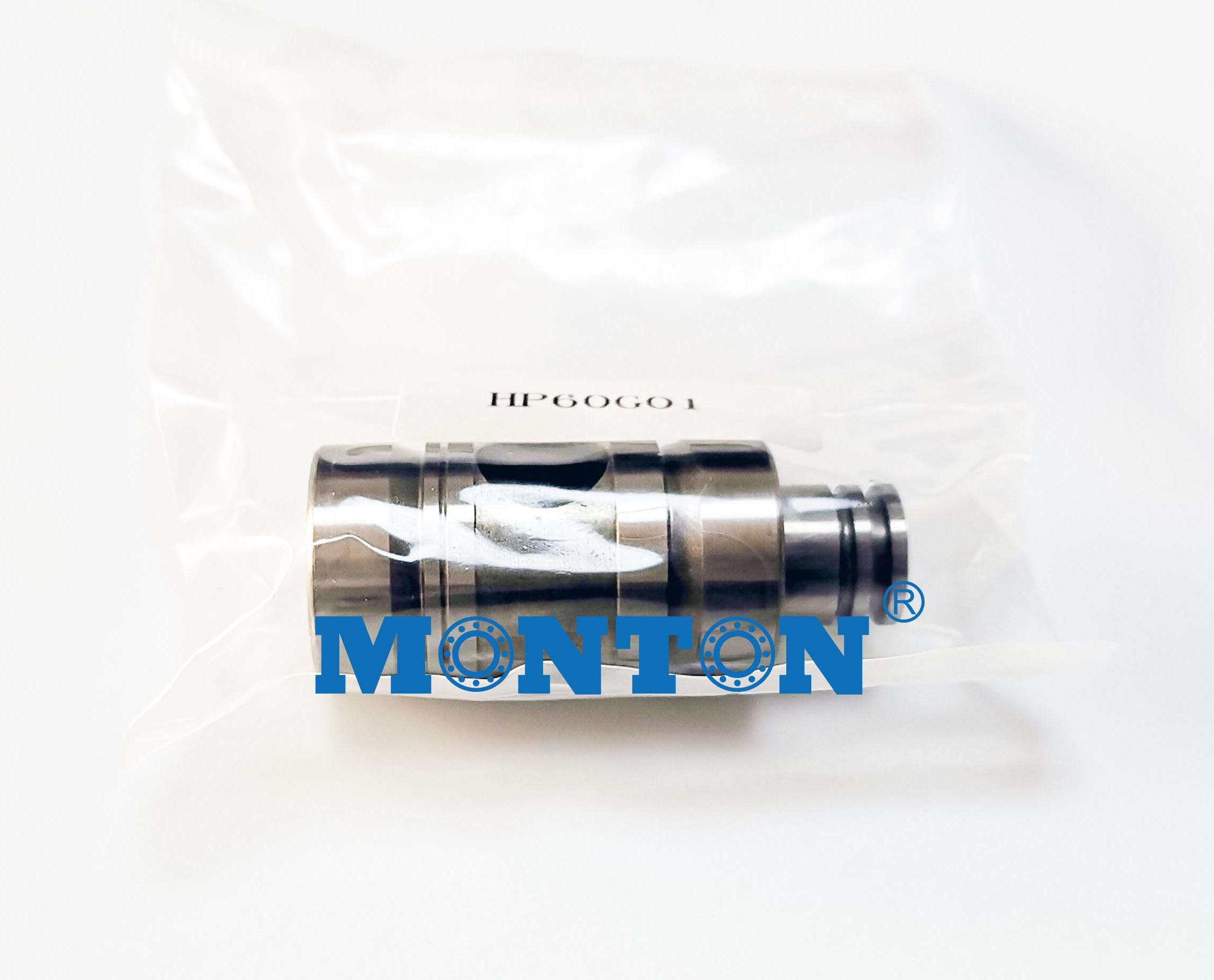

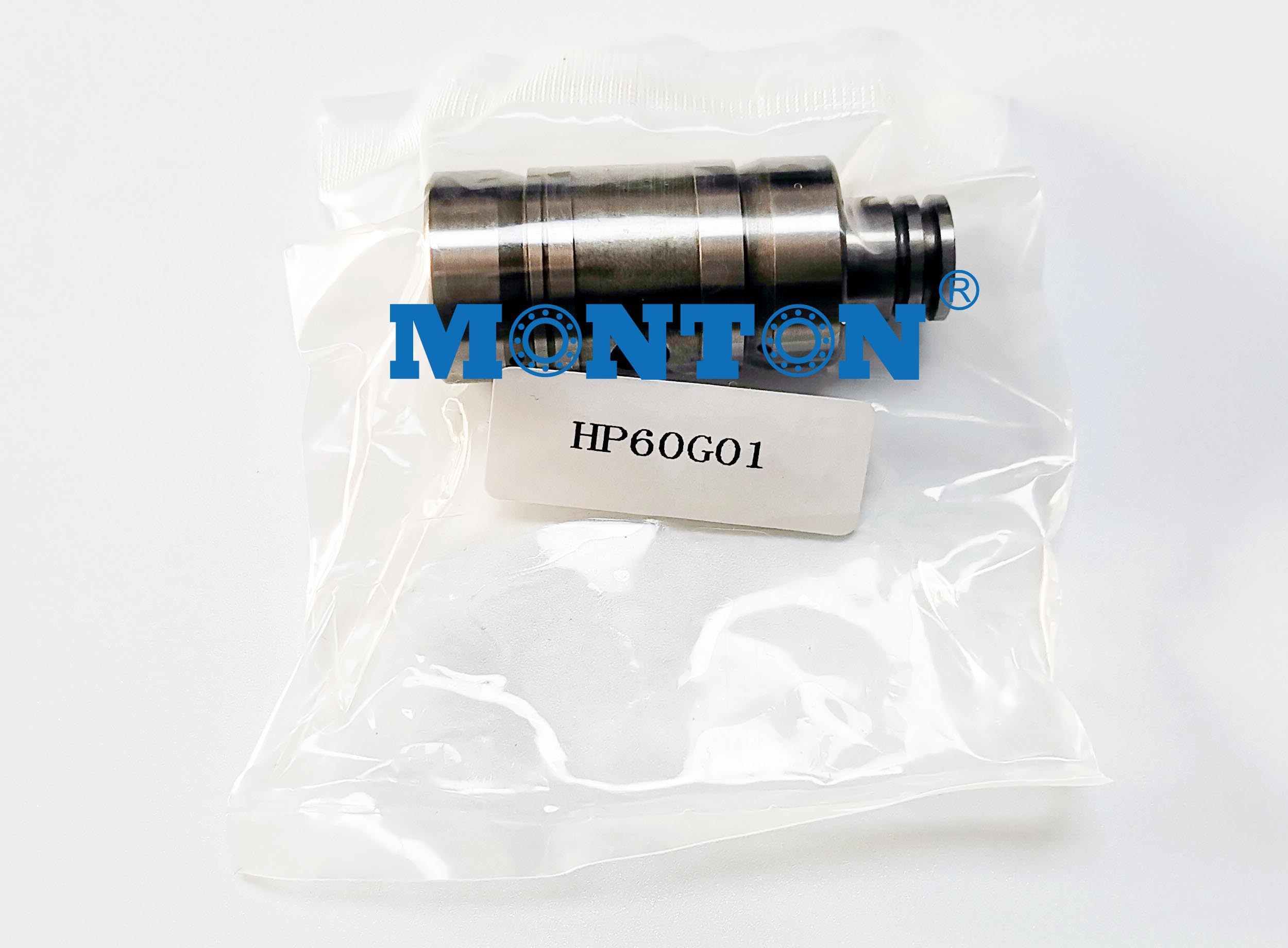

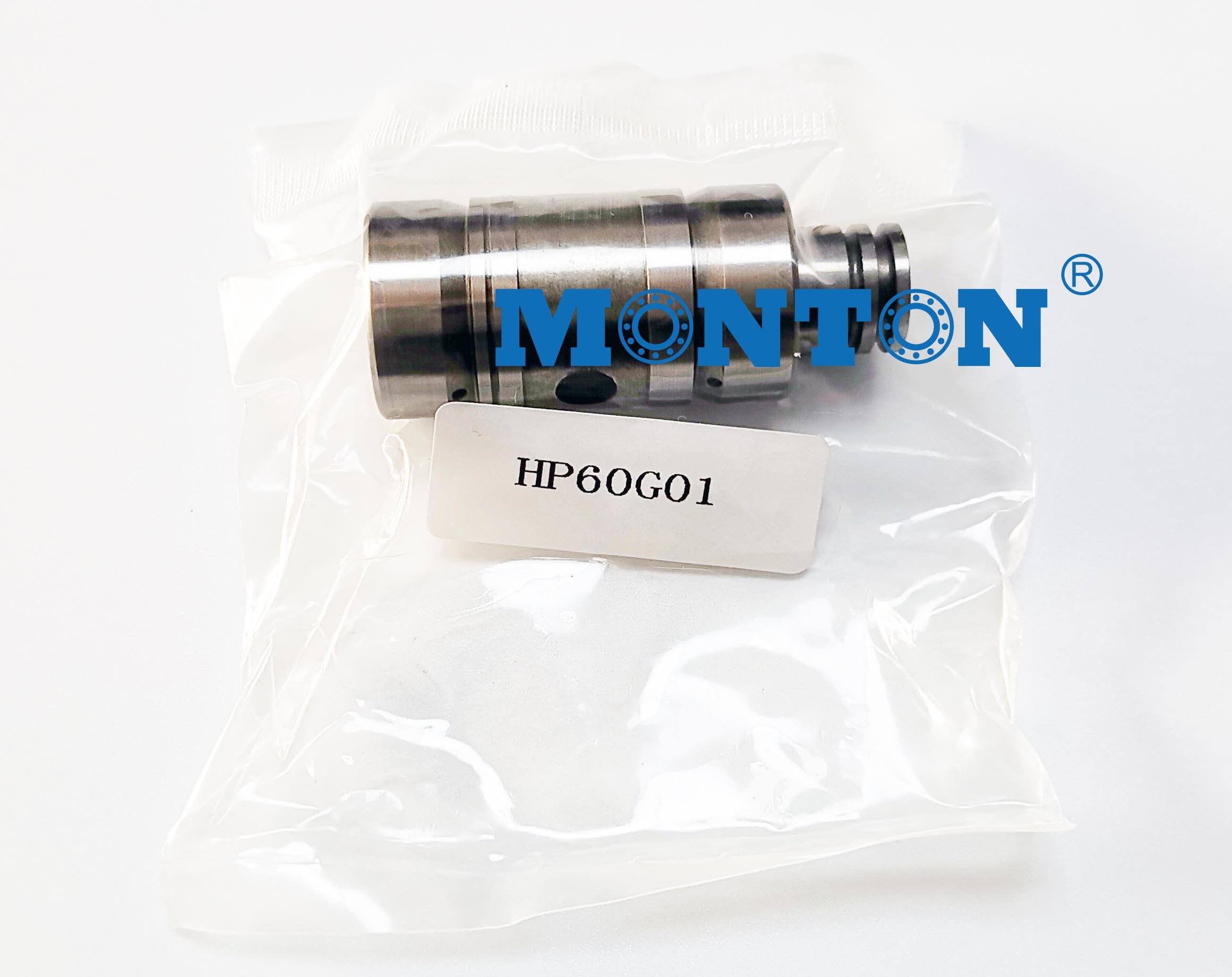

HP60G01 53.73*22*8mm Turbocharger Bearings
HP60G01 53.73*22*8mm Turbocharger Bearings
  • HP60G01 53.73*22*8mm Turbocharger Bearings
  • HP60G01 53.73*22*8mm Turbocharger Bearings
  • HP60G01 53.73*22*8mm Turbocharger Bearings

HP60G01 53.73*22*8mm Turbocharger Bearings

Product Details:
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: HP60G01
Detail Information
Place of Origin:
CHINA
Brand Name:
MONTON
Certification:
ISO9001
Model Number:
HP60G01
Number Of Row:
Single Row
Precision Rating:
P0 P6 P5 P4 P2
Seals Type:
Open
Structure:
Ball Beairng
Type:
Ball
Application:
Machine Parts,Air Compressor,Reducer,Pump
Sample:
Avaliable
Package:
Standard Package
Vibration:
V1 V2 V3 V4
Clearance:
C4
Trading Information
Minimum Order Quantity:
1
Price:
Ask
Packaging Details:
Singlebox
Delivery Time:
7-35 days
Payment Terms:
T/T
Supply Ability:
10000PCS/WEEK
Product Description

HP60G01 53.73*22*8mm Turbocharger Bearings

HP60G01 53.73*22*8mm Turbocharger Bearings 0

MFG Code : HP60G01

Bearing Type : Ball

For Load Direction: Combined Radial and Thrust

Construction :Single Row

System of Measurement Metric

Seal Type Open

For Shaft Diameter 8mm

Bore Dia : 8mm

Bore Dia Tolerance : 0 to -0.004mm

For Housing ID :22mm

Outer Dia :22mm

Outer Dia Tolerance: 0 to -0.004mm

Width :53.73mm

Width Tolerance: -0.04mm to +0.04mm

Ring Material :M50 Steel

Ball Material SAINT-GOBAIN Ceramic Balls

Cage Material VICTREX PEEK Polymers

ABEC Rating ABEC9 (P2)

Max Speed (RPM) 150000

Lubrication Required

Lubricant Grease

Shaft Mount Type Press Fit

Temperature Range : -60 to 300 ℃

RoHS Compliant

Application GT25R.28R.30R.35R,GT28,GT30,GT35

HP60G01 53.73*22*8mm Turbocharger Bearings 1
HP60G01 53.73*22*8mm Turbocharger Bearings 2
HP60G01 53.73*22*8mm Turbocharger Bearings 3
