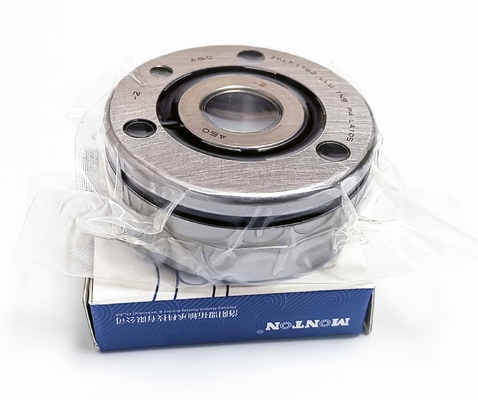

ZKLN3072-2RS 30*72*38mm Angular Contact Ball Bearing High Speed Flange Sleeve Bearing For Machine tool spindle

1
MOQ
USD
Price
ZKLN3072-2RS 30*72*38mm Angular Contact Ball Bearing High Speed Flange Sleeve Bearing For Machine tool spindle
Features Gallery Product Description Request A Quote
Features
Specifications
Number Of Row: Single Row
Precision Rating: P0 P6 P5 P4 P2
Seals Type: Sealed
Structure: Angular Contact,Ball Beairng
Type: Ball
Material: Bearing Steel
Service: Great
Feature: Long Life,High Speed
Application: Machine Parts
Sample: Avaliable
Name: Angular Contact Ball Bearing
Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: ZKLN3072-2RS
Payment & Shipping Terms
Packaging Details: Singlebox
Delivery Time: 7-35 days
Payment Terms: T/T
Supply Ability: 10000PCS/WEEK
Product Description

ZKLN3072-2RS 30*72*38mm Angular Contact Ball Bearing High Speed Flange

Sleeve Bearing For Machine tool spindle ​



Designation Dimensions Mounting dimensions Basic load ratings
axial
Recommended precision locknut Required locknut force3)
axial
N
Mass
m
= kg
d D
–0,010
B
–0,25
d1 r
min.
r1
min.
Da
max.
da
min.
dyn. Ca
N
stat.
C0a N
For radial locking For axial locking Tightening torque4)
MA
Nm
ZKLN3072-2RS 30 72 38 51 0.3 0.6 64 47 65000 108000 ZMA30/52 AM30 65 19509 0.72



Product Description

ZKLF1255-2RS-XL Axial Angular Contact Bearing

These bearings are designed for the highly dynamic operating conditions in screw drives that require high accuracy, high load carrying capacity, high rigidity, low friction and maintenance-free or low-maintenance.

The bearings can support both radial forces and high axial forces due to the 60� contact angle.

The ZKLF bearing range are designed to be screw mounted directly on the adjacent construction or in a radial locating bore.


  • Double direction

  • Lip seals on both sides


    ZKLN3072-2RS 30*72*38mm Angular Contact Ball Bearing High Speed Flange Sleeve Bearing For Machine tool spindle 0
