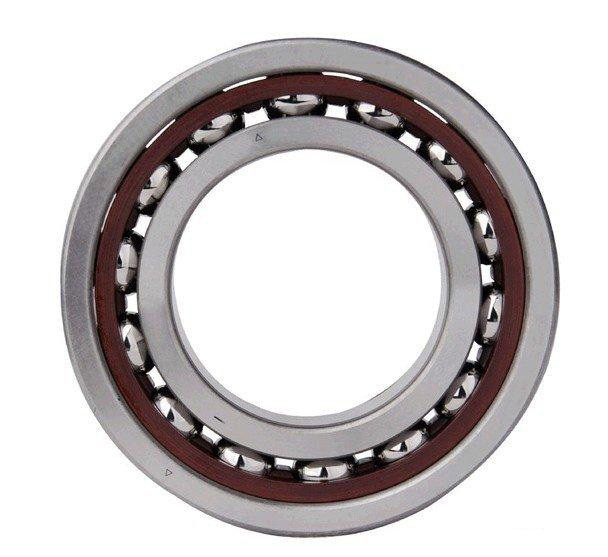

35tac72b High precision spindle ball screw bearing Japan nsk

1
MOQ
USD
Price
35tac72b High precision spindle ball screw bearing Japan nsk
Features Gallery Product Description Request A Quote
Features
Specifications
Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: 35tac72b
Payment & Shipping Terms
Packaging Details: Singlebox
Delivery Time: 7-35 days
Payment Terms: T/T
Supply Ability: 10000PCS/WEEK
Product Description



Axial angular contact ball bearings 35TAC72B
Bearing number : 35TAC72B

Size (mm) : 35x72x15

Brand : MONTON

Bore Diameter (mm) : 35

Outer Diameter (mm) : 72

Width (mm) : 15

Angle (α) - 60 °

d1 - 47 mm

d2 - 55 mm

r min. - 1 mm

r1 min. - 0,6 mm

D1 - 55 mm

D2 - 60,7 mm

Weight - 0,31 Kg

(Grease) Lubrication Speed - 3 600 r/min

(Oil) Lubrication Speed - 5 000 r/min



TAC B series bearings incorporate NSK’s recently developed molded polyamide resin cage. In addition, using extra-pure (EP) steel for the inner and outer rings has further enhanced service life. The axial rigidity is high because of a large number of balls and a contact angle of 60˚. Compared with tapered roller bearings of cylindrical roller bearings, this type has lower starting torque; so smoother rotation is possible
with less driving force.



35tac72b High precision spindle ball screw bearing Japan nsk 0
